24xNEMA 5–20R, 100-240V, 50/60Hz, 30A, 55.8 x 48.2 x 1663.7mm, 7.8kg, Black
CyberPower PDU81102. PDU types: Metered, Monitored, Switched, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: NEMA 5–20R, Power plug: NEMA L5-30P. Cable length: 3.3 m, Certification: UL 60950-1, FCC Class A. Supported network protocols: HTTP, HTTPS, SNMP v1, SNMP v3, SNMP, MIB, SMTP, SMTPS, TLS v1.1, SSL, Telnet, SSH v2, FTP, DNS,..., Firmware upgradeable via: USB. Nominal input voltage: 100 - 120 V, Maximum current: 30 A, AC input frequency: 50 - 60 Hz
Product Overview

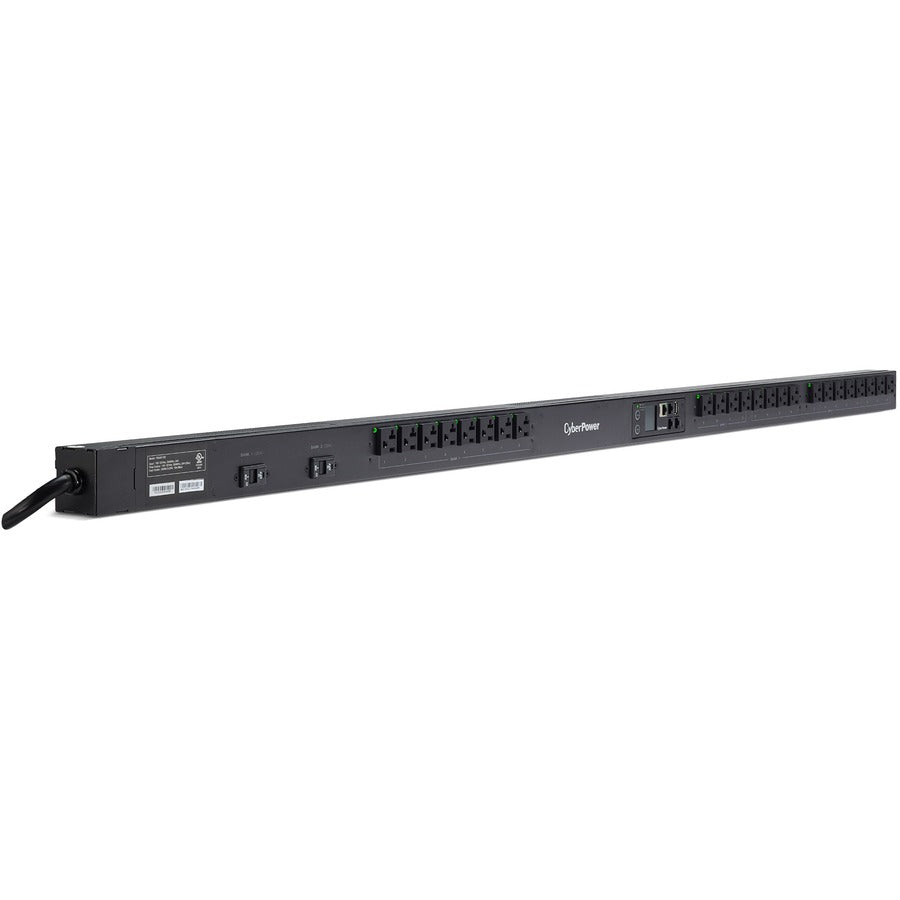

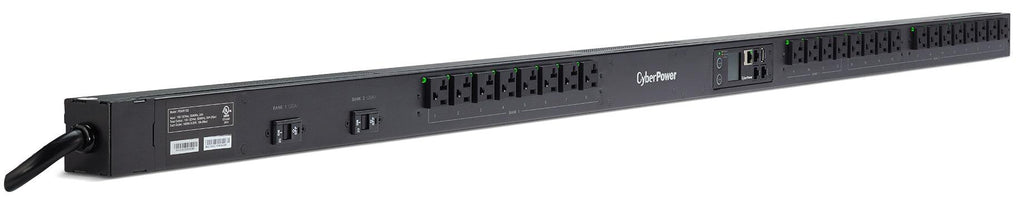

Streamline capacity planning and power management with the CyberPower PDU81102 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more. The PDU81102 supports inputs between 100-120V and includes 24 NEMA 5-20R outlets. Other features include a rack mount design (0U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81102 is protected by a three-year limited warranty.
Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
Switch-Free Design
Safeguards against accidental power shut down.
Switchable Outlets
Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.
Per Outlet Power Metering
Provides information on the amount of power being drawn from each outlet, each circuit and the PDU as a whole.
CyberPower Management Console
A hardware interface built into Monitored and Switched PDUs. Its functionality includes the ability to switch PDU outlets on and off, reboot connected equipment locally or remotely, schedule power cycling of attached equipment, and perform other tasks, such as load monitoring and event logging
Remote and Local Monitoring
Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.
Automatic Event Notifications
Provide immediate updates about power events via email, SMS text, or SNMP traps.
Upgradeable Firmware
Downloadable improvements (firmware updates) to programs that run the PDU.
Digital Display
Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it’s needed.
Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
