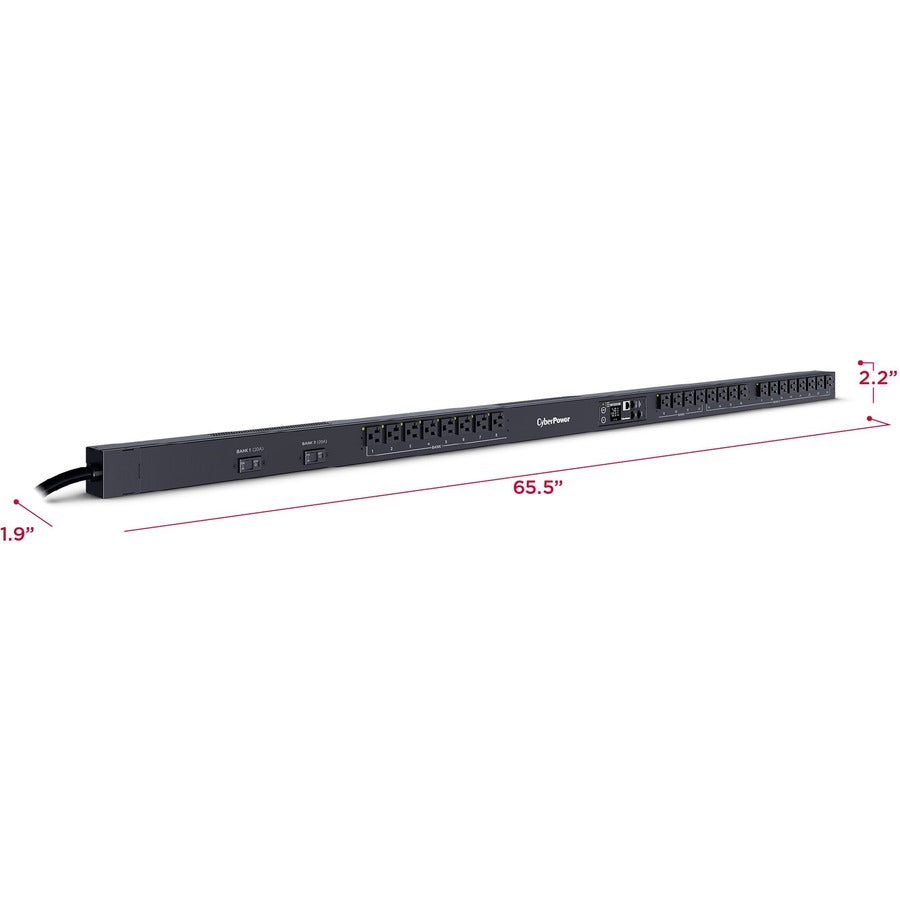

NEMA 5-20R, NEMA L5-30P, Metal, RJ45, 56 x 1664 x 48 mm, 7.8 kg, 3 m
CyberPower PDU41102. Rack capacity: 0U, Mounting: Vertical, Housing material: Metal. AC outlets quantity: 24 AC outlet(s), AC outlet types: NEMA 5-20R, Power plug: NEMA 5–20R. Cable length: 3 m. Supported network protocols: IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL,.... Maximum current: 30 A, AC input frequency: 50 - 60 Hz, Nominal output voltage: 100 - 120 V

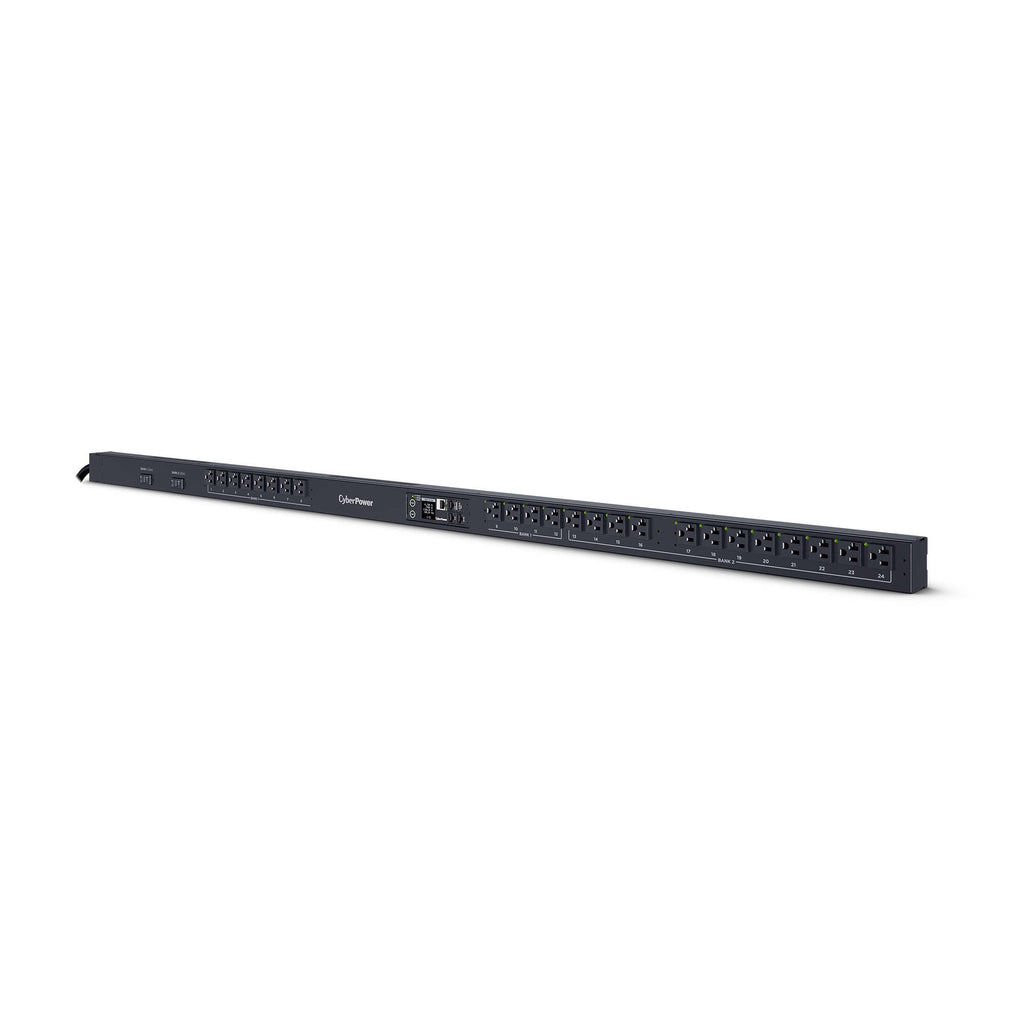

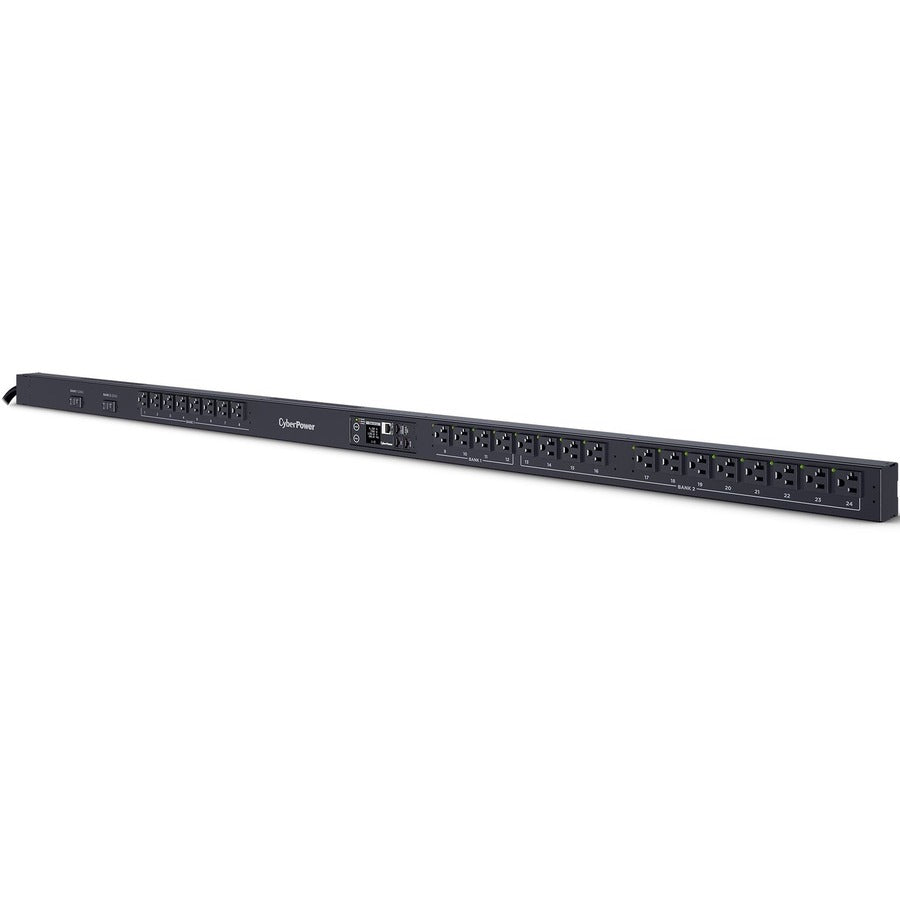

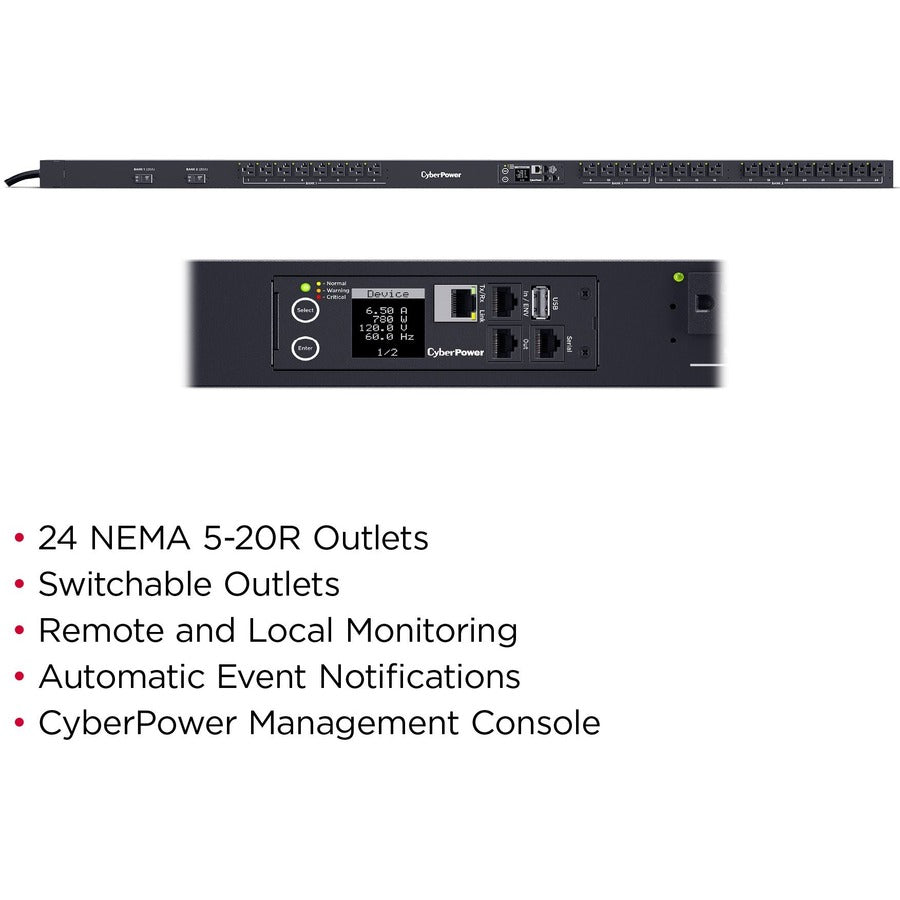

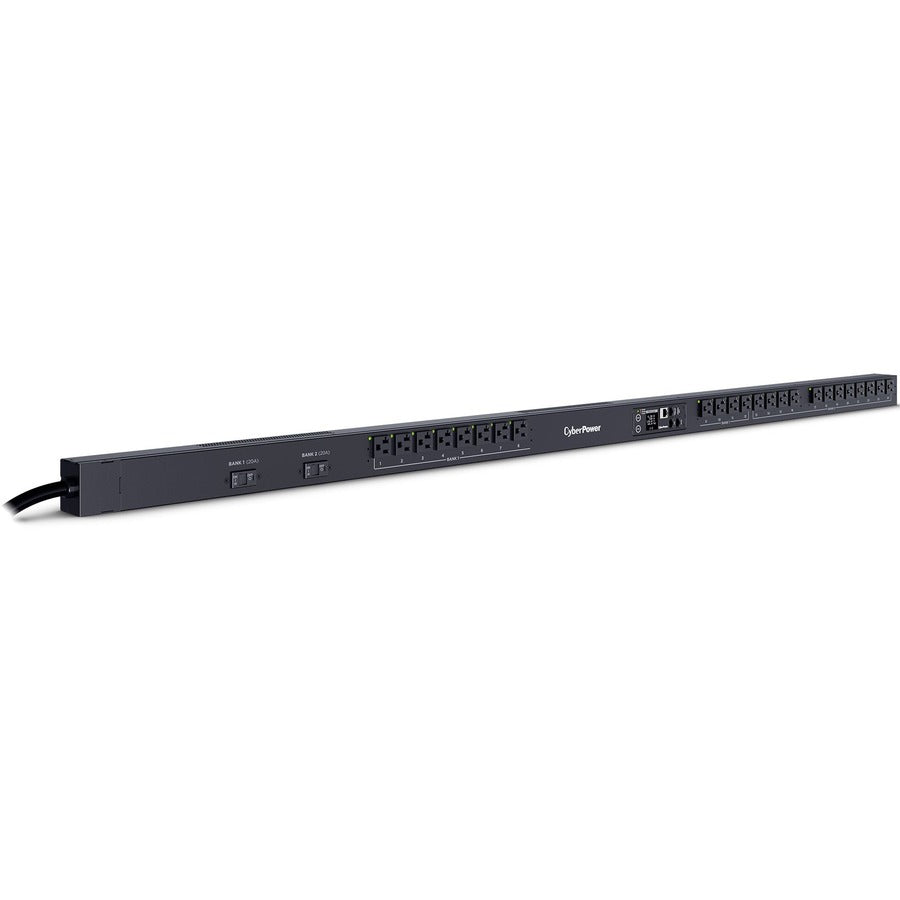

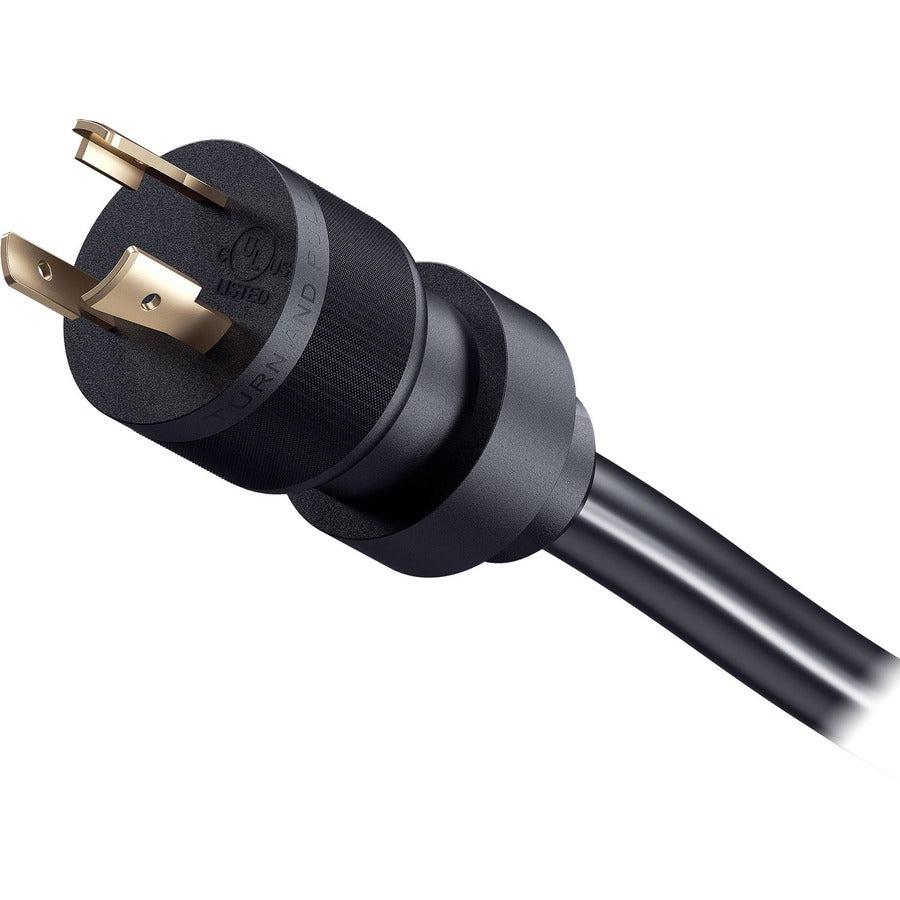

The CyberPower PDU41102, a 24-outlet (front), 0U rackmount switched power distribution unit (PDU), provides 120V 30A output. It distributes power to 24 NEMA 5-20R receptacles from a single NEMA L5-30P plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
Outlets can be turned on, turned off, or cycled on demand or at programmed times to address a number of needs including remote rebooting of locked equipment, load shedding, power sequencing, and locking out unauthorized loads. The PDU41102 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
Power Distribution Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
Switchable Outlets Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.
Remote and Local Monitoring The user is able to track PDU vitals both offsite and onsite. It also provides control to turn on/off individual outlets or circuits.
Automatic Event Notifications Provide immediate updates about power events via email, SMS text, or SNMP traps.
CyberPower Management Console Built into Switched PDUs, a CyberPower Management Console is a hardware interface. Users can remotely switch individual PDU outlets or circuits on and off, either immediately or on a schedule, in order to power cycle connected equipment. It monitors the incoming power and power draw from the PDU, sends notifications based on the power status, and logs events.

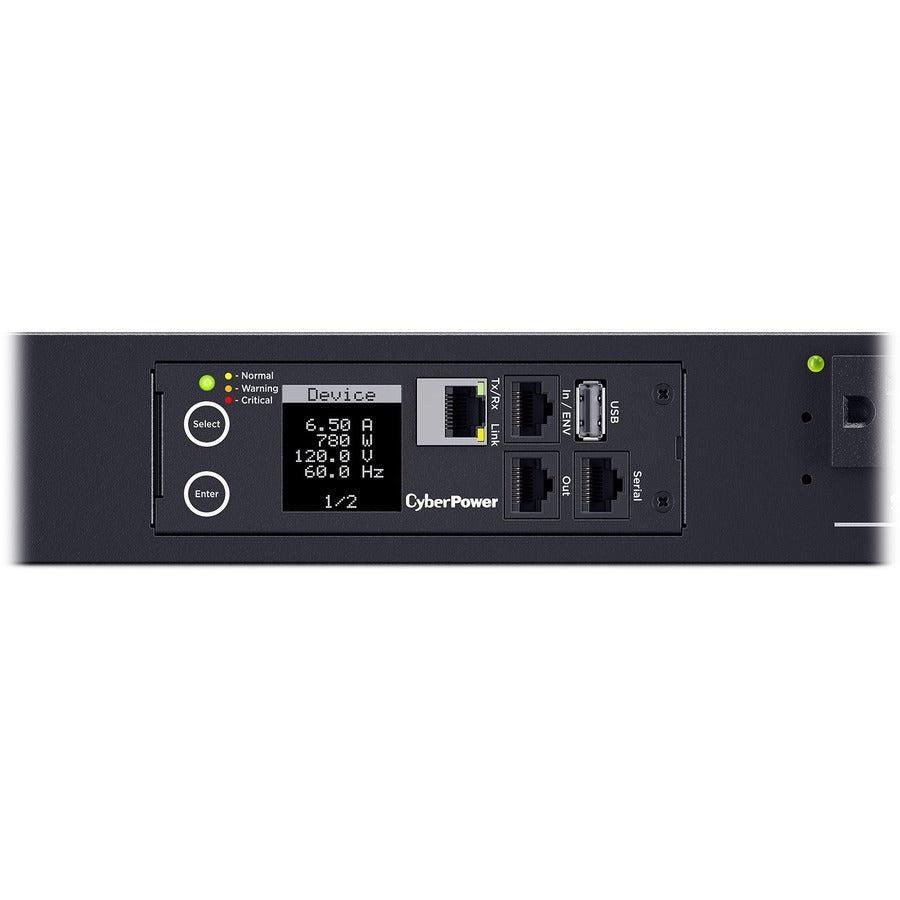

Digital Display Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.
Upgradeable Firmware Downloadable improvements (firmware updates) to programs that run the PDU.
Switch-Free Design Safeguards against accidental power shutdown.
Network-Grade Plugs and Outlets Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
Long Input Power Cord Reaches distant power sources, allowing the PDU to be placed where it’s needed.
Cord Retention Tray Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
Configurable Mounting Brackets Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
Durable Metal Housing Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
