30A (Derated to 24A), 100-120Vac, 50Hz/60Hz, NEMA L5-30P, 16 NEMA 5-20R, 2U Rackmount, E-mail, SMS, Text and SNMP Trap
CyberPower PDU41003. PDU types: Switched, Rack capacity: 2U, Type: Single-phase. AC outlets quantity: 16 AC outlet(s), AC outlet types: NEMA 5–20R, Power plug: NEMA L5-30P. Cable length: 3.7 m. Nominal input voltage: 100 - 120 V, Maximum current: 30 A, AC input frequency: 50 - 60 Hz. Width: 433 mm, Depth: 112 mm, Height: 88 mm

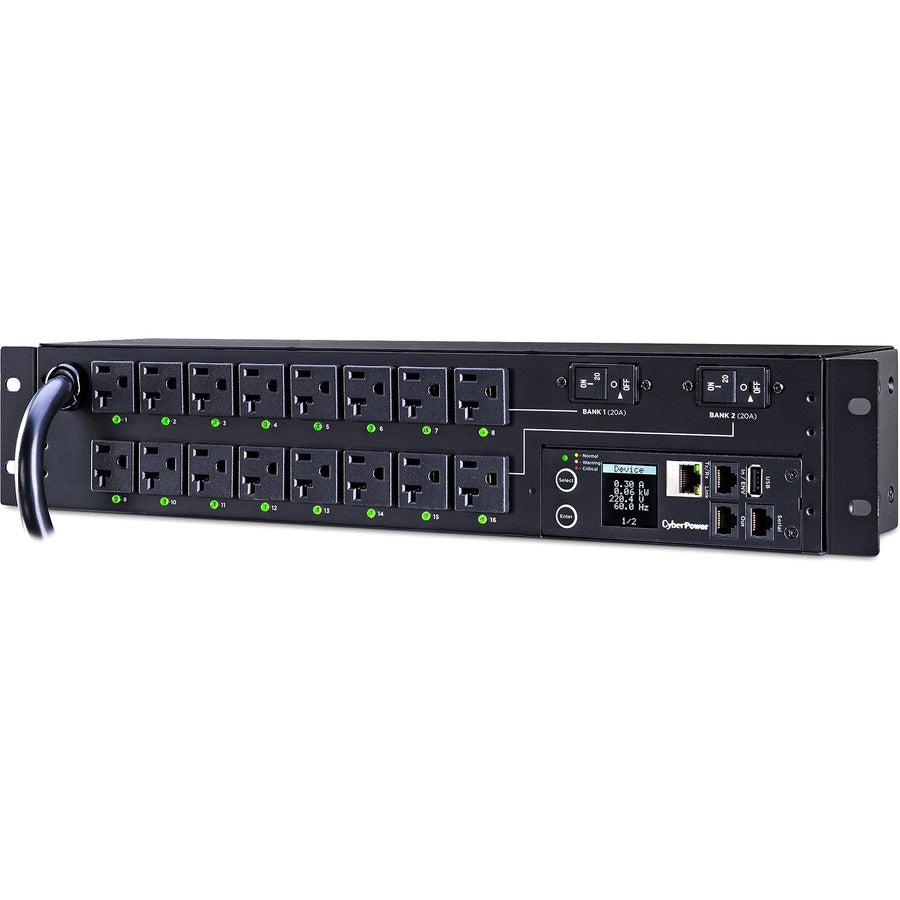

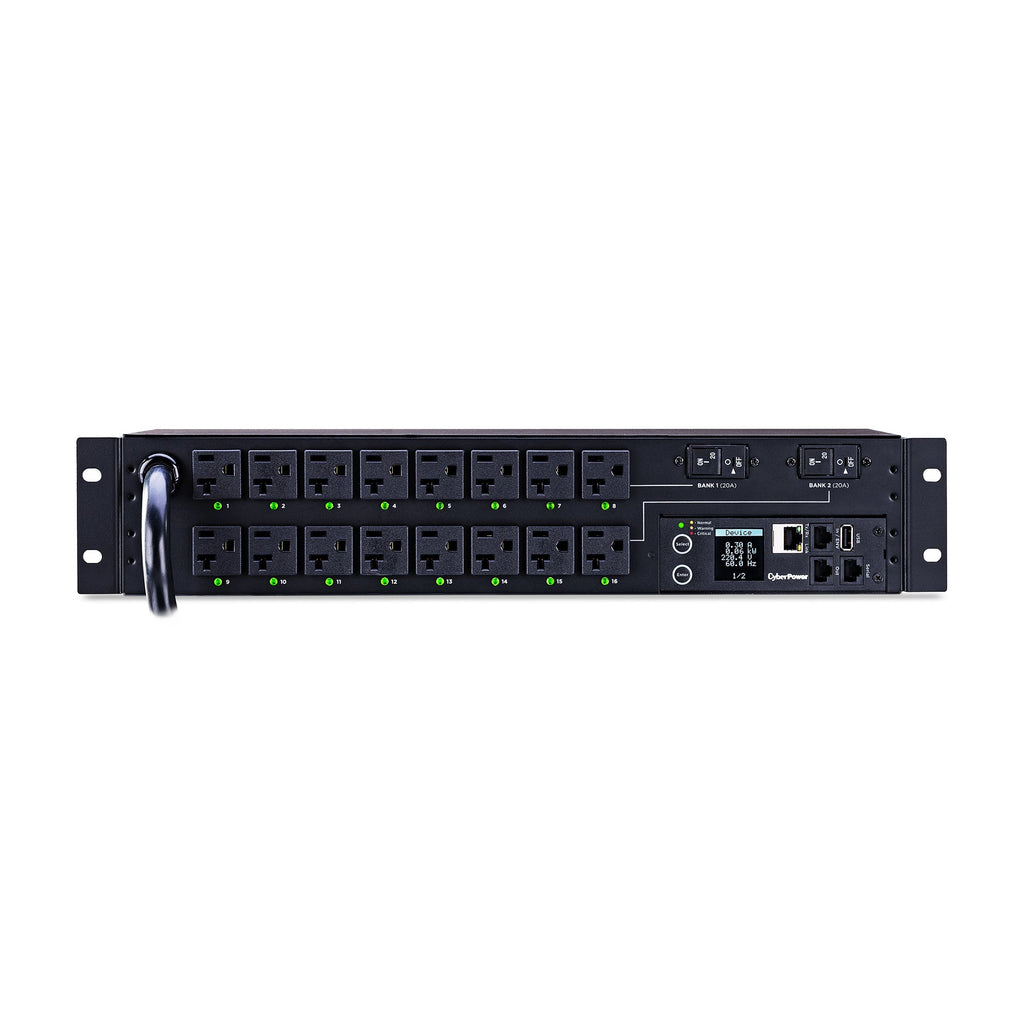

The CyberPower PDU41003, a 2U rackmount, monitored power distribution unit (PDU) provides 100-120Vac, 30A output via sixteen (16) NEMA 5-20R receptacles from a single NEMA L5-30P input power plug. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control Display.
The PDU41003 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.
Power Distribution Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
Switch-Free Design Safeguards against accidental power shutdown.
Switchable Outlets Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.
CyberPower Management Console Built into Switched PDUs, a CyberPower Management Console is a hardware interface. Users can remotely switch individual PDU outlets or circuits on and off, either immediately or on a schedule, in order to power cycle connected equipment. It monitors the incoming power and power draw from the PDU, sends notifications based on the power status, and logs events.
Remote and Local Monitoring The user is able to track PDU vitals both offsite and onsite. It also provides control to turn on/off individual outlets or circuits.
Automatic Event Notifications Provide immediate updates about power events via email, SMS text, or SNMP traps.
Upgradeable Firmware Downloadable improvements (firmware updates) to programs that run the PDU.
Power Control Display Provides up-to-date status information about the PDU and power situation and allows for local set-up and configuration.
Network-Grade Plugs and Outlets Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
Long Input Power Cord Reaches distant power sources, allowing the PDU to be placed where it’s needed.
Cord Retention Tray Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
Configurable Mounting Brackets Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
Durable Metal Housing Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
General Information
Manufacturer
CyberPower Systems, Inc
Manufacturer Part Number
PDU41003
Manufacturer Website Address
https://www.cyberpowersystems.com/
Brand Name
CyberPower
Product Series
Switched PDU
Product Model
PDU41003
Product Name
PDU41003 16-Outlets PDU
Product Type
PDU
UPC
649532614097
Network (RJ-45)
Yes
Height
3.5"
Width
17"
Weight (Approximate)
7.30 lb
Miscellaneous
Package Contents
PDU41003 PDU
2 x Mounting Brackets
12 x M4x8 Bracket Mounting Screws
6 x M5x12 Rack Mounting Screws and Washers
2 x Cord Retention Trays
12 x M3x6 Cord Retention Tray Screws
24 x Cable Ties, RJ45/DB9 Serial Port Connection Cable
