Description
4 x C19 / 16 x C13, 0U, 200/230V AC, 50/60Hz
CyberPower PDU30MVHVT20F. PDU types: Metered, Rack capacity: 0U, Mounting: Horizontal/Vertical. AC outlets quantity: 20 AC outlet(s), Power plug: NEMA L6-30P. Cable length: 3.05 m, Certification: UL60950_1 ETL CSA C22.2. Monitoring: Current. Nominal input voltage: 200-230 V, Maximum current: 30 A, AC input frequency: 50 - 60 Hz

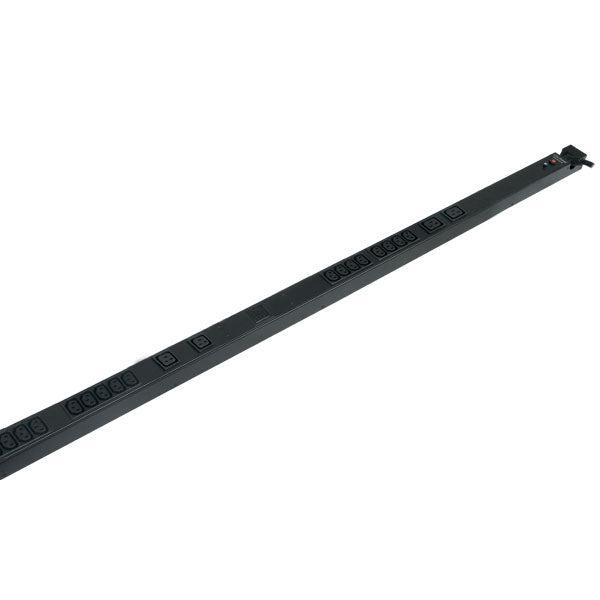

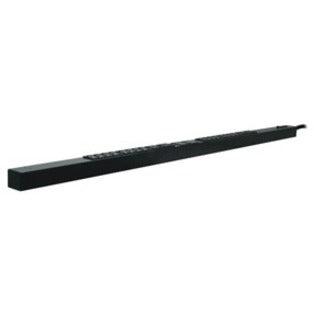

The CyberPower 20-outlet (20 Front) 0U vertical rack mount basic power distribution unit (PDU30MVHVT20F) provides 200/230V 30A output. It distributes power to 20 IEC-320 (4-C19 and 16-C13) receptacles from a single NEMA L6-30P twist lock plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front of two LCDs for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- 20 IEC-320 (4-C19 and 16-C13) output receptacles - Single NEMA L6-30P twist lock plug - 30-amp electrical capacity with dual 16-amp circuit breakers - 200/230V AC - 50/60Hz - 2 Front LCDs for real-time load monitoring - 48" 0U vertical rack mount - Rugged, industrial-grade metal housing - 10-ft. power cord
