Description

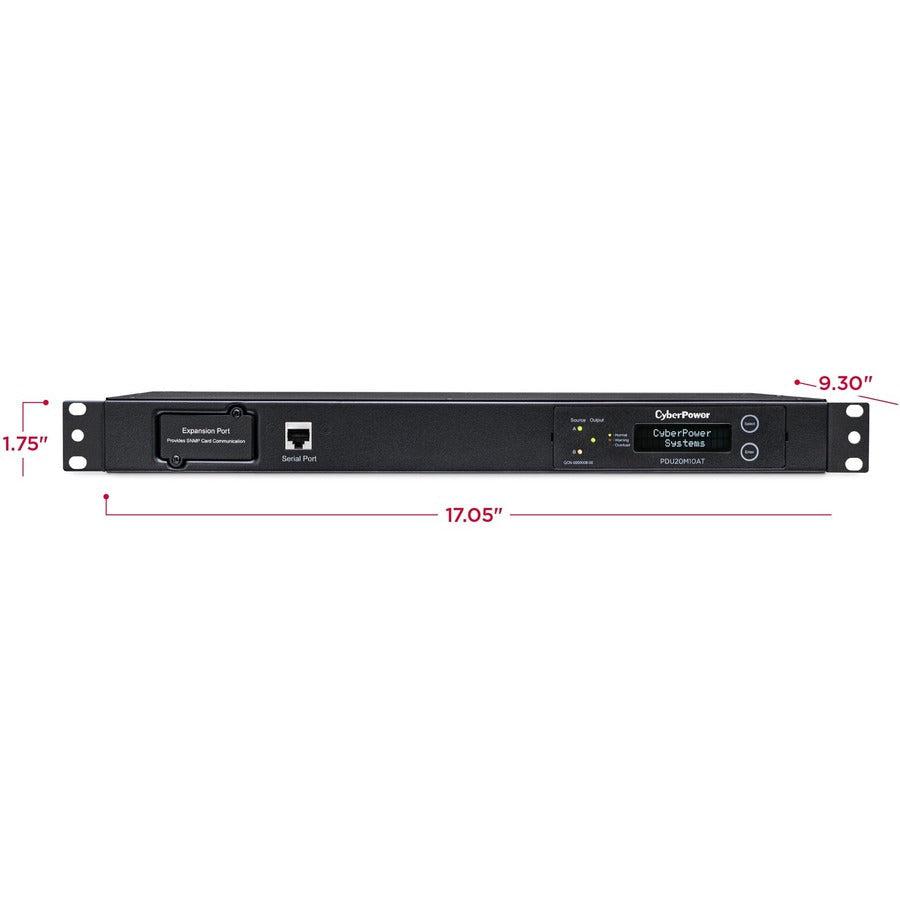

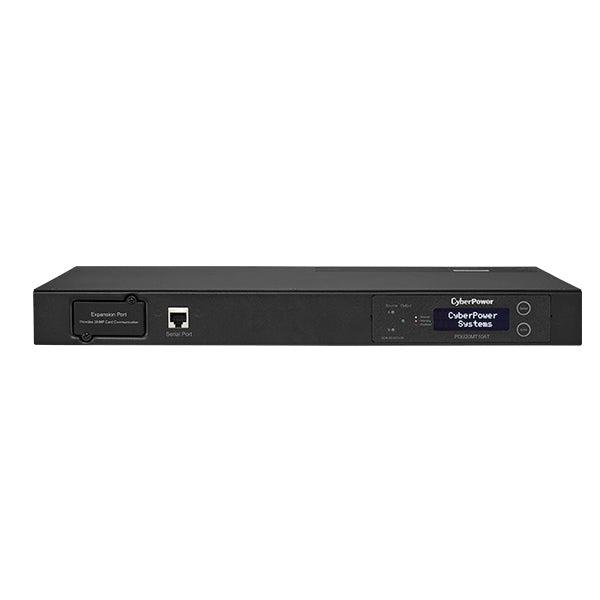

Metered ATS, NEMA L5-20P x 2, NEMA 5-20R x 10, RJ45, 1U
CyberPower PDU20MT10AT. PDU types: Metered, Rack capacity: 1U, Housing material: Metal. AC outlets quantity: 10 AC outlet(s), AC outlet types: NEMA 5–20R, Power plug: NEMA L5-20P. Cable length: 3 m, Certification: UL60950_1 certified by ETL (USA), CSA C22.2 (Canada), FCC Class A. Management platform: SNMP/HTTP. Nominal input voltage: 100 - 120 V, Maximum current: 20 A, AC input frequency: 50 - 60 Hz
The CyberPower PDU20MT10AT, 10-outlet 1U rack mount metered auto transfer switch (ATS) power distribution unit (PDU), provides 100-120V / 20A output. The PDU distributes unfiltered electrical pass-through to 10 NEMA 5-20R receptacles from redundant NEMA L5-20P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.
The LCD provides local monitoring of the PDU. Perform load management by using the display to measure the electrical current (displayed in amperes) used by connected equipment. The LCD can also display input and output voltages, to diagnose potential issues with input AC power. Active power consumption (displayed in kilowatts) and hardware and firmware versions are also viewable on the LCD screen.
The PDU20MT10AT includes a SNMP/HTTP card slot for adding an RMCARD202 or RMCARD203 (sold separately). With the addition of the SNMP card and an IP address on the network interface, users have real-time monitoring of the ATS PDU. The CyberPower Management Console provides real-time remote monitoring of PDU vitals and event logging to review historical power conditions, such as input voltages, load levels, and outlet status. Automatic event notifications can be sent to designated users when power events occur, via Email, SMS Text, or SNMP Trap.
Designed for datacenters and other demanding electrical applications, the PDU20MT10AT has a rugged, industrial-grade metal housing, a 10-foot AC power cord, and a cord retention tray. It can be mounted horizontally and is UL60950_1 and CSA C22.2 certified by ETL and FCC Class A certified. A three-year warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
