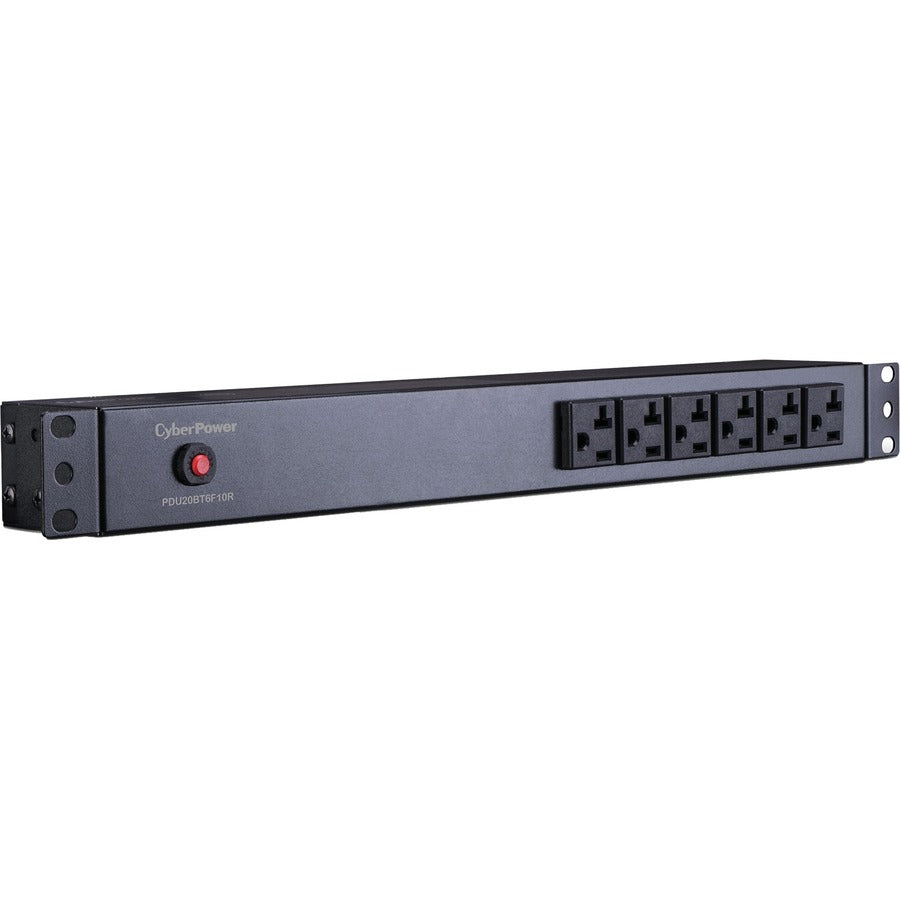

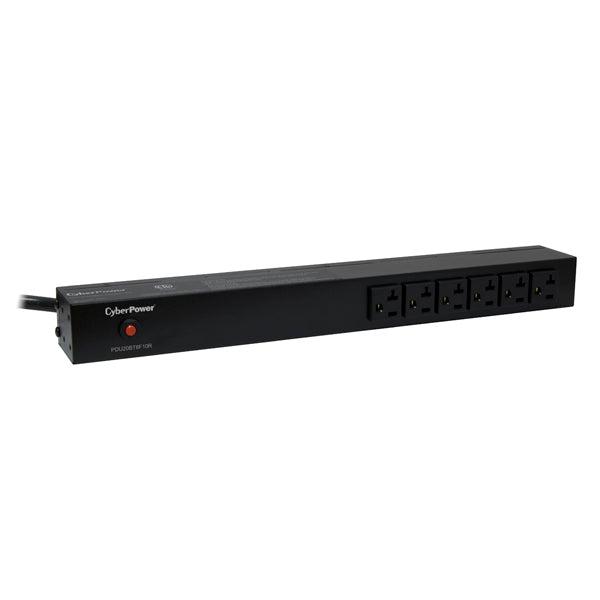

Cyberpower Pdu20Bt6F10R Power Distribution Unit (Pdu) 16 Ac Outlet(S) 1U Black

6 Front/10 Rear NEMA 5-20R, 1U, 120V AC, 50/60Hz

CyberPower PDU20BT6F10R. PDU types: Basic, Rack capacity: 1U, Mounting: Horizontal/Vertical. AC outlets quantity: 16 AC outlet(s), AC outlet types: NEMA 5–20R, Power plug: NEMA L5-20P. Cable length: 4.57 m, Certification: UL1363 ETL, CSA C22.2. Nominal input voltage: 120 V, Maximum current: 20 A, AC input frequency: 50 - 60 Hz. Weight (imperial): 2.27 kg (5 lbs), Dimensions (W x D x H) (imperial): 444.5 x 57.1 x 44.5 mm (17.5 x 2.25 x 1.75")

The CyberPower 16-outlet (6 Front and 10 Rear) rack mount basic power distribution unit (PDU20BT6F10R) provides 120V 20A output. It distributes power to 16 NEMA 5-20R receptacles from a single NEMA L5-20P twist lock plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.

- 16 NEMA 5-20R output receptacles (6 Front/10 Rear)
- Single NEMA L5-20P twist lock plug
- 20-amp electrical capacity with circuit breaker
- 120V AC - 50/60Hz
- 1U rack mount
- 15-ft. power cord
