2200VA, 1800W, NEMA L5-30P In, 6 x NEMA 5-20R & 1 x L5-20R, Phone / Network Protection

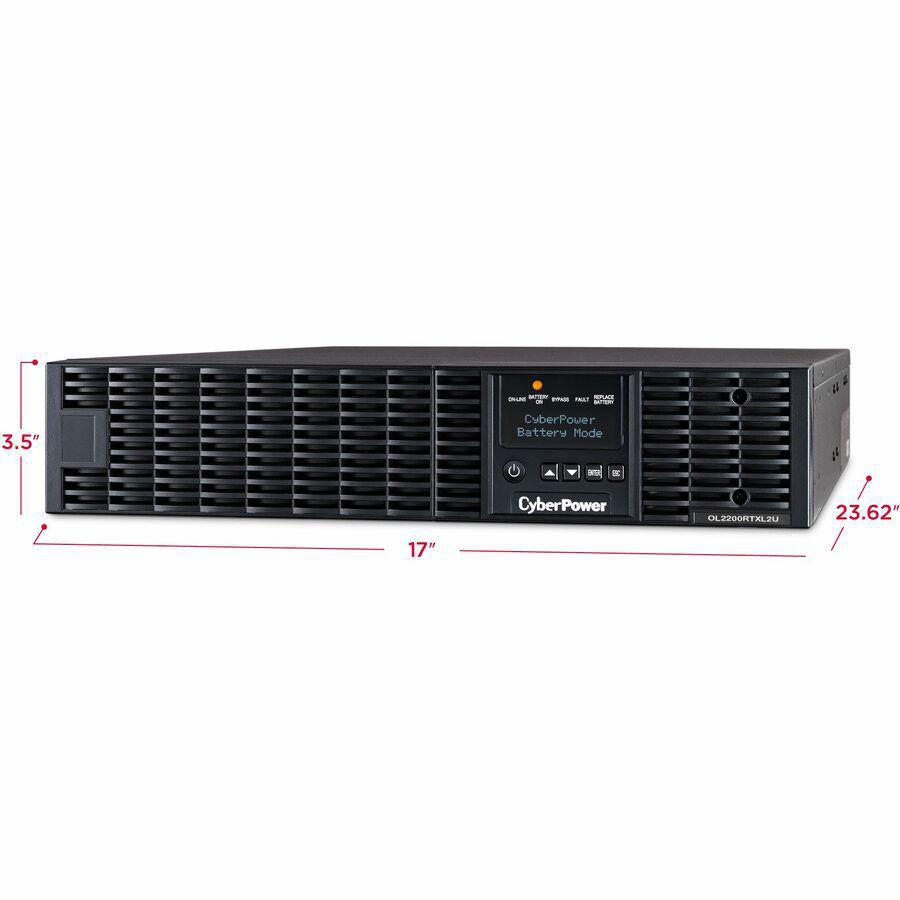

CyberPower OL2200RTXL2U. Output power capacity: 2.2 kVA, Output power: 1800 W, Waveform: Sine. AC outlet types: NEMA 5–20R,NEMA L5-20R, Power plug: NEMA L5-30P, AC outlets quantity: 7 AC outlet(s). Battery technology: Silver-Oxide (S), Battery capacity: 9 Ah, Battery voltage: 12 V. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Steel. Width: 433 mm, Depth: 600 mm, Height: 88 mm
Smart App Online UPS | Network, Servers and Datacenter

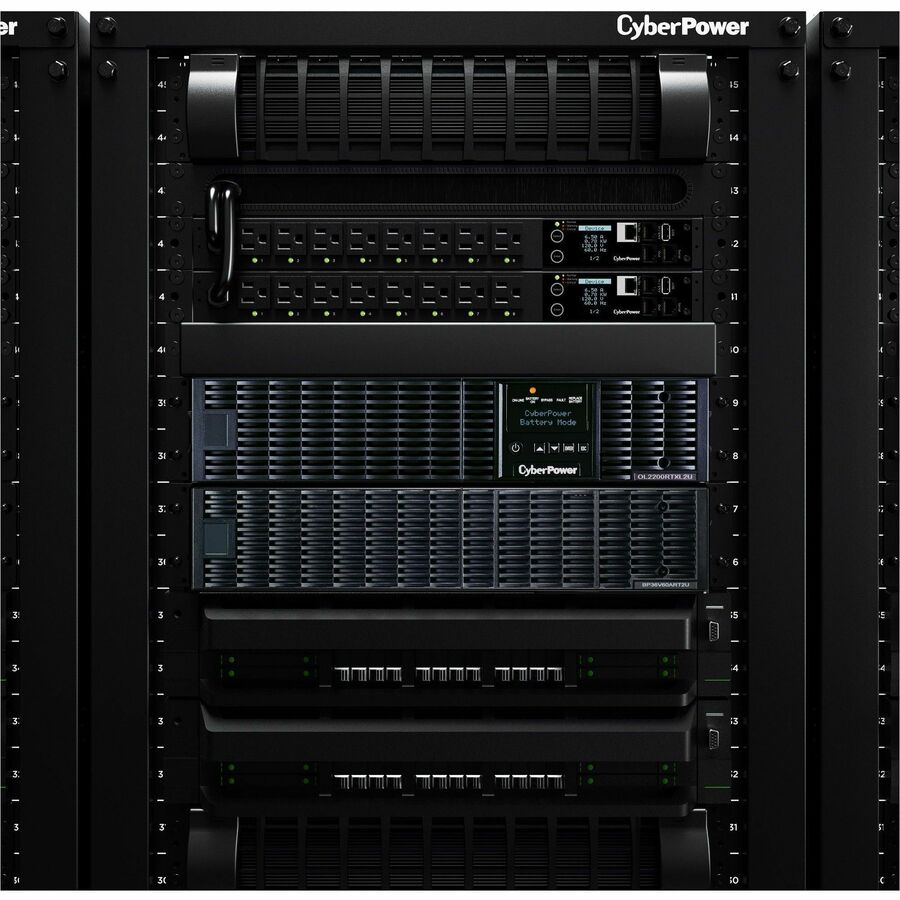

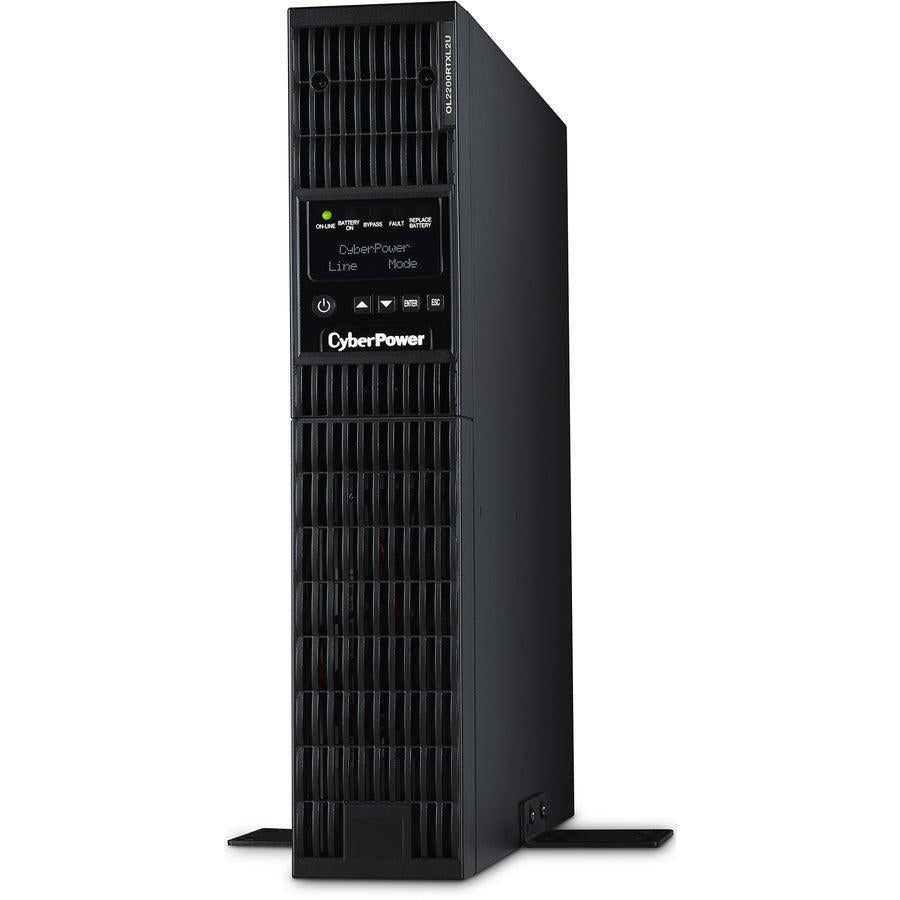

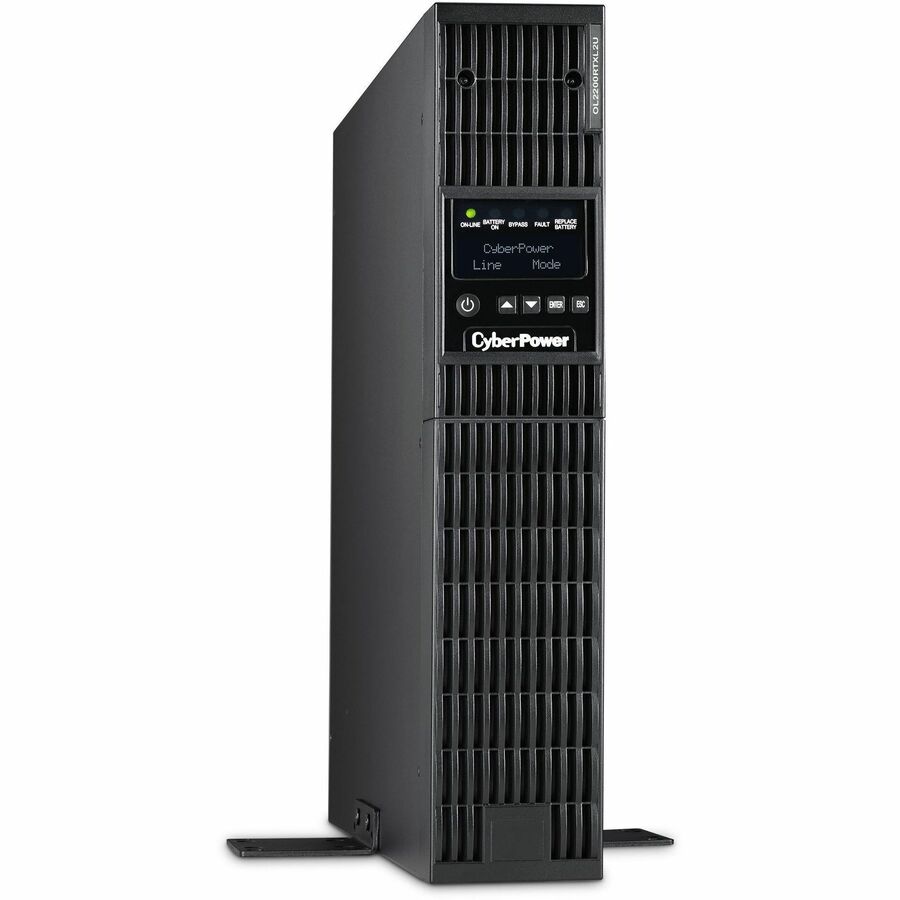

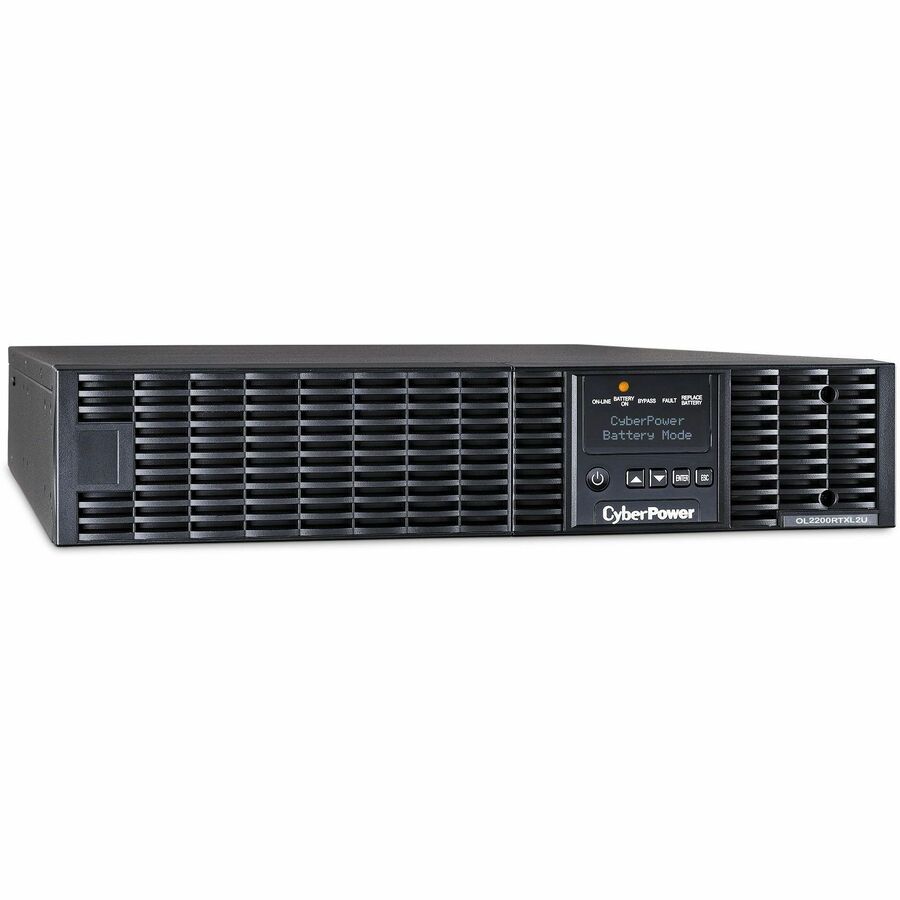

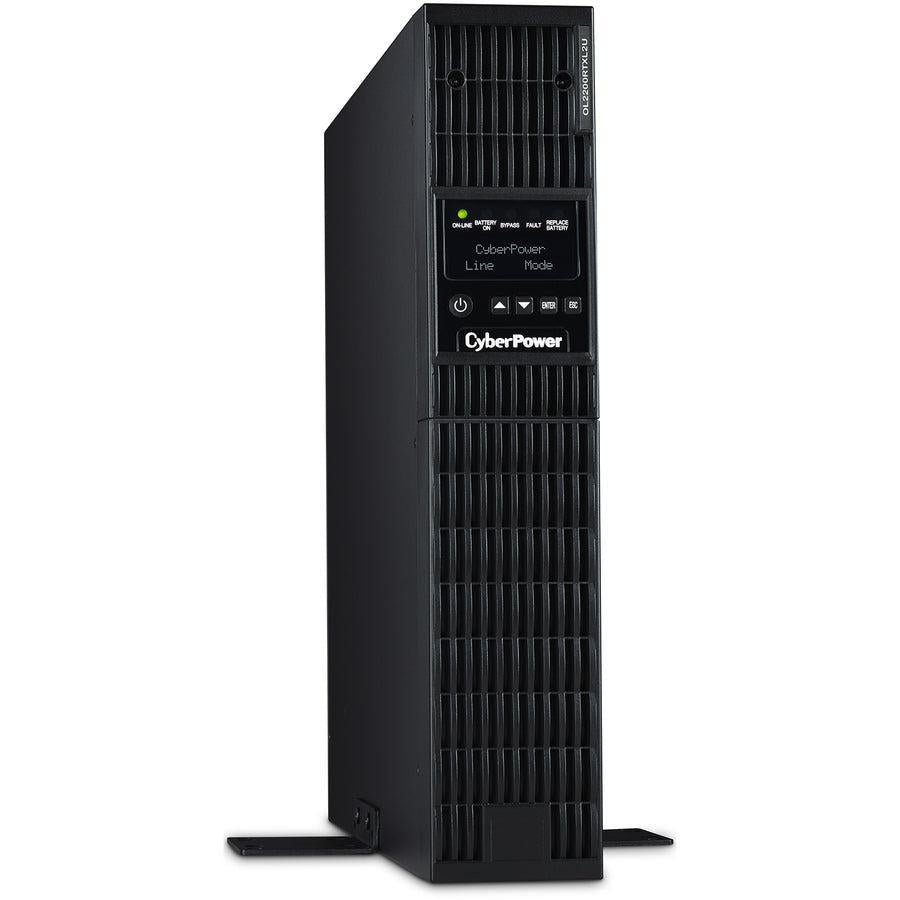

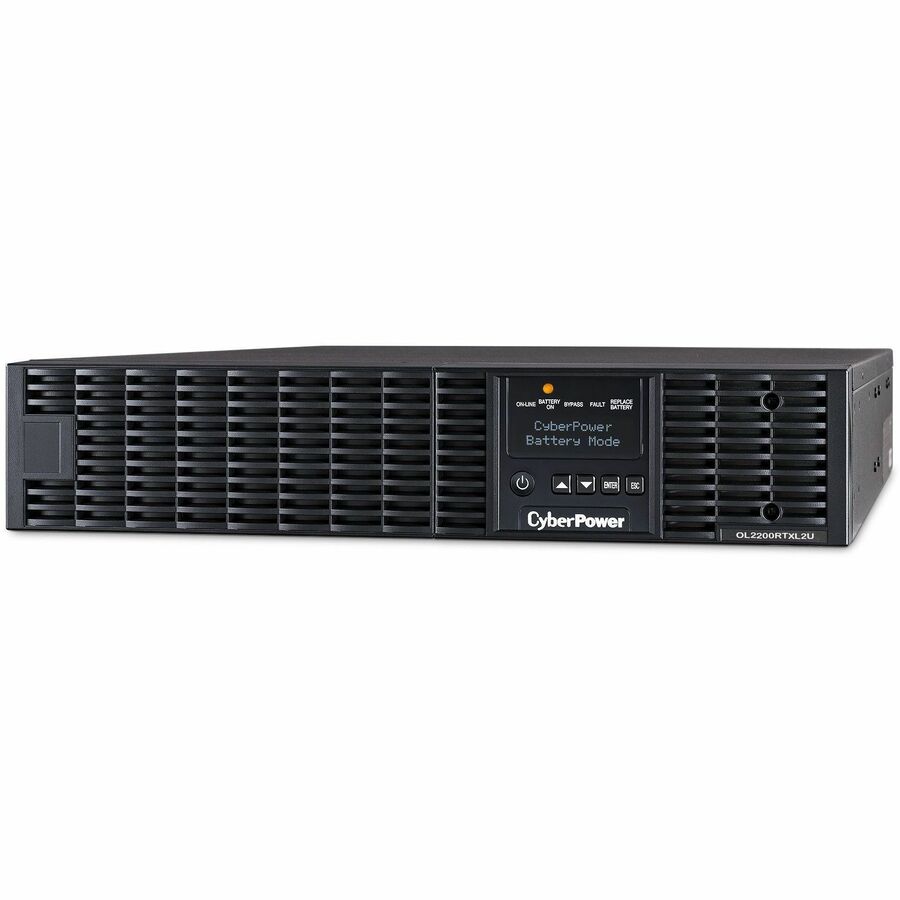

The CyberPower Smart App Online OL2200RTXL2U rack/tower uninterruptible power supply (UPS) with LCD Control Panel and pure sine wave output safeguards mission-critical servers, data center and telecom equipment, VoIP and internetworking hardware that require seamless power correction. Its Double-Conversion topology is generator compatible and delivers consistent and clean AC power with zero transfer time, protecting connected equipment and preventing costly business interruptions. Auto-bypass insures connected equipment continues to operate seamlessly when an overload or internal fault is detected.
Configurable GreenPower UPS ECO Mode improves UPS efficiency to 93% and reduces electrical and cooling costs. Smart Battery Management (SBM) uses a 3 cycle charging mode to improve battery life while reducing heat being generated.
The LCD control panel provides 43 different settings to check status and customize the operating parameters for the OL2200RTXL2U, plus it can be removed and mounted separately from the UPS for ease of use regardless of where the UPS is installed. Functions include menus for checking power status on (19) different parameters, (23) settings for setup, control and testing of the UPS and (1) selection for event logging. With a DB26 cable (sold separately) the LCD control panel can be removed from the UPS and relocated up to 10ft. away from the UPS for ease of viewing when installed in hard to reach locations.
The UPS incorporates microprocessor-based fully digital control and includes PowerPanel® Business Edition providing the user unsurpassed flexibility and control. An optional SNMP/HTTP Remote Management adapter (RMCARD302) supports remote management and control of the OL2200RTXL2U through a standard web browser.

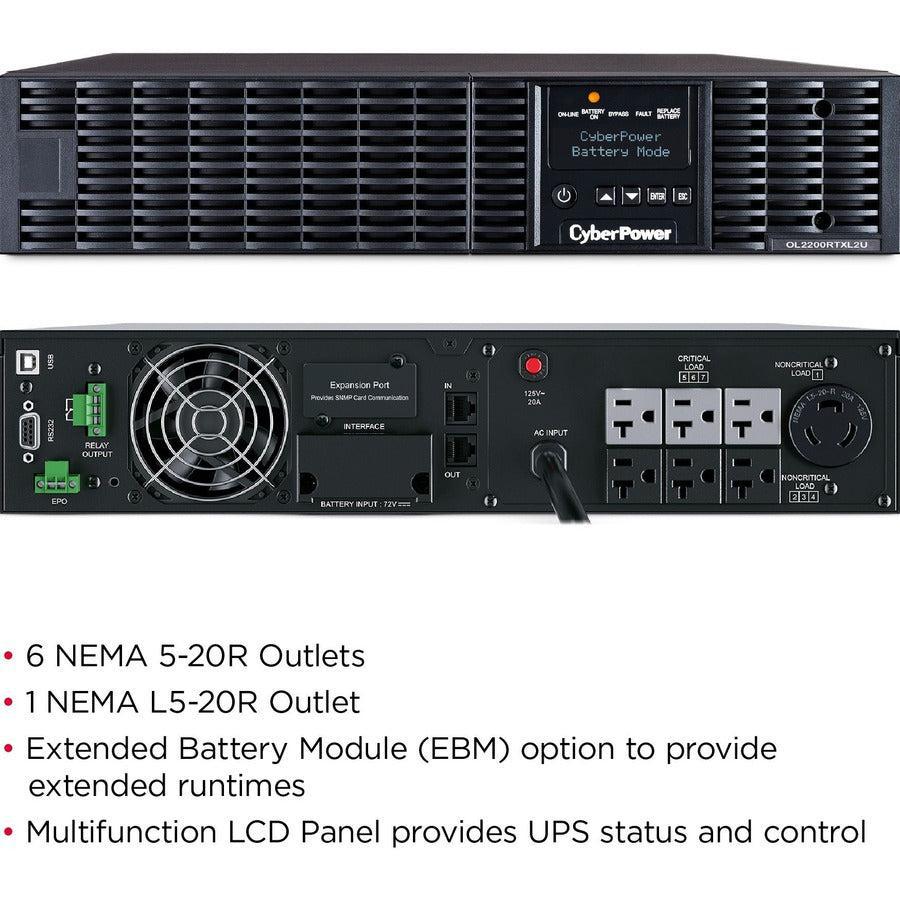

The OL2000RTXL2U unit has a capacity of 2,200VA/1,800Watts (0.82 power factor) that can be configured for an output of 100V, 110V, 115V, 120V and 125V +/- 2%. It features seven (7) outlets with six (6) NEMA 5-20R and one (1) NEMA L5-20R receptacles and maintenance-free, hot swappable, user-replaceable batteries. This unit offers connectivity via one (1) HID USB, one (1) DB9 serial and one (1) emergency power off (EPO) port. Network grade surge suppression and EMI/RFI filters increase the immunity of the load to noise disturbances. The runtimes are expandable by adding a hot-swappable, user replaceable BP72V60ART2U Extended Battery Module (EBM).
A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $400,000 Connected Equipment Guarantee.
