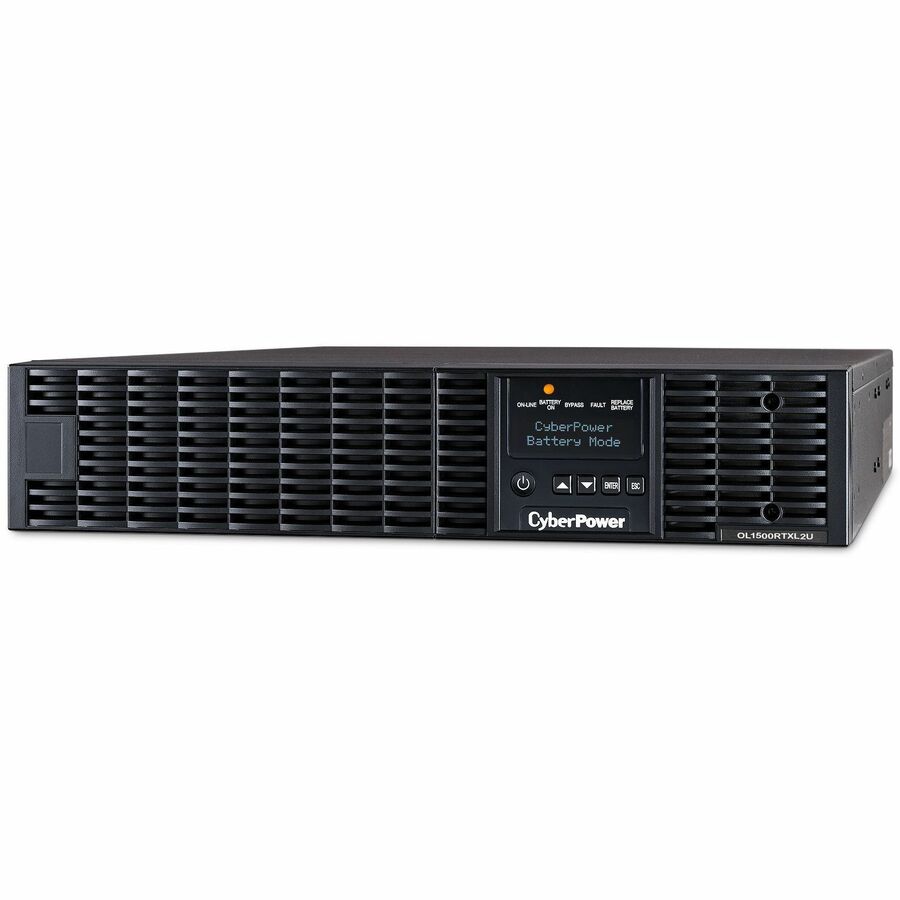

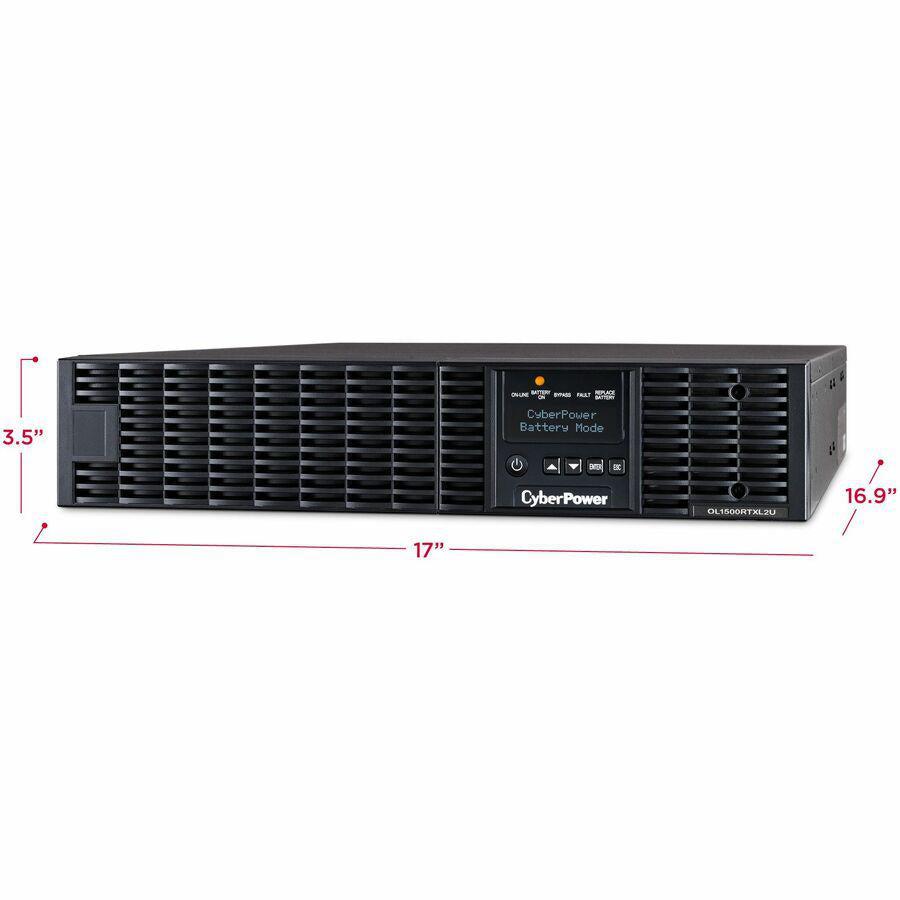

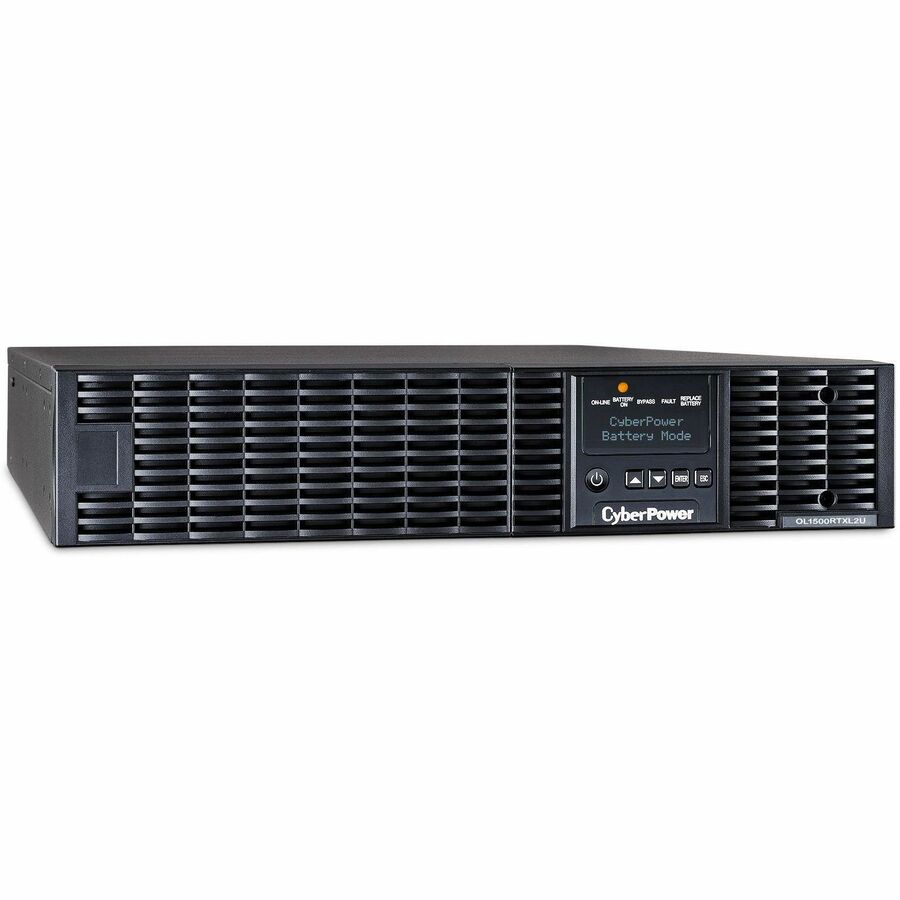

CyberPower OL1500RTXL2UN. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1350 W. AC outlet types: NEMA 5–15R, Power plug: NEMA 5-15P, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery capacity: 12 VAh. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Steel. Width: 433 mm, Depth: 430 mm, Height: 88 mm

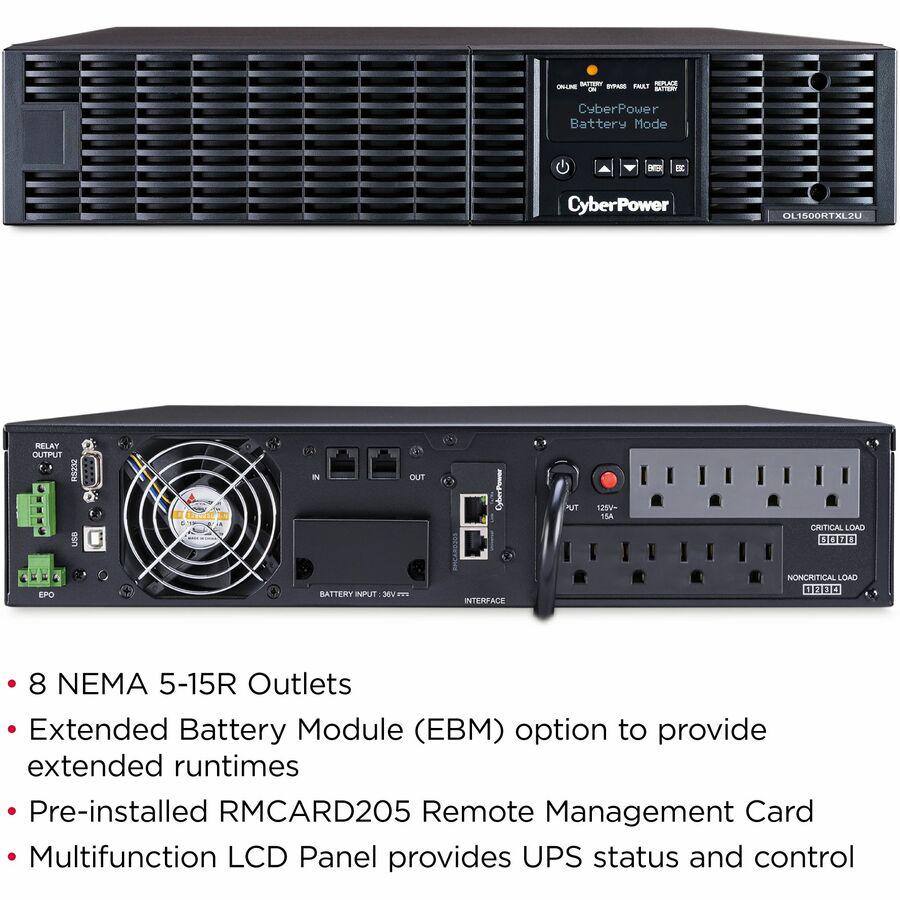

A rack/tower UPS with double conversion topology, the CyberPower Smart App Online OL1500RTXL2UN provides sine wave output to mission-critical applications and equipment requiring seamless power protection. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS ECO Mode. The OL1500RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. This model can use the BP36V60ART2U Extended Battery Module for expanded runtime and faster restoration of full backup power with Fast Charge Technology. The RMCARD205, a remote management card that provides remote management and configuration of the UPS via a standard Web browser, command line interface (CLI), or network management system (NMS) comes pre-installed. The OL1500RTXL2UN comes with a three year warranty and a $400,000 Connected Equipment Guarantee.
Double-Conversion Topology Provides consistent, clean, and nearly perfect power, regardless of the condition of incoming power. Systems with this technology operate on isolated DC power 100% of the time and have a zero transfer time because they never need to switch to battery. Double-conversion UPS systems are designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.
Sine Wave Output Provides power protection to ENERGY STAR 6.0 and 80 PLUS systems with Active PFC power supplies.
RMCARD205 Factory Installed A full-featured network management card, the CyberPower RMCARD205 remotely manages, monitors, and controls CyberPower UPS systems via a standard web browser, command line interface (CLI), or network management system (NMS) connection.

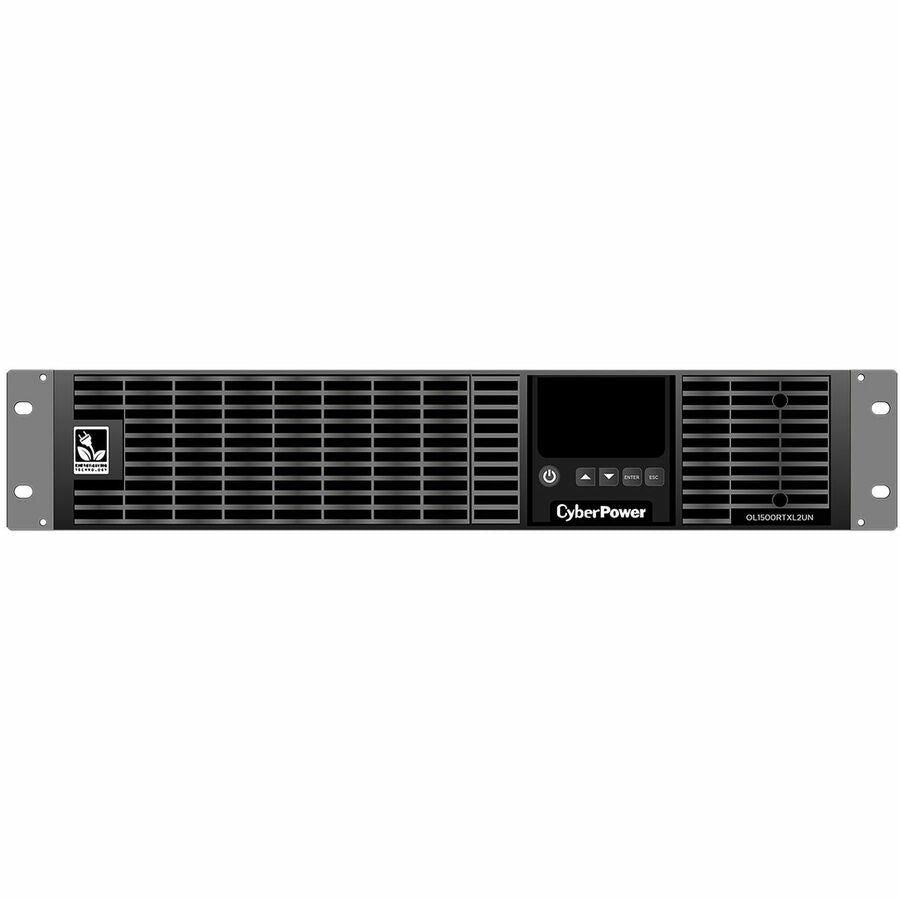

Extendable LCD Panel Displays UPS statuses and customizable operating settings from up to 10 ft. away (with optional cable). The extendable LCD control panel can be configured in English, Spanish, or French for ease of use.
Extended Battery Module (EBM) Extends runtime by adding EBMs. This UPS allows for up to ten added modules.
Fast Charge Technology Allows UPS batteries to return to 100% capacity more rapidly by utilizing a built-in charger inside each EBM. Restores a complete charge within 5 hours regardless of the number of EBMs.
Smart Battery Management (SBM) Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process. Charger will also regulate charging voltage to compensate for ambient temperature. It will reduce the charging voltage at higher temperature and vice versa.
GreenPower UPS ECO Mode Improves UPS efficiency up to 95% saves on electrical and cooling costs.
Hot-Swappable Batteries Eliminate downtime related to UPS power maintenance for continuous power availability.

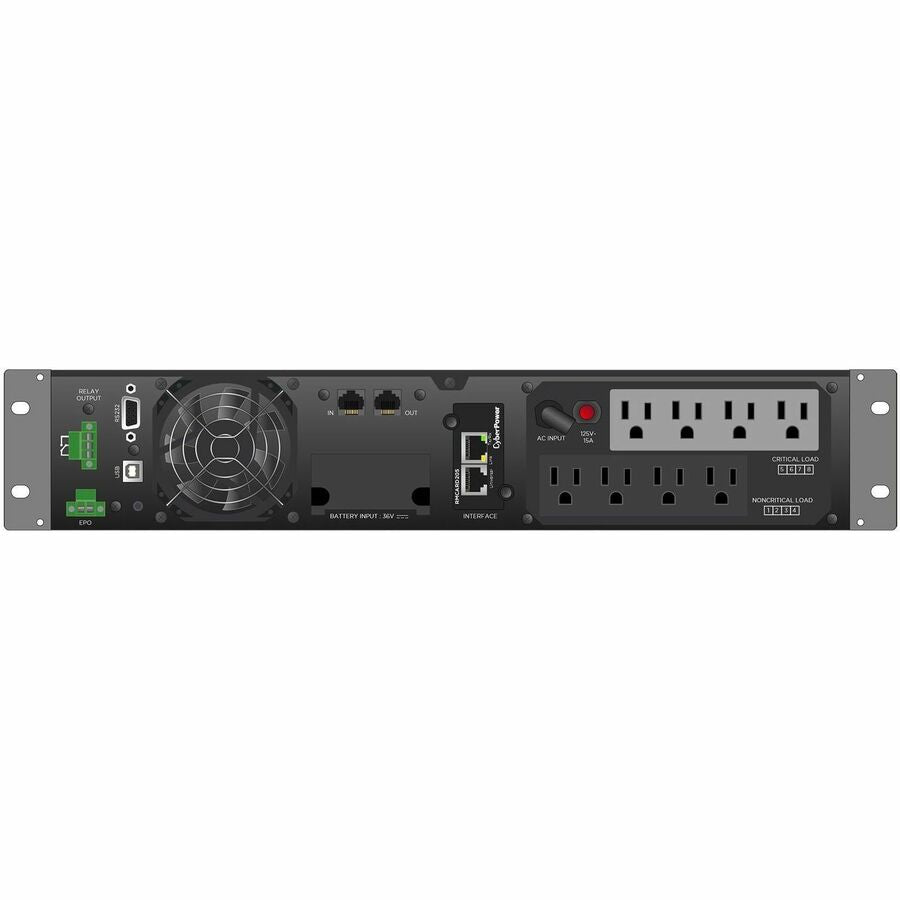

Critical & Non-Critical Loads The UPS has two banks of outlets which can be configured so that the non-critical loads shut off after a set timeframe to provide additional runtime for the critical load outlet. Users can prioritize their equipment runtimes to maximize the output of the UPS to meet their power requirements.
Emergency Power Off (EPO) Allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch.
Generator Compatible Provides stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.
Converter Mode Provides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50Hz or 60Hz output on the LCD control panel.
USB & Serial Connectivity Enables full integration with built-in power management and auto shutdown features on Windows, Linux, and VMware systems through a HID-compliant USB port and Serial port.
EMI/RFI Filters Prevent electromagnetic and radio frequency interference to ensure clean power for connected equipment.
Data Line Protection Prevents power surges that travel through telephone and Ethernet lines from causing damage to electronics.
Audible Alarms Identify when the model is running on battery power, overloaded, or has a low battery.
Resettable Circuit Breaker Interrupts an electric current in a circuit when the current becomes too high.
LED Status Lights Indicate Power On, Line Mode, Battery Mode, Bypass Mode, Fault, Replace Battery.

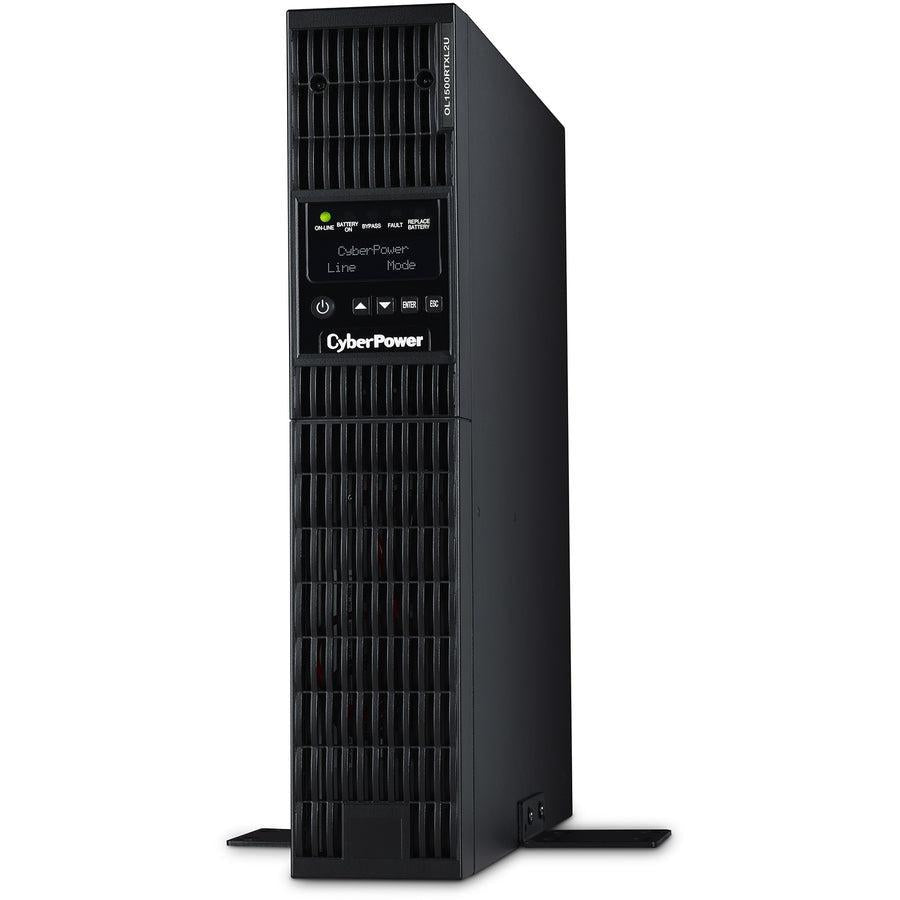

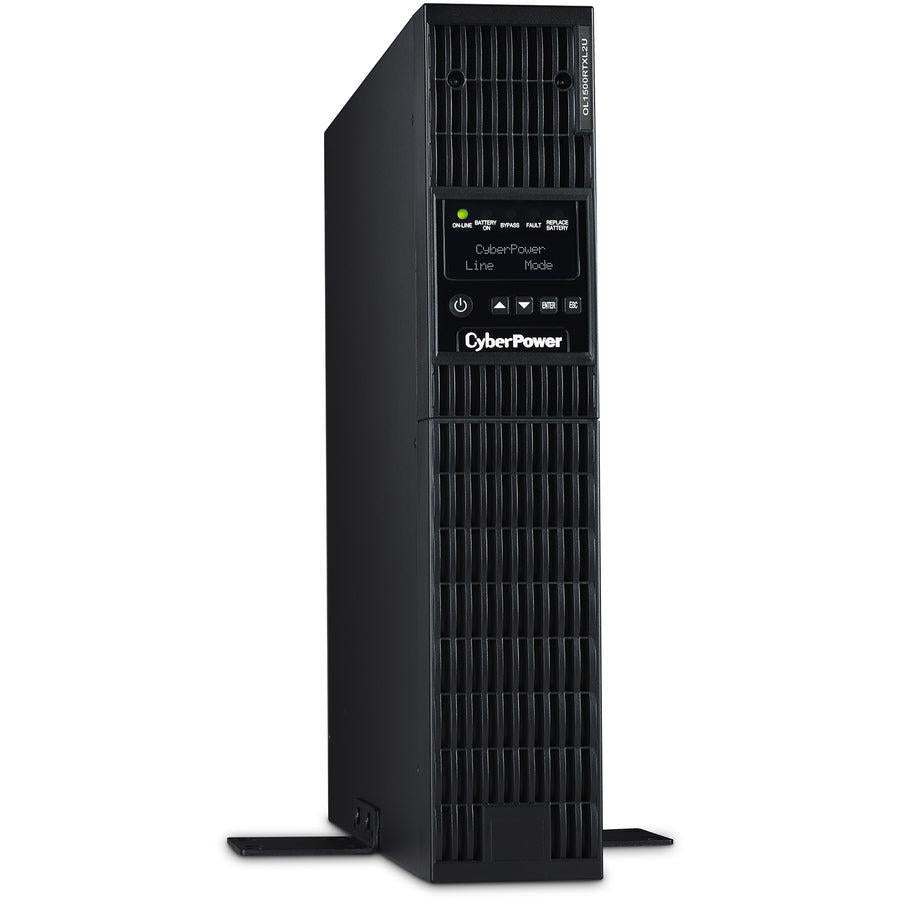

Rack/Tower Versatility Allows for horizontal rack or vertical tower installation.
PowerPanel Business Edition Software Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. See the Resources tab.
Cisco Compatible This CyberPower UPS system is a Cisco EnergyWise compliant end device.
ENERGY STAR This model is an ENERGY STAR certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
Three-Year Warranty CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
Connected Equipment Guarantee CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
