CyberPower OL10000RT3UPDU. UPS topology: Double-conversion (Online), Output power capacity: 10 kVA, Output power: 9000 W. AC outlet types: Terminal, NEMA 6–20R, NEMA 6–30R, AC outlets quantity: 7 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery capacity: 12 VAh. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Steel. Width: 433 mm, Depth: 820 mm, Height: 264 mm

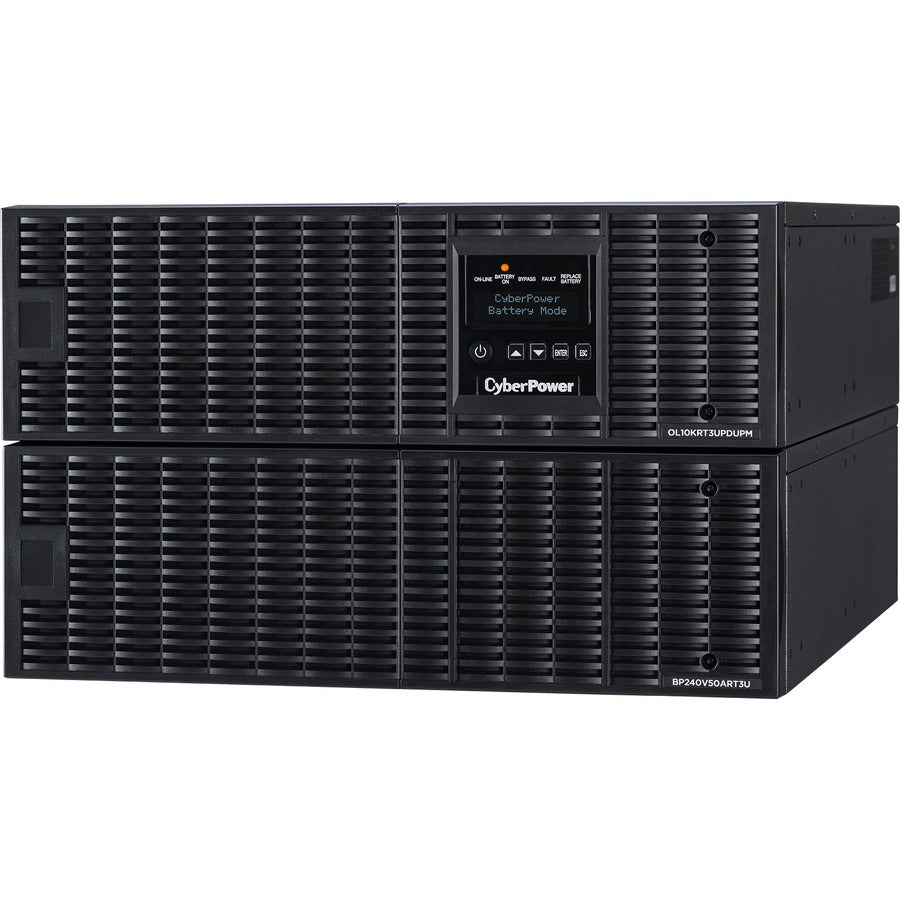

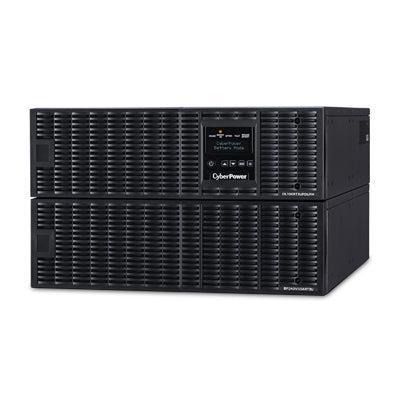

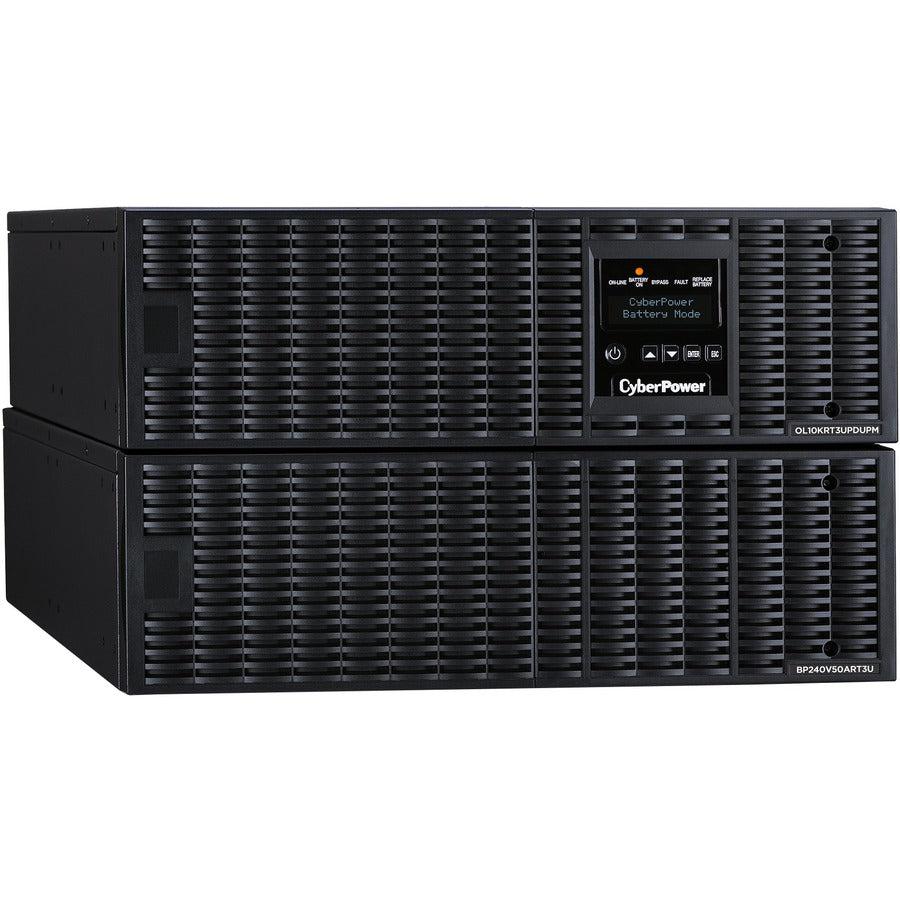

The CyberPower Smart App Online OL10000RT3UPDU is a 6U rack/tower UPS with double-conversion topology and Maintenance Bypass Switch. It provides sine wave output to mission-critical applications and equipment requiring seamless power protection. Generator-compatible, the OL10000RT3UPDU delivers consistent 200-240V AC power with zero transfer time. Auto-bypass ensures connected equipment continues to operate seamlessly when an overload or internal fault is detected. The Maintenance Bypass Switch allows for the UPS power module to be hot-swapped for service or replacement without cutting power to the connected equipment.
The OL10000RT3UPDU features an extendable LCD control panel (with optional cable), Smart Battery Management charging design, Fast Charge Technology, and the energy-saving GreenPower UPS ECO Mode. This model can use the BP240V30ART3U Extended Battery Module for expanded runtime and faster restoration of full backup power. The OL10000RT3UPDU comes with a three-year warranty (including batteries) and a $300,000 Connected Equipment Guarantee.
Data Line Protection Prevents power surges that travel through telephone and Ethernet lines from causing damage to electronics.
Double-Conversion Topology Provides consistent, clean, and nearly perfect sine wave power, regardless of the condition of incoming power. Systems with this technology operate on isolated DC power 100% of the time and have a zero transfer time because they never need to switch to battery. Double-Conversion UPS systems are designed for high-end, mission-critical system components, corporate servers, lab equipment, and other sensitive electronic devices.
Sine Wave Output Provides power protection to ENERGY STAR 6.0 systems with Active PFC power supplies.
Maintenance Bypass Switch Provides IT managers the ability to service or replace the UPS without powering down the connected equipment. A patented interlock bracket enables the UPS to automatically switch to internal bypass mode, making the hot-swap process easier and quicker to complete.
Extendable LCD Panel Displays UPS statuses and customizable operating settings. The 43-setting LCD control panel can be removed and mounted up to ten feet away from the UPS (with optional cable). Users can check UPS status, manage setup and control, and run battery test options. Status and log menus provide UPS vitals, including input and output voltage levels, battery information, runtime estimates, load information, event and fault logging, and other system information. The Configuration menu offers IT managers the ability to customize the UPS operation.
Multiple Language Options The LCD Control Panel can be configured in English, Spanish, French, and German for ease of use.
Extended Battery Module (EBM) Extends runtime by adding EBMs. An online Series UPS allows for up to ten added modules.
Fast Charge Technology Allows UPS batteries to return to 100% capacity more rapidly by utilizing a built-in charger inside each EBM. Restores a complete charge within 5 hours regardless of the number of EBMs.
Smart Battery Management (SBM) Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process. The first cycle charges the battery to full capacity, the second cycle enters float mode, and the final cycle turns the charger off and allows the battery to naturally discharge (rest) until it reaches a set point. After a slight discharge, the UPS will restart the process, ensuring that runtimes are maintained.
GreenPower UPS ECO Mode Improves UPS efficiency up to 95%; saves on electrical and cooling costs.
Hot-Swappable Batteries Eliminate downtime related to UPS power maintenance for continuous power availability.
Critical & Non-Critical Loads The UPS has two banks of outlets which can be configured so that the non-critical loads shut off after a set timeframe to provide additional runtime for the critical load outlet. Users can prioritize their equipment runtimes to maximize the output of the UPS to meet their power requirements.
Emergency Power Off (EPO) Allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch.
Backfeed Protection Prevents the risk of electric shock from any electric current feeding back from the UPS through the input terminals when utility power is lost. Backfeed protection isolates the UPS and allows service personnel to safely work on the utility power.
Generator Compatible Provides stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.
Converter Mode Provides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50Hz or 60Hz output on the LCD control panel.
USB & Serial Connectivity Enables full integration with built-in power management and auto shutdown features on Windows, Linux, and VMware systems through a HID-compliant USB port and Serial port.
EMI/RFI Filters Prevent electromagnetic and radio frequency interference to ensure clean power for connected equipment.
Audible Alarms Identify when the unit is running on battery power, overloaded, or has a low battery.
Resettable Circuit Breaker Interrupts an electric current in a circuit when the current becomes too high.
LED Status Lights Indicate Power On, On-Line Mode, Battery Mode, Bypass Mode, Fault, Replace Battery.
Rack/Tower Versatility Allows for horizontal rack or vertical tower installation.
PowerPanel Business Edition Software Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Connect your computer to the HID-compliant, USB port, or serial port to use the power management features provided by PowerPanel Business Edition software. Free software download available. See the Resources tab. For remote management, use the RMCARD.
Three-Year Warranty CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date.
Connected Equipment Guarantee CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
