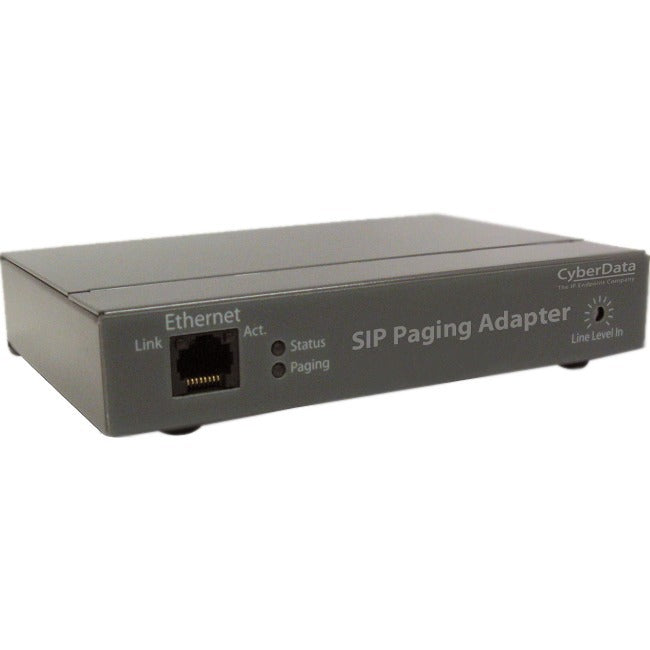

The CyberData SIP Paging Adapter is a VoIP endpoint that interfaces analog paging systems with SIP and Multicast-based audio sources. The SPA (SIP Paging Adapter) can be configured to support two separate SIP extensions. SIP extension one passes audio through to the analog output spoken from the caller's handset. When called, SIP extension two plays a bell audio that can be used as a night ringer when configured in a night ring group. The SPA supports up to 9 user-loadable messages that can be played by a DTMF command. The SPA supports a line-In input for playing MOH.
- 10k Ohm input for background music
- 600 Ohm Balanced audio out
- Built-in diagnostics
- G711 A-Law and u-Law, G.722 codecs
- HTTP Web Interface and setup
- 10 channel prioritized Multicast ports
- Page to Polycom phones
- 9 user-uploadable page messages
- Voice prompt pass code and page control
- Two SIP extensions (Note: One of these extensions is a dedicated "night ringer," which is not capable of answering a call, and will only play a stored message while the call is ringing.)
Product Type: Paging Adapter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: CyberData
Length: 6.1"
Manufacturer: CyberData Corporation
Product Name: SIP Paging Adapter
Manufacturer Part Number: 011233
Manufacturer Website Address: http://www.cyberdata.net
Limited Warranty: 2 Year
