Crestron UC-BX30-T-WM Video Conference Equipment
The Crestron Flex UC-BX30-T-WM system provides a video conference room solution for use with the Microsoft Teams Rooms intelligent communications platform. It supports single or dual video displays and features a 10.1 in. wall mount touch screen (TSW-1070-B-S-T-V), UC Bracket Assembly (UC-BRKT-250-P-T-ASSY), UC Presentation Transmitter (UC-PR), and Crestron UC video conference smart soundbar & camera (UC-SB1-CAM-FLEX).
Native Microsoft Teams® Rooms Experience
The UC-BX30-T-WM system brings the full Microsoft Teams Rooms UC experience to any meeting space in an enterprise or SMB facility, whether implementing a cloud based Microsoft Teams Rooms deployment, on-premises Skype® for Business software, or a hybrid of the two.
Intuitive User Interface
With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron® wall mount touch screen (TSW-1070-B-S-T-V) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.
Simplified Deployment
The UC Bracket Assembly (UC-BRKT-250-P-T-ASSY) provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device. Crestron's direct connection method further simplifies installation with a single connection from the touch screen to the UC Bracket Assembly.
Wall Mount Options
Using the bracket provided, the TSW-1070 is easily installed over a 2-gang or 3-gang US electrical box, or a 2-gang European or UK electrical box. A security latch option is included to deter unauthorized removal of the touch screen.
High-Definition Video Conferencing with Impressive Audio
High-quality speakers, microphone, and digital signal processing deliver exceptional full-duplex speakerphone performance from the Crestron UC video conference soundbar and camera (UC-SB1-CAM-FLEX). The built-in conferencing camera captures the room in HD 1080p video resolution and with an ultra-wide 150° diagonal field of view.
Crestron Control System Integration
The UC-BX30-T-WM can integrate with a Crestron control system to enable touch screen control of room lighting, motorized window shades, climate control, AV, and other amenities.
Bring Your Own Device (BYOD)
Conference room visitors can connect their laptop to the Crestron Flex system to use their own UC conference platform. The UC Presentation Transmitter (UC-PR) switches to the connected laptop's UC platform and returns to the native Microsoft Teams Rooms platform when disconnected.
- With unmatched performance and clarity, this video conference equipment lets you conduct better video conference meetings
- With frame rate of up to30 fps get smooth and lag-free videos
- Gigabit Ethernet enables higher data transfer capacity which results in a better conference calling
- Simply plug in RJ-45 port to connect the conference equipment on the network
- With the 10/100/1000Base-T technology, get up to 1000Mbps data transfer rate over the twisted pair cable
Product Type: Video Conference Equipment
Brand Name: Crestron
Form Factor: Wall Mountable
Manufacturer: Crestron Electronics, Inc
Product Model: UC-BX30-T-WM
Product Name: UC-BX30-T-WM Video Conference Equipment
Manufacturer Part Number: 6511939
Manufacturer Website Address: http://www.crestron.com

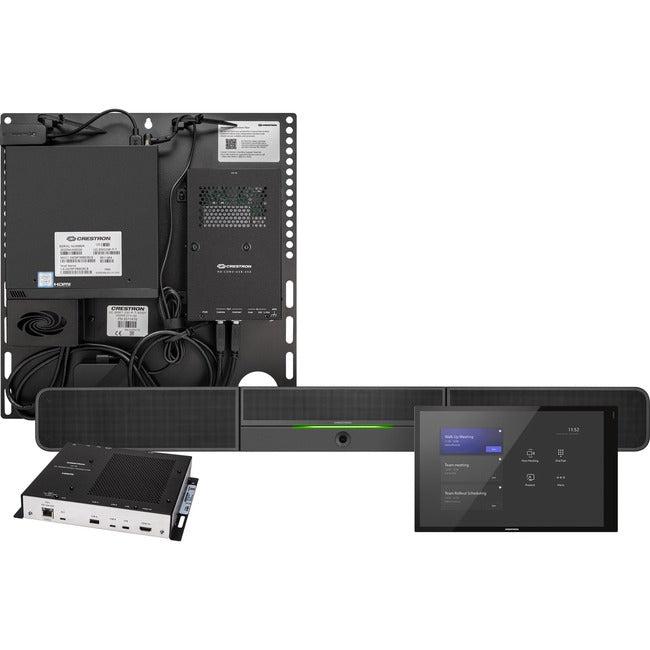

Package Contents:
- TSW-1070-B-S: 10.1 in. (257 mm) wall mount touch screen, black
- UC-PR: UC Presentation Transmitter
- UC-SB1-CAM-FLEX: UC Video Conference Smart Soundbar and Camera
- CBL-4K-DP-HD-6: Active Converter Cable, DisplayPort™ to HDMI, 18 Gbps, 6 ft (1.8 m)
- 3 x Ethernet LAN cable for UC Engine, RJ45-to-RJ45, black, 7 ft (2.1 m): CBL-CAT5E-7
- CBL-HD-6: HDMI Interface Cable, 6 ft (1.8 m)
- DM-CBL-ULTRA-PC-20: Ethernet LAN cable, CAT6a, RJ45-to-RJ45, blue, 20 ft (6.1 m)
- UC Engine: ASUS Mini PC with Zoom Rooms video
- ADPT-USB-ENET: USB-to-Ethernet Adapter
- HD-CONV-USB-250: CAT5 to USB 3.0 converter for content ingest
- Mounting hardware
- 2 x HDMI Female-to-Male: EDID Passthroughs
