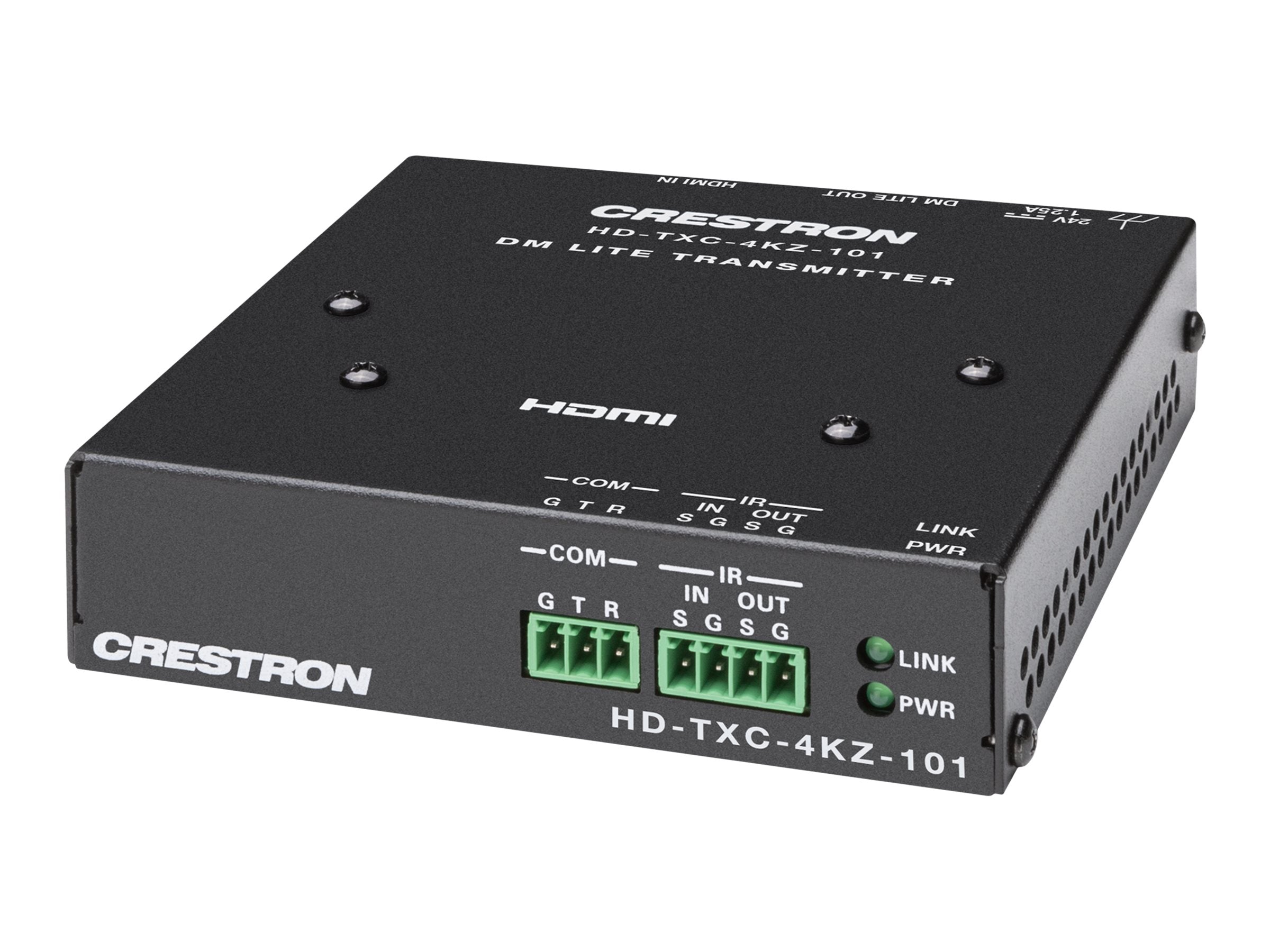

Crestron DM Lite HD-TXC-4KZ-101 - Video/audio/infrared/serial extender - transmitter - CATx, DM Lite - up to 230 ft
- Interoperability with a DM Lite receiver or DMPS Lite switcher The DM Lite output port of the HD-TXC-4KZ-101 must be connected to a DM Lite input port of a DM Lite receiver or DMPS Lite switcher.
-
4K60 4:4:4 and HDR support
The HD-TXC-4KZ-101 supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision video formats are also supported.
-
Compact, surface-mountable design
Compact in design, the HD-TXC-4KZ-101 can be mounted onto a flat surface such as the underside of a table, behind a credenza, or inside a podium. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD-TXC-4KZ-101 can receive power from the included power pack or from the remote DM Lite receiver or DMPS Lite switcher.
The HD-TXC-4KZ-101 is a DM Lite 4K60 4:4:4 transmitter designed to interoperate with a DM Lite receiver or DMPS Lite switcher for the transmission of HDMI, RS-232, and IR signals. A CAT5e or higher twisted pair cable is used to connect the HD-TXC-4KZ-101 to the DM Lite receiver or DMPS Lite switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.
- Interoperability with a DM Lite receiver or DMPS Lite switcher
- Point-to-point extension of HDMI, RS-232, and IR signals over a CAT5e or higher cable
- DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
- 4K60 4:4:4 capability
- HDR10, HDR10+, and Dolby Vision video formats
- Compliance with HDCP 2.3
- CEC (Consumer Electronics Control) pass-through capability
- Bidirectional RS-232 and IR pass-through capability
- EDID pass-through capability
- Compact, surface-mountable design
- Power from 24VDC power pack (included) or from remote DM Lite receiver or DMPS Lite switcher
