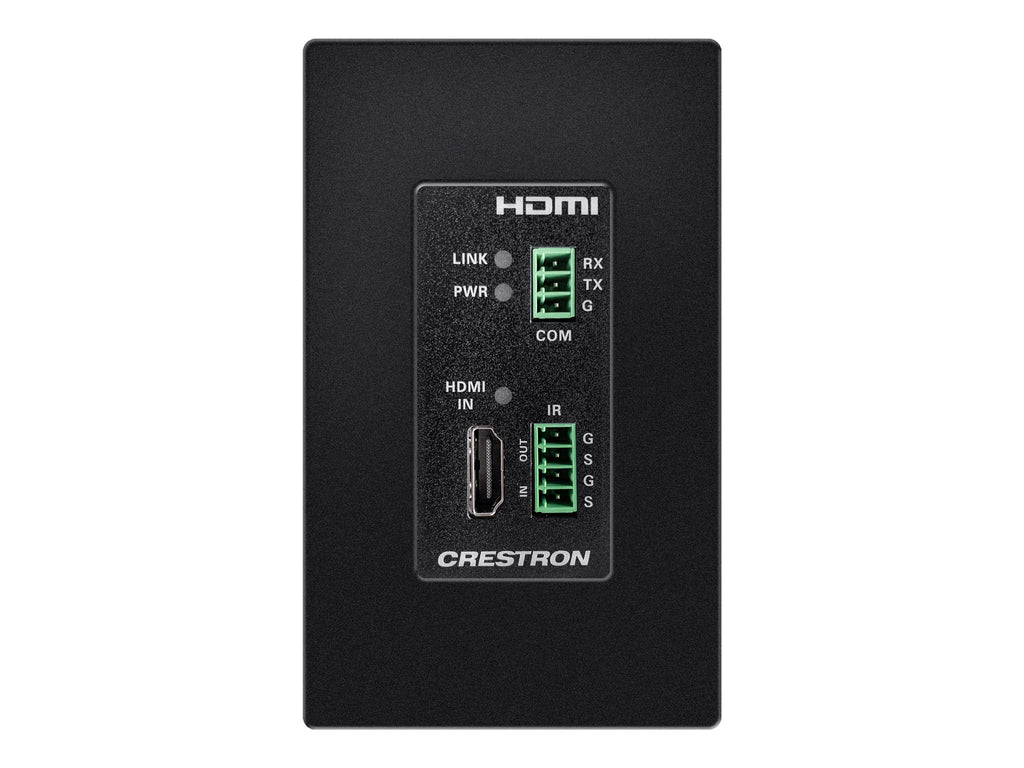

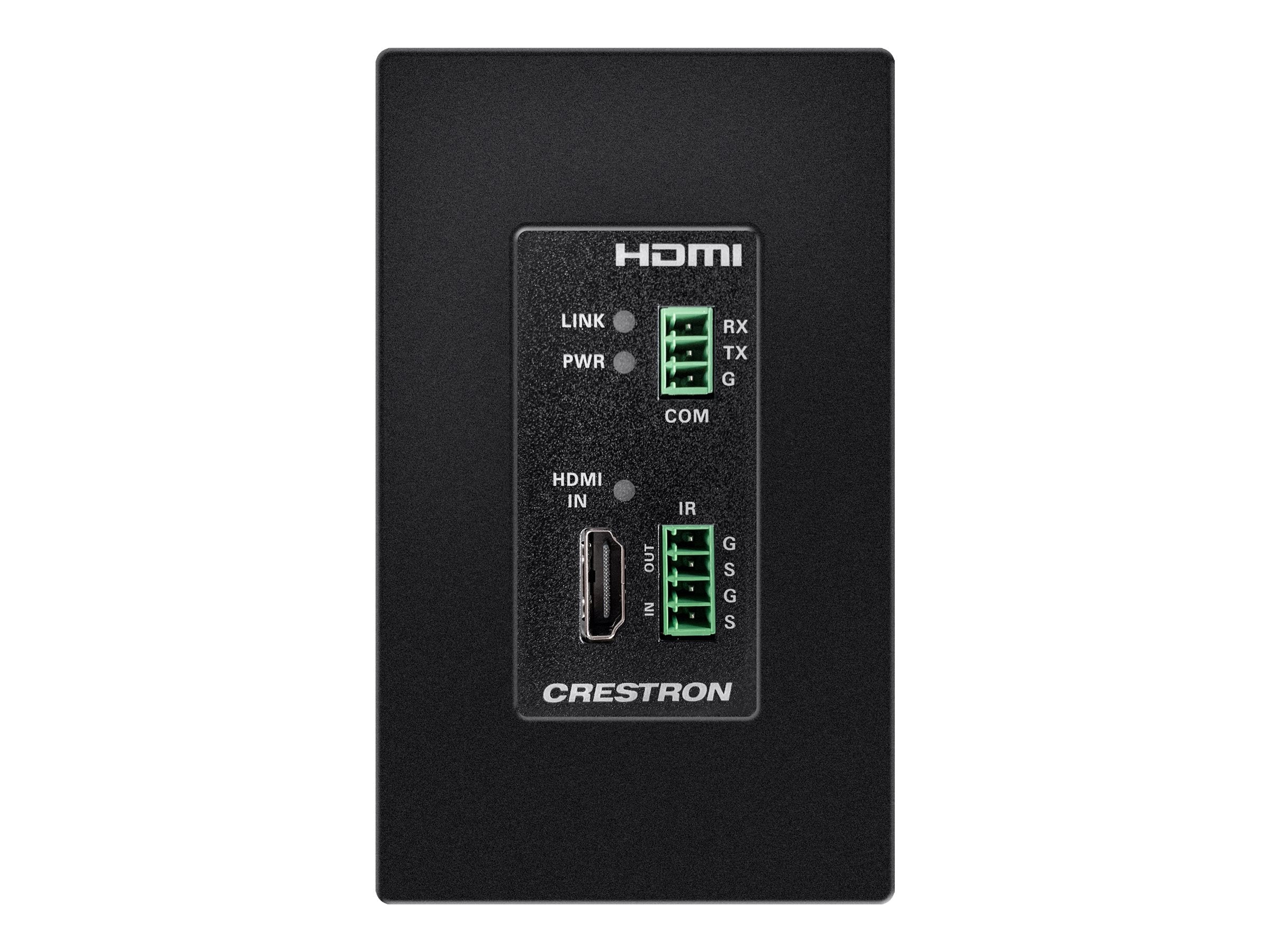

Crestron DM Lite HD-TXC-4KZ-101-1G-B - Video/audio/infrared/serial extender - transmitter - CATx, DM Lite - up to 230 ft
-
Interoperability with a DM Lite receiver or DMPS Lite switcher
The DM Lite output port of the HD-TXC-4KZ-101-1G must be connected to a DM Lite input port of a DM Lite receiver or DMPS Lite switcher.
-
4K60 4:4:4 and HDR support
The HD-TXC-4KZ-101-1G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision video formats are also supported.
-
One-gang wall plate design
The HD-TXC-4KZ-101-1G is designed to mount into a 1-gang U.S. electrical box. The HD-TXC-4KZ-101-1G can receive power from the remote DM Lite receiver (surface mountable only) or DMPS Lite switcher.
The HD-TXC-4KZ-101-1G is a DM Lite 4K60 4:4:4 wall plate transmitter designed to interoperate with a DM Lite receiver or DMPS Lite switcher for the transmission of HDMI, RS-232, and IR signals. A CAT5e or higher twisted pair cable is used to connect the HD-TXC-4KZ-101-1G to the DM Lite receiver or DMPS Lite switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.
- Interoperability with a DM Lite receiver or DMPS Lite switcher
- Point-to-point extension of HDMI, RS-232, and IR signals over a CAT5e or higher cable
- DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
- 4K60 4:4:4 capability
- HDR10, HDR10+, and Dolby Vision video formats
- Compliance with HDCP 2.3
- CEC (Consumer Electronics Control) pass-through capability
- Bidirectional RS-232 and IR pass-through capability
- EDID pass-through capability
- One-gang wall plate design
- Power from the remote DM Lite receiver (surface mountable only) or DMPS Lite switcher
