Crestron DM Lite 4K60 4:4:4 Transmitter for USB-C DisplayPort Signal Extension over CATx Cable, Wall Plate, White - 230 ft Range - 1 x Network (RJ-45) - 1 x USB - 1080p - UXGA, 4K, 4K UHD, Full HD, 2K, WUXGA, QWXGA, WQXGA - 4096 x 2160 - Twisted Pair - Category 5e - Wall Plate, Gang Box Mount

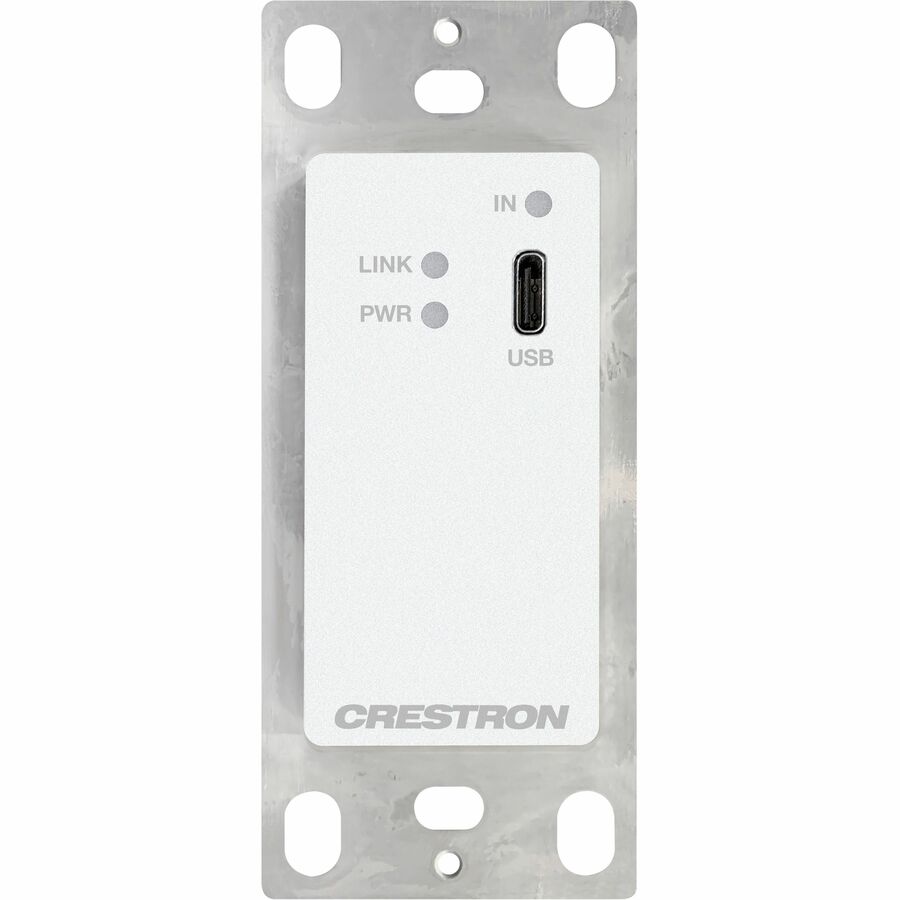

The HD-TX-4KZ-111-1G is a DM Lite® 4K60 4:4:4 wall plate transmitter designed to interoperate with a DM Lite® receiver or DMPS Lite™ switcher. The HD-TX-4KZ-111-1G includes a USB-C® input with DisplayPort™ Alt Mode capability, enabling the transmission of a DisplayPort AV signal. A CAT5e or higher twisted pair cable is used to connect the HD-TX-4KZ-111-1G to the DM Lite receiver or DMPS Lite switcher.For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.1
The HD-TX-4KZ-111-1G is available in two models: HD-TX-4KZ-111-1G-W (white) and HD-TX-4KZ-111-1G-B (black).
Interoperability with a DM Lite Receiver or DMPS Lite Switcher
The DM Lite output port of the HD-TX-4KZ-111-1G must be connected to a DM Lite input port of a DM Lite receiver or DMPS Lite switcher. Examples of supported DM Lite 4K60 4:4:4 receivers are theHD-RX-4KZ-101,HD-RXA-4KZ-
