Crestron DM Lite 4K60 4:4:4 Transmitter for USB-C DisplayPort Signal Extension over CATx Cable - 230 ft Range - 1 x Network (RJ-45) - 1 x USB - 1080p - WQXGA, Full HD, WUXGA, 4K, 4K UHD, 2K, UXGA, QWXGA - 4096 x 2160 - Twisted Pair - Category 5e - Power over Ethernet (PoE) - Surface-mountable, Rail-mountable

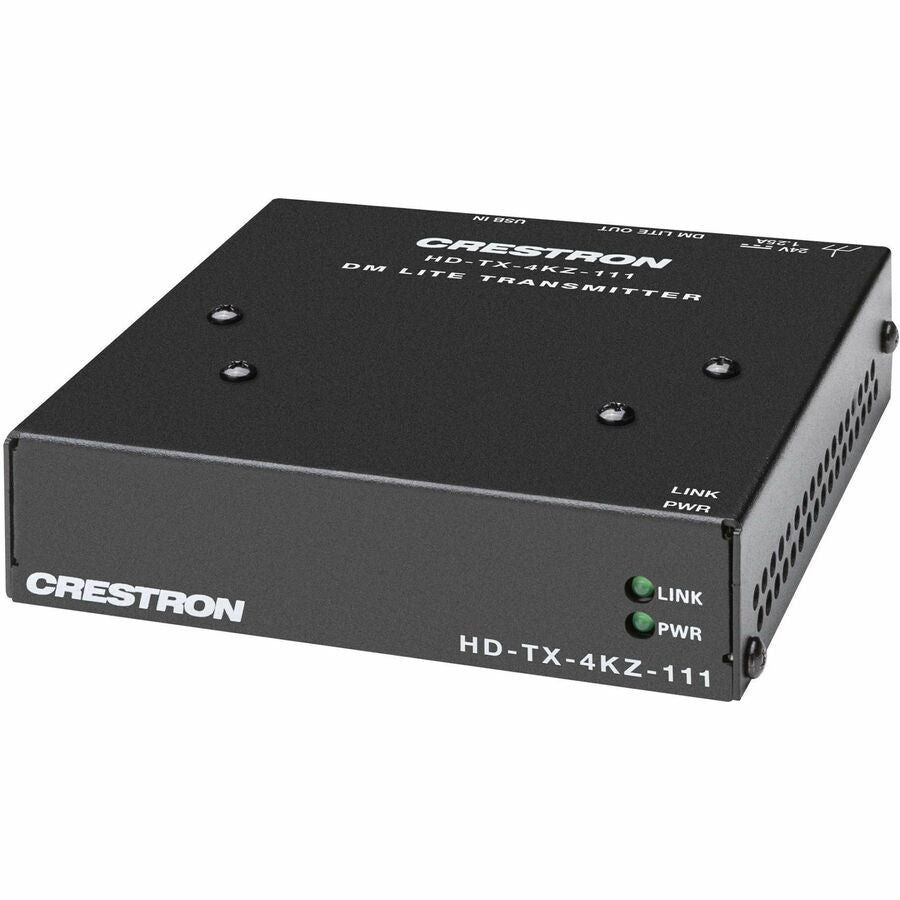

The HD-TX-4KZ-111 is a DM Lite® 4K60 4:4:4 transmitter designed to interoperate with a DM Lite® receiver or DMPS Lite™ switcher. The HD-TX-4KZ-111 includes a USB-C® input with DisplayPort™ Alt Mode capability, enabling the transmission of a DisplayPort AV signal. A CAT5e or higher twisted pair cable is used to connect the HD-TX-4KZ-111 to the DM Lite receiver or DMPS Lite switcher.For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.1
Interoperability with a DM Lite Receiver or DMPS Lite Switcher
The DM Lite output port of the HD-TX-4KZ-111 must be connected to a DM Lite input port of a DM Lite receiver or DMPS Lite switcher. Examples of supported DM Lite 4K60 4:4:4 receivers are the HD-RX-4KZ-101, HD-RXA-4KZ-101, HD-RXC-4KZ-101, and HD-RXCA-4KZ-101. Supported DM Lite 4K60 4:2:0 receivers are the HD-RX-101-C-E, HD-RXC-101-C-E, HD-RX-201-C-E, HD-RX
