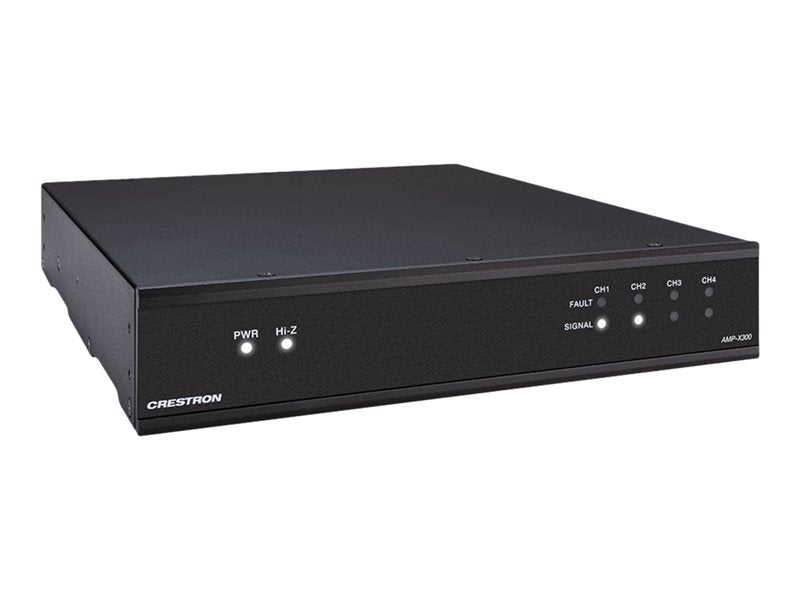

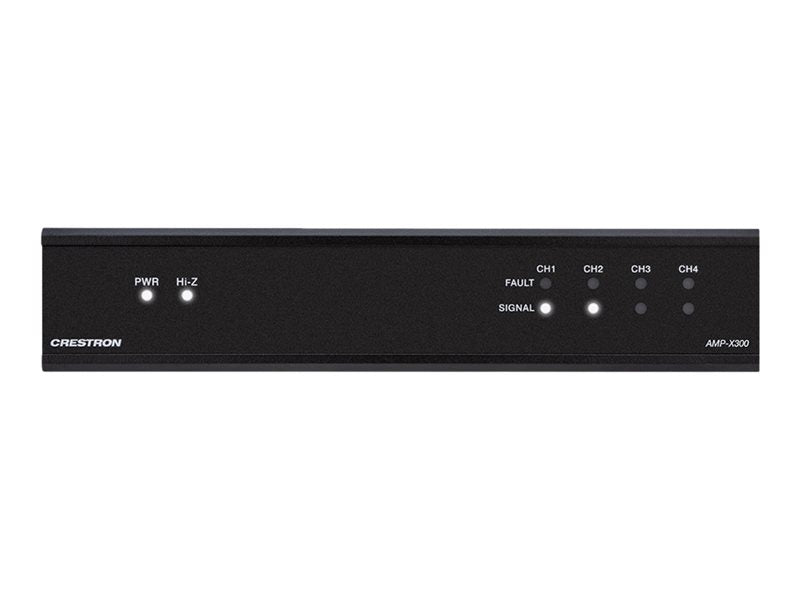

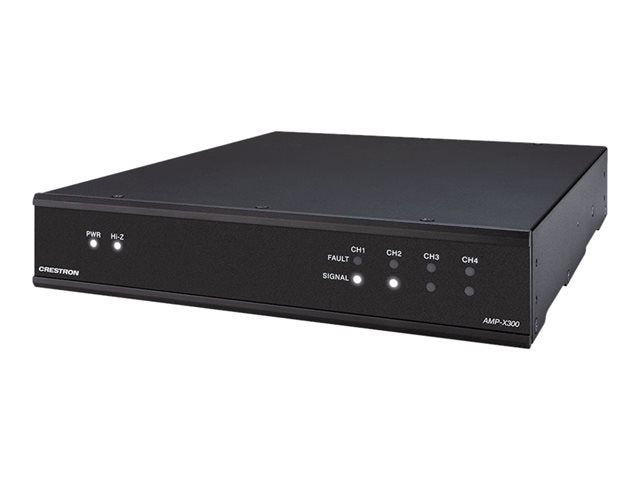

Crestron AMP-X300 Modular Power Amplifier
The AMP-X300 is a professional 4-channel power amplifier designed for integrators and installers who need flexible, energy-efficient audio amplification across residential, commercial, and institutional applications. This modular X Series amplifier delivers up to 75W per channel (300W total in bridged mode) while maintaining exceptional efficiency through advanced Class D technology. Perfect for conference rooms, boardrooms, retail environments, and distributed audio systems, the AMP-X300 combines compact design with powerful performance to save energy, space, and installation costs.
Key Features
- 4-channel configuration with up to 75W per channel output
- Bridged operation modes supporting up to 300W total power output
- Selectable LoZ outputs for 4Ω or 8Ω speaker systems
- Hi-Z outputs compatible with 70V and 100V distributed audio systems
- Advanced Class D technology for maximum efficiency and minimal heat generation
- Balanced and unbalanced audio inputs via detachable terminal blocks and RCA connectors
- Universal internal power supply for consistent performance across varying line voltages
- Modular X Series design for flexible system integration
- Professional-grade construction for reliable commercial installations
Technical Specifications
| Specification |
Details |
| Manufacturer |
Crestron Electronics |
| Model Number |
AMP-X300 |
| Product Series |
Modular X Series |
| Amplifier Type |
4-Channel Class D Power Amplifier |
| Power Output (per channel) |
Up to 75W |
| Total Power Output (bridged) |
Up to 300W |
| Speaker Impedance (LoZ) |
4Ω or 8Ω |
| Speaker Impedance (Hi-Z) |
70V or 100V distributed systems |
| Input Connectors |
Balanced (detachable terminal blocks) and Unbalanced (RCA) |
| Input Configuration |
Stereo or Mono sources |
| Power Supply |
Universal internal power supply |
| Technology |
Class D amplification |
| Key Benefits |
Energy efficient, reduced heat dissipation, compact footprint |
Frequently Asked Questions
What is the difference between LoZ and Hi-Z outputs on the AMP-X300?
The LoZ outputs connect to traditional passive speakers with 4Ω or 8Ω impedance ratings, ideal for localized audio zones. The Hi-Z outputs support 70V and 100V distributed audio systems commonly used in commercial installations, retail spaces, and large venues where audio needs to reach multiple areas efficiently.
Can the AMP-X300 be configured for bridged operation?
Yes, the AMP-X300 supports multiple bridged operation modes, allowing you to combine channels for higher power output up to 300W total. This flexibility makes it ideal for applications requiring greater amplification from a compact modular amplifier.
How does Class D technology benefit the AMP-X300 power amplifier?
Advanced Class D technology maximizes amplifier efficiency, significantly reducing power consumption and heat dissipation compared to traditional amplifier designs. This means lower operating costs, quieter operation, and easier thermal management in confined installation spaces.

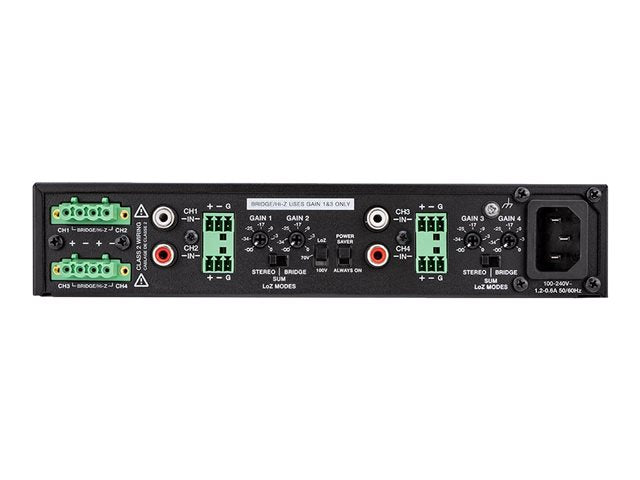

What input options does the AMP-X300 modular amplifier provide?
The AMP-X300 offers both balanced inputs (via detachable terminal blocks) and unbalanced inputs (RCA connectors), allowing connection to stereo or mono audio sources. The universal internal power supply ensures consistent performance regardless of line voltage variations.
