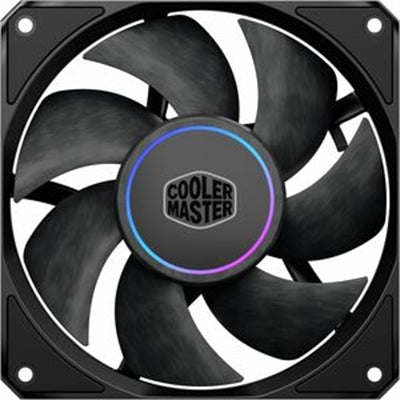

Cooler Master MasterFan M120 ARGB
The Cooler Master MasterFan M120 ARGB is a premium 120mm cooling fan engineered for high-performance PC builds requiring efficient thermal management and customizable RGB aesthetics. Featuring advanced ARGB lighting, a durable aluminum frame, and precision-engineered LCP blades, this fan delivers exceptional airflow while maintaining whisper-quiet operation. With PWM control support and a Magnetic Dynamic Bearing for extended lifespan, the MasterFan M120 ARGB is ideal for CPU coolers, case ventilation, and radiator applications where reliability meets visual appeal.
Key Features
-
120mm ARGB Fan — Customizable RGB lighting synchronized with compatible motherboards and controllers
-
Magnetic Dynamic Bearing — Precision bearing technology for smooth, long-lasting operation and reduced friction
-
LCP Blades — Liquid Crystal Polymer construction for optimal aerodynamic efficiency and durability
-
PWM Control — Automatic fan speed adjustment based on system temperature for intelligent thermal management
-
High Performance — Rated up to 2300 RPM with 75.2 CFM airflow output
-
Quiet Operation — Noise level capped at 27 dBA for silent cooling performance
-
30mm Aluminum Frame — Rigid, heat-dissipating construction ensures structural integrity and longevity
-
Universal Compatibility — Works with standard 120mm mounting points on CPU coolers, case fans, and radiators
Technical Specifications
| Specification |
Value |
| Manufacturer |
Cooler Master |
| Product Series |
MasterFan M120 |
|
| Fan Diameter |
120mm |
| Frame Thickness |
30mm Aluminum |
| Blade Material |
LCP (Liquid Crystal Polymer) |
| Bearing Type |
Magnetic Dynamic Bearing |
| Control Type |
PWM (Pulse Width Modulation) |
| Maximum RPM |
2300 RPM |
| Maximum Airflow |
75.2 CFM |
| Noise Level |
27 dBA |
| Lighting |
ARGB (Addressable RGB) |
| Part Number |
MFZ-P2DM-20NP2-R1 |
Frequently Asked Questions
What is the difference between ARGB and standard RGB lighting?
ARGB (Addressable RGB) lighting allows individual LED control for dynamic color effects and synchronization with compatible motherboards and software. Standard RGB typically offers single-color control. The MasterFan M120 ARGB supports full addressable RGB for customizable lighting profiles.
Is the Cooler Master MasterFan M120 ARGB suitable for CPU coolers?
Yes, the 120mm form factor and Magnetic Dynamic Bearing make this fan ideal for CPU cooler applications. Its 75.2 CFM airflow and PWM control ensure efficient thermal management for processors while maintaining quiet operation at 27 dBA.
How does PWM control improve cooling performance?
PWM (Pulse Width Modulation) control automatically adjusts fan speed based on system temperature. This intelligent regulation optimizes cooling efficiency, reduces power consumption, and minimizes noise during low-load scenarios while ramping up to full 2300 RPM performance when needed.
What makes the Magnetic Dynamic Bearing better than other bearing types?
The Magnetic Dynamic Bearing reduces friction and wear compared to sleeve or ball bearings, resulting in longer lifespan, smoother operation, and improved reliability. This bearing technology is particularly beneficial for 24/7 operation in demanding PC builds.
