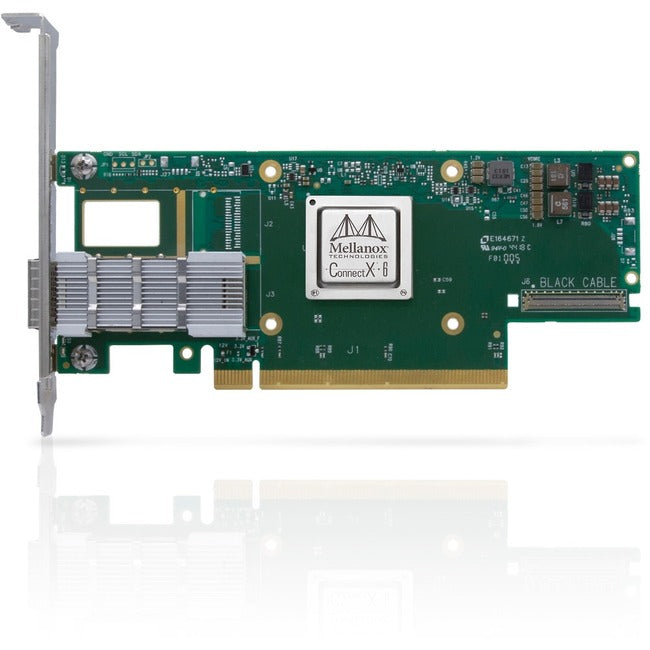

NVIDIA MCX653105A-HDAT-SP ConnectX-6 VPI Adapter Card HDR/200GbE
NVIDIA MCX653105A-HDAT-SP ConnectX-6 VPI Adapter Card HDR InfiniBand and 200GbE Single-Port QSFP56 PCIe 4.0 x16 Tall Bracket (-SP indicates Single Pack)
ConnectX-6 VPI Card 200Gb/s InfiniBand & Ethernet Adapter Card
ConnectX-6 Virtual Protocol Interconnect (VPI) cards are a groundbreaking addition to the ConnectX series of industry-leading network adapter cards. Providing two ports of 200Gb/s for InfiniBand and Ethernet connectivity, sub-600ns latency and 215 million messages per second, ConnectX-6 VPI cards enable the highest performance and most flexible solution aimed at meeting the continually growing demands of data center applications. In addition to all the existing innovative features of past versions, ConnectX-6 cards offer a number of enhancements to further improve performance and scalability.
ConnectX-6 VPI supports HDR, HDR100, EDR, FDR, QDR, DDR and SDR InfiniBand speeds as well as 200, 100, 50, 40, 25, and 10Gb/s Ethernet speeds.
- Up to 200Gb/s connectivity per port
- Max bandwidth of 200Gb/s
- Up to 215 million messages/sec
- Sub 0.6usec latency
- Block-level XTS-AES mode hardware encryption
- FIPS capable
- Advanced storage capabilities including block-level encryption and checksum offloads
- Supports both 50G SerDes (PAM4) and 25G SerDes (NRZ) based ports
- Best-in-class packet pacing with sub-nanosecond accuracy
- PCIe Gen 3.0 and Gen 4.0 support
- RoHS compliant
- ODCC compatible
Product Type: 200Gigabit Ethernet Card
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: NVIDIA
Form Factor: Plug-in Card
Manufacturer: Mellanox Technologies Ltd
Product Model: MCX653105A-HDAT-SP
Product Name: MCX653105A-HDAT-SP ConnectX-6 VPI Adapter Card HDR/200GbE
Product Line: ConnectX-6 VPI
Manufacturer Part Number: MCX653105A-HDAT-SP
Manufacturer Website Address: http://www.mellanox.com
Packaged Quantity: 1
Limited Warranty: 1 Year
