Comprehensive Pro AV/IT USB 2.0 High Speed Single Gang Wall Plate Extender Kit up to 328ft
Extend USB 2.0 High Speed Devices over a Single UTP Cable up to 328ft

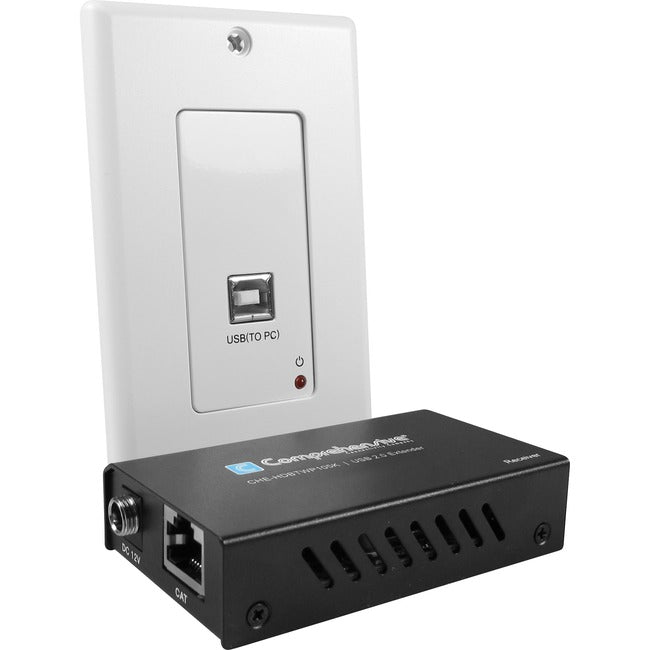

Comprehensive's CHE-HDBTWP105K Wall Plate Extender kit was designed to extend high speed USB 2.0 up to 328ft over Cat5e or Cat6 cables with data transfer speeds up to 480Mbps. This product can be used as an extension for applicable USB devices such as keyboards, mice, webcams, printers and USB hard drives.
Plug & Play Installation
No additional drivers needed. You can connect your USB 2.0 devices hassle free.
Dual USB 2.0 Ports
The two high speed USB 2.0 ports allow you to connect two USB devices and use them simultaneously.
Supports POC (Power over Cable) Delivery
When connected to the power adapter at the receiver (RX) end, this unit will transit power to the wall plate transmitter to operate.
Quality You Can Count On
Since 1974, Comprehensive has been manufacturing the highest quality commercial grade solutions for AV and IT professionals. The CHE-HDBTWP105K extender kit continues that tradition with high end materials, components and quality control to ensure years of worry-free use. All components are backed by Comprehensive's 3 Year Warranty, so you can be assured of guaranteed reliability.
- Supports USB 2.0 protocol with a transmission rate up to 480Mbps
- Supports extended distances up to 328ft (100 meters) via CAT 5e/6 cable

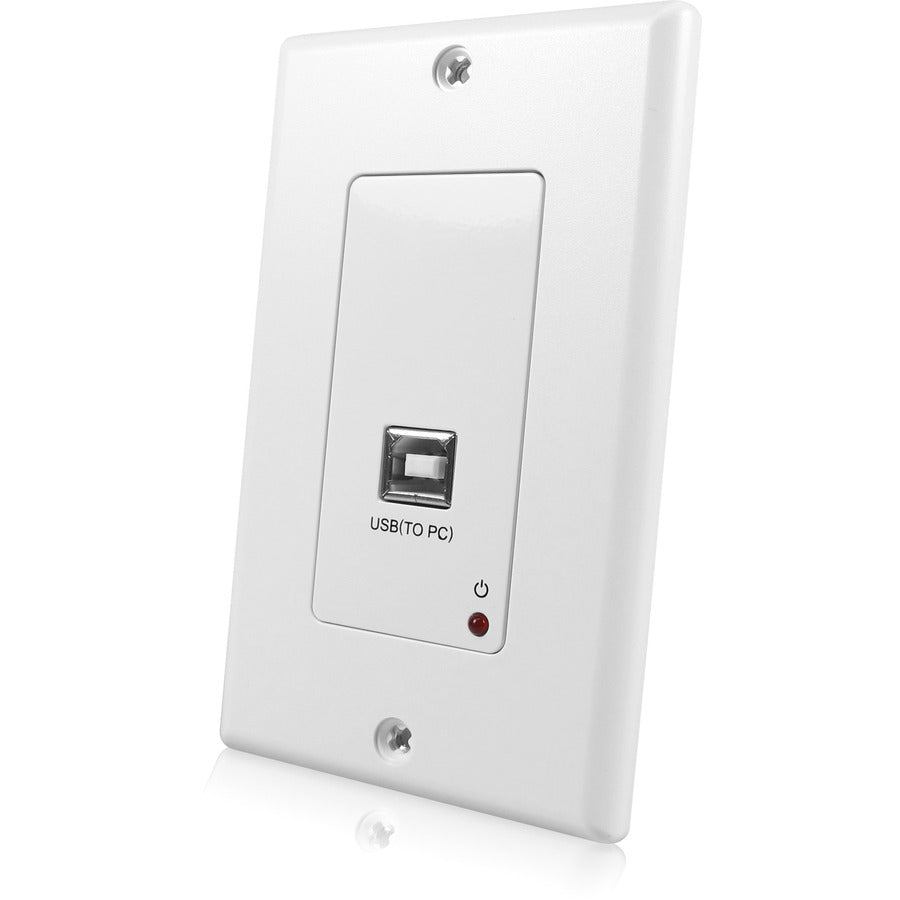

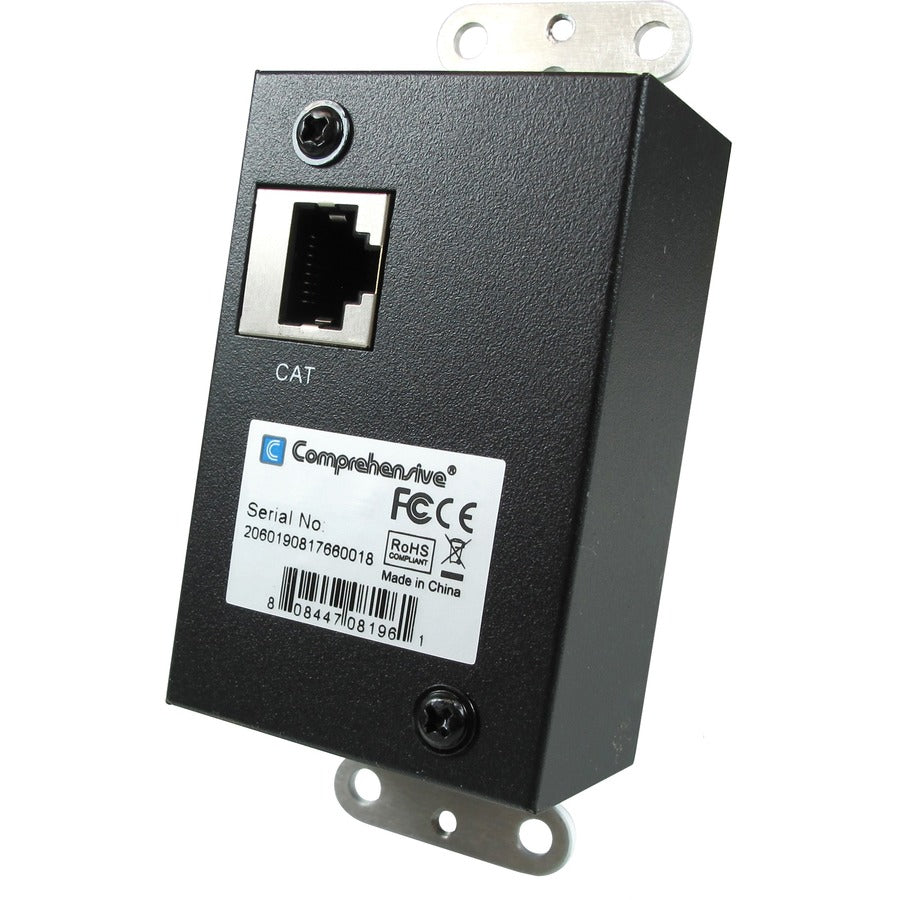

- Supports one USB-B port input in the wall plate transmitter

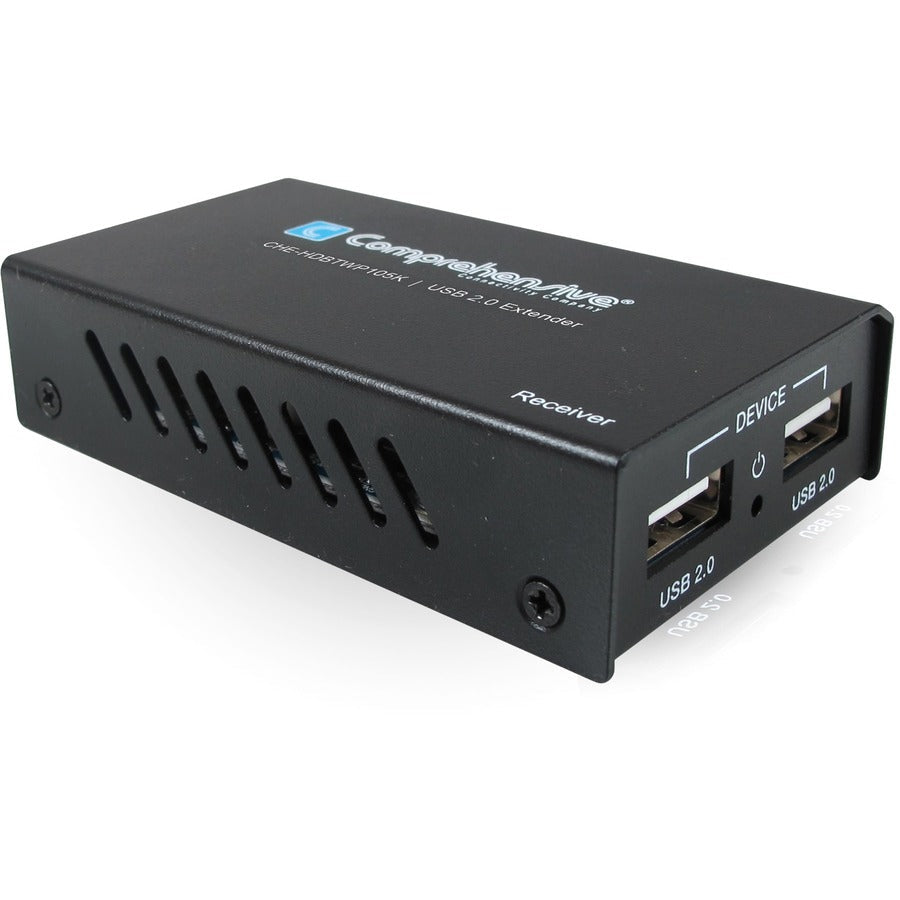

- Supports two USB 2.0 port outputs in the receiver
- Receiver is powered by a connecting 12V/1A power adapter
- Simply plug and play with no driver and setting installation required
- Compact design for easy and flexible installation
- 3 Year Warranty
Product Type: IR Transmitter Kit
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Comprehensive
Manufacturer: Comprehensive Connectivity Company
Product Name: Pro AV/IT USB 2.0 High Speed Single Gang Wall Plate Extender Kit up to 328ft
Manufacturer Part Number: CHE-HDBTWP105K
Manufacturer Website Address: http://www.comprehensiveco.com
Package Contents:
- 1 x USB 2.0 Extender Wall Plate Transmitter
- 1 x USB 2.0 Box Receiver
- 1 x USB 2.0 cable Type A to Type B (3ft)
- 1 x 12V/1A Power Adapter
- 1 x User manual
- 1 x Single Gang US Decora face plate
- 2 x Single Gang US Decora face plate screws
Limited Warranty: 3 Year
