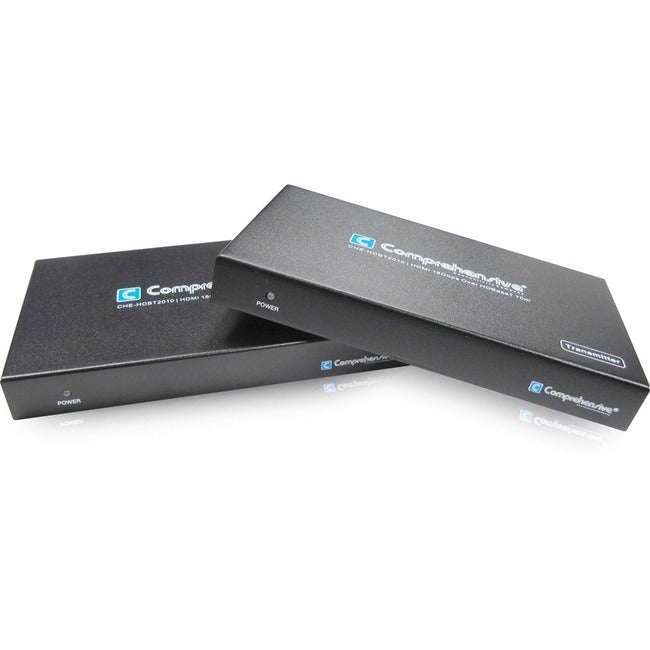

Comprehensive Pro AV/IT 4K (18Gbps) HDBaseT Extender Kit, 70m with POC, RS232, HDCP 2.2
Comprehensive's HDBaseT™ extender supports 18G Ultra-High-Definition (UHD) 4K@60Hz 2160p and can extend HDMI signals up to 70m (230ft) to a compatible display. The kit is designed to convert a full HDMI signal to a standard HDBaseT™ signal which can be conveniently transmitted over a single Ethernet (Cat5e or higher) cable. It also supports bi-directional POC so there is no need to run additional power. The kit also includes two IR receivers and two transmitters, allowing for bidirectional infrared control of a connected HDMI source and display.
Comprehensive's HDBaseT Extender Kit is perfect for showroom displays, lecture halls, retail sales displays, and anywhere in between. All components are RoHS Compliant and come with a 2 Year Hassle-Free Warranty.
Why choose Comprehensive?
Since 1974 Comprehensive has been the Pro A/V and IT industry standard for professional connectivity performance, reliability and value. That's why millions of Comprehensive connectivity products are in use at stadiums, in broadcast and recording studios, stages, boardrooms, classrooms, government installations and living rooms around the world. At Comprehensive, we stand for one thing above all else - exceeding our customer's expectations every time with new and innovative high value products and the same old-fashioned customer service that built our business. We know in today's busy world, you have more important things to worry about than connectivity products. That is why we strive every day to make your life, and connectivity a little easier.
- HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
- Video Resolutions up to 4K@60KHz (YUV 444)
- Bi-Directional POC; either TX or RX is powered by included power supply
- 10-bit HDR pass through
- HDMI High Bit Rate (HBR) audio pass through
- CEC bypass
- LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
- Transmission Distance (Cat6): 4K60 444 up to 40m, 1080p 60 up to 70m
- Kit includes Transmitter and Receiver
- RoHS Certified
Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Height: 0.79"
Transmitter Width: 6.18"
Transmitter Depth: 3.54"
Transmitter Weight (Approximate): 11.75 oz
Brand Name: Comprehensive
Manufacturer: Comprehensive Connectivity Company
Product Model: CHE-HDBT2010
Product Name: Pro AV/IT 4K (18Gbps) HDBaseT Extender Kit, 70m with POC, RS232, HDCP 2.2
Manufacturer Part Number: CHE-HDBT2010
Manufacturer Website Address: http://www.comprehensiveco.com
Package Contents:
- 1 x HDMI 18Gbps HDBaseT Transmitter
- 1 x HDMI 18Gbps HDBaseT Receiver
- 2 x Wideband IR TX
- 2 x Wideband IR RX
- 1 x 24V/1A DC Power Adaptor (US, CE/FCC/UL certified)
- Operation Manual
Limited Warranty: 2 Year
