Comprehensive HDMI Extender
- HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Supports 18Gbps video bandwidth
- The maximum extended transmission distance via a single Cat5e/6 cable: 296ft / 90m for 4K2K signal 330ft / 100m for 1080P signal
- De-embedded audio to analog stereo output on receiver
- Supports bi-directional IR, RS-232 and CEC pass-through
- HDR, HDR10+, Dolby Vision and HLG function supported
- Supports PoC (Power over Cable) function
- Compact design for easy and flexible installation
- Supports ARC (Audio Return Channel) function
- Supports USB KVM function
- 3 Year Warranty
Extend 4K HDMI, USB, Audio, LAN and RS232 Signals over a Single UTP Cable up to 330ft

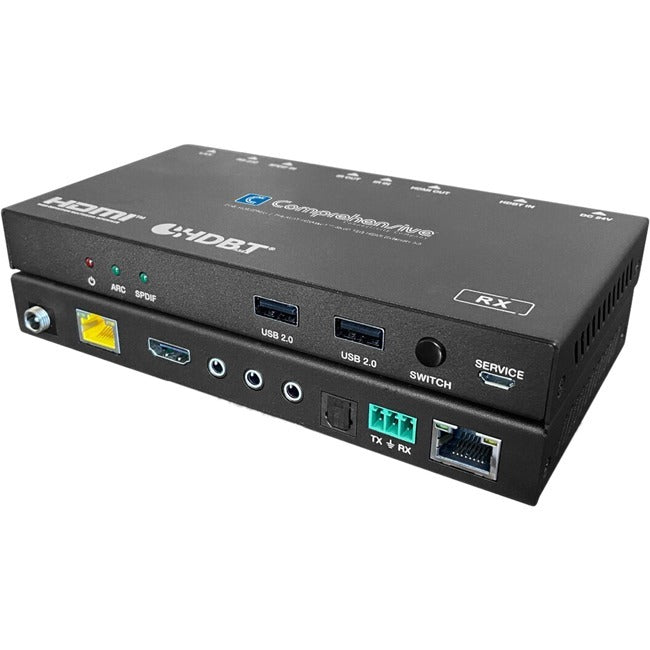

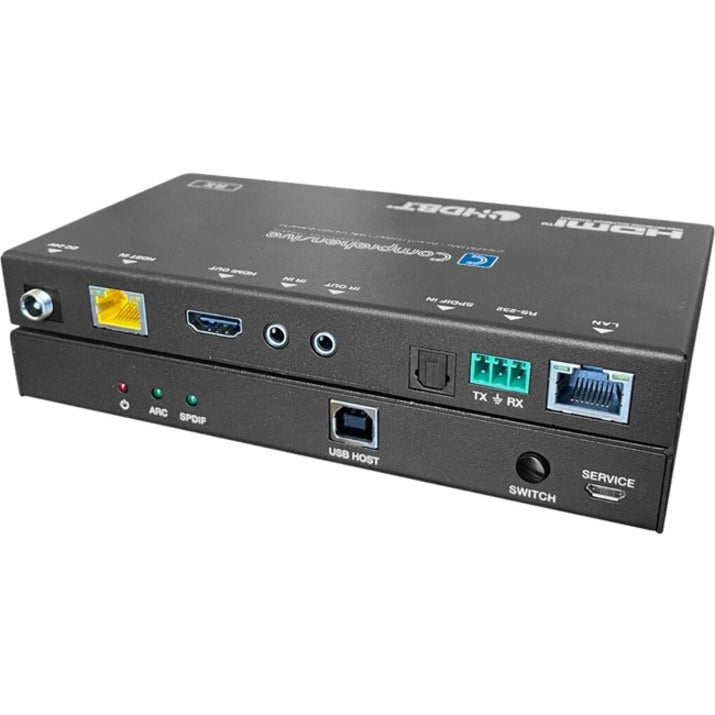

Comprehensive's CHE-HDBT255U is an HDBaseT™ 2.0 Extender with HDMI, USB, audio, LAN, IR and RS232 connectivity. This extender supports video resolutions up to 4K@60Hz 4:4:4 18Gbps. It also supports de-embedded audio for optical and L/R audio output and PoC function. In addition, this extender is equipped with bi-directional LAN, IR & RS232 pass-through which allows for source and display control up to 330ft.
The CHE-HDBT255U offers the most convenient solution for HDMI extension via a single Cat5e/6 with long distance capability and is the perfect solution for any application.
4K/UHD Capability @60Hz 18Gbps with 4:4:4 Chroma Subsampling
The CHE-HDBT255U extender set complies with the advanced HDCP 2.2 and HDMI 2.0 standards. Through the use of the highly efficient and visually lossless, DSC compression scheme, high bandwidth signals, previously unsupported by HDBaseT™, such as 4K@60Hz (4:4:4, 8-bit) or 4K@24Hz (4:4:4, 12-bit, HDR) can be extended without visual compromise or additional latency.
Dual USB Ports provide extension for KVM connectivity
The CHE-HDBT255U has USB ports providing USB hub functionality to make this an ideal KVM solution to transmit HDMI video signal as well as webcams, external drives, touch/interactive displays, keyboard & mouse when the PC is housed in a distant control room.
Bi-Directional PoC
The CHE-HDBT255U may be powered by a single 24V power supply on either the transmitter or receiver which makes install flexible and clutter free.
Digital and Analog Audio De-embedding
The CHE-HDBT255U is readily equipped with an optical and 3.5mm audio port for de-embedding Digital or analog audio from the HDMI output which makes it simpler to connect your audio amplifier or entertainment system.
Bi-Directional LAN, RS232 and IR Control Pass-through
The CHE-HDBT255U extends LAN, RS-232 and IR control signals over HDBaseT™, offering numerous possibilities for remotely interfacing a source or display with a control system.
Product Type: HDMI Extender
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Weight (Approximate): 6 oz
Receiver Weight (Approximate): 5.82 oz
Product Color: Black
Product Material: Metal
Brand Name: Comprehensive
Manufacturer: Comprehensive Connectivity Company
Product Name: HDMI Extender
Manufacturer Part Number: CHE-HDBT255U
Manufacturer Website Address: http://www.comprehensiveco.com
Packaged Quantity: 1
Package Contents:
- HDMI Extender
- 1 x Installation Guide
- 1 x Power Supply
- 2 x 3-pin Phoenix connector
- 4 x Mounting Brackets & Screws
- 1 x IR Emitter
- 1 x IR Receiver
Limited Warranty: 3 Year
