Comprehensive 4K HDMI extender with IR control up to 130ft (40m), 1080p 230ft (70m)
Comprehensive's CHE-1 HDMI extender is your low cost solution when an HDMI HD signal needs to be extended up to 230ft and 4K signals up to 130ft. The CHE-1 has signal transfer rates of up to 4.95Gbps with a full 1080p 60Hz and 10.2Gbps with 4K 30Hz video signal. The CHE-1 features EDID management, which allows and encourages source and display handshake for seamless integration. The CHE-1 also has an HDMI loop output for hookup of a local monitor or for cascading. In addition, this extender is also equipped with directional IR pass-through which allows for source or display control.
- 3 Year Warranty
- RoHs Compliant
- Signal rates up to 10.2Gbps

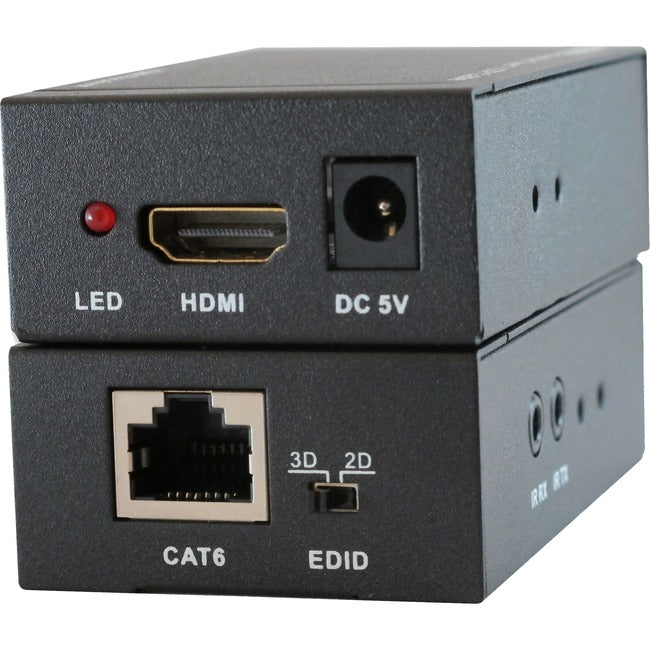

- Unit has an HDMI loop output to hook up a local monitor
- HDMI 1.4 and HDCP 1.4 compliant
- Compact design for easy and flexible installation
- Allow for cascading via additional HDMI loop out port
- Support copying EDID from receiver display or loop out display
- Follows standard IEEE-568B
- Extend full 1080p 60Hz video signal up to 230ft or 4K @30Hz video signal up to 130ft over cat5e/6
Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Condition: New
Transmitter Weight (Approximate): 4.66 oz
Receiver Weight (Approximate): 4.59 oz
Brand Name: Comprehensive
Manufacturer: Comprehensive Connectivity Company
Product Model: CHE-1
Product Name: 4K HDMI extender with IR control up to 130ft (40m), 1080p 230ft (70m)
Manufacturer Part Number: CHE-1
Manufacturer Website Address: http://www.comprehensiveco.com
Limited Warranty: 3 Year
