ComNet Ultra-High Throughput, Impact-Resistant Hardened Wireless Ethernet Kit

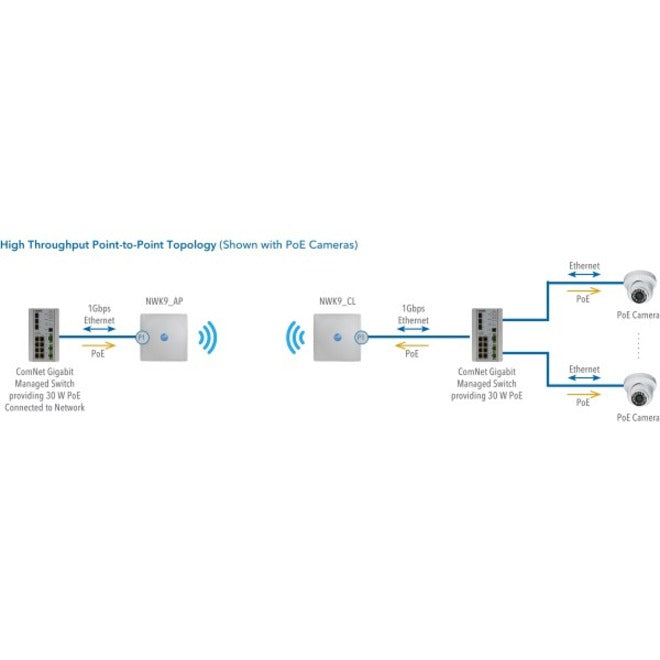

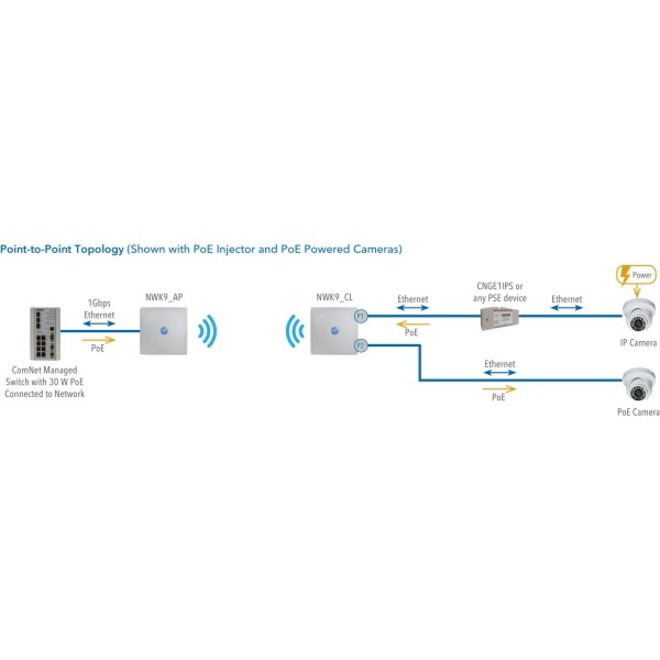

The NetWave® NWK9[E] ultra-high throughput, impact-resistant hardened wireless Ethernet transmission kit comes preconfigured with one Client and one Access Point. This single radio model was designed for high throughput point-to-point applications and comes with an integrated 19dBi, 17 beamwidth antenna. The NWK9[E] supports up to 500 Mbps throughput using 802.11ac MIMO technology. The units can be powered by an 802.3af/at PoE compliant device or through a soldseparately PoE injector with the second Ethernet port serving as an IEEE802.3at power source. The NWK9 is FCC certified for use in North America and the NWK9E is ETSI, DFS and TPC certified for use in the European Union.
- Distances up to 4 mi (FCC) with MAC lock enabled
- Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput
- Sturdy cast aluminum enclosure
- IEEE802.11ac Compliant
- Radio Internal Components covered by Lifetime Warranty
- Enclosure covered by Three Year Warranty
- Antenna Alignment Tools
- Status indicating LEDs provide rapid indication of critical operating parameters.
- Secure transmission: WPA2 - AES or TKIP encryption
- ComNet Antenna alignment feature eases installation and setup
- RF Spectrum Survey Tools
- ETSI Standards (EU Region only): - DFS Dynamic Frequency Selection - TPC Transmit Power Control
- Distances up to 2 mi (FCC) or 2km (ETSI)
- Ultra-high throughput
- Environmentally hardened for deployment in difficult unconditioned out-of-plant and roadside installations
- IEEE802.3at PoE-compliant PD
- Over current protection and 3 layers of Ethernet surge suppression on the PD port
Product Type: Radio Transmitter Kit
Environmentally Friendly: Yes
Environmental Certification: WEEE
Product Material: Aluminum
Brand Name: ComNet
Manufacturer: ACRE
Product Name: Ultra-High Throughput, Impact-Resistant Hardened Wireless Ethernet Kit
Manufacturer Part Number: NWK9
Manufacturer Website Address: http://www.acre-co.com
Package Contents:
- 1 x Client
- 1 x Access Point
- Mounting Hardware Kit
Limited Warranty: 5 Year
