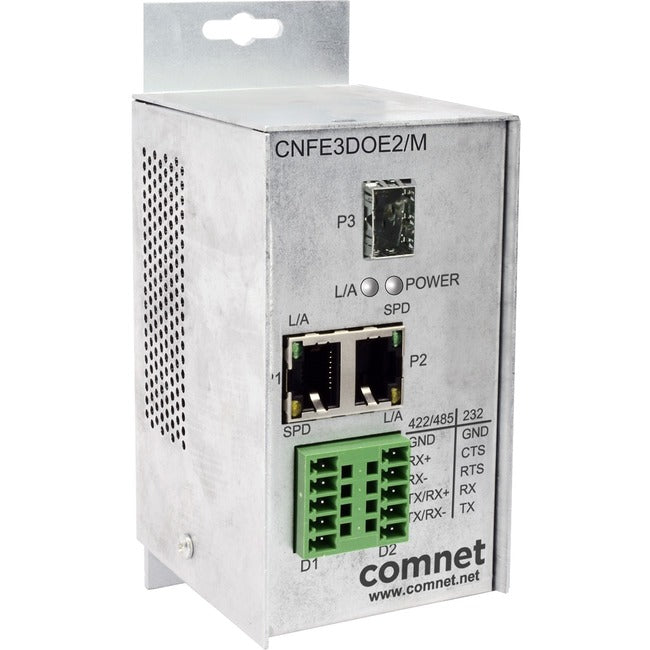

ComNet RS232/422/485 Data Over Ethernet Terminal Server
The ComNet CNFE3DOE2/M allows any combination of two RS-232, RS-422, or 2 or 4-wire RS-485 serial data circuits to be inserted onto any 10/100 Mbps Ethernet-based network. The CNFE3DOE2/M units include two serial data input/output ports, and three Ethernet ports featuring two electrical ports and one SFP port. It may be used to tunnel serial data over an IP network or as a media converter, for converting copper transmission media to fiber. Access one serial device from the Internet and another serial device from a local area network (LAN) using SSH or SSL. The CNFE3DOE2/M provides control of the remote hardware, as if it were connected directly to the PC COM port. A USB to serial converter may be required in new PCs without a DB9 serial connection.
Product Type: Terminal Server
Brand Name: ComNet
Form Factor: Wall Mountable
Manufacturer: ACRE
Product Model: CNFE3DOE2/M
Product Name: RS232/422/485 Data Over Ethernet Terminal Server
Manufacturer Website Address: http://www.acre-co.com
Weight (Approximate): 1.50 lb
