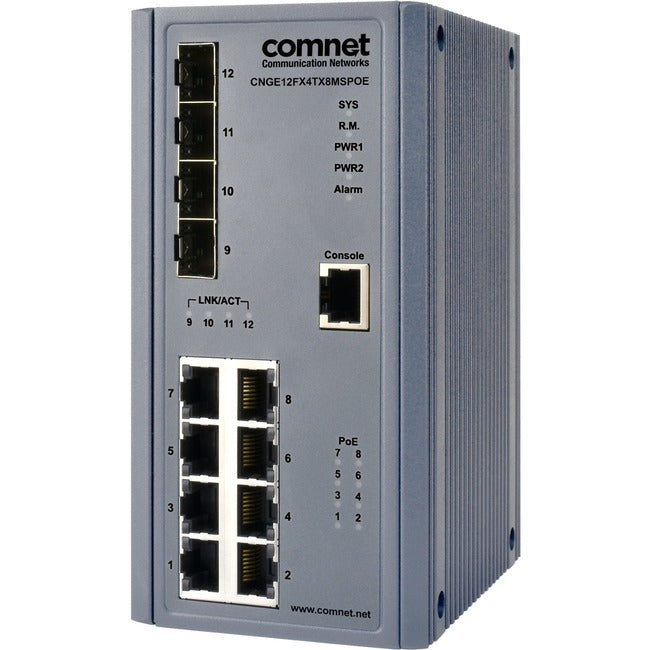

ComNet Layer 2 Managed Ethernet PoE Switch
The ComNet CNGE12FX4TX8MSPOE is a twelve port Managed Ethernet Switch designed to reliably operate in harsh, environmentally challenging applications. It features eight 10/100/1000BASE-TX and four 100/1000BASE-FX SFP ports. The SFP ports are 100/1000Mbps configurable for either multimode or single-mode optical fiber by the use of optional ComNet SFPs. Exclusive to ComNet is X-Ring, a feature that protects the network from interruptions or temporary malfunctions with fast recovery technology. Redundant DC inputs are included for uninterrupted operation in the event of a power supply failure. These network-managed layer 2 switches are optically and electrically compatible with any IEEE802.3 compliant Ethernet device.
Features
- Four (4) SFP ports support 100/1000 Mbps SFP modules
- Eight (8) electrical ports support 10/100/1000 Mbps Ethernet IEEE802.3 protocol
- IEEE 802.3af/at compliant, up to 30 W of PoE+ power available per port. 120 W total PoE power available.
- IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
- Supports Jumbo frame up to 9.6K Bytes
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Operating Temperature: -40 ? to +75 ?C, Functional to +85 ?C
- X-Ring Pro/RSTP/STP/MSTP
- SNMP v1/v2c/v3, RMON & IEEE 802.1Q VLAN for secure network management
- Supports IPV6 new internet protocol version
- Supports ACL, IEEE 802.1x, & TACACS+ for user security authentication
- Provides HTTPS/SSH protocol enhances network security
- Supports LLDP Protocol
- Multiple Notifications for warning of unexpected events, including relay fault alarm
- Port lock to prevent access from unauthorized MAC address
- Web-based, Telnet, Console (CLI), and Windows-based utility (eConsole) configuration
- Rigid aluminum housing
- Designed for wall or DIN rail mount installations (using optional DIN mounting bracket)
- Fastest Redundant Ethernet Ring: X-Ring+. Recovery time <15ms, with > 250 switches within the ring
- IP-Based Bandwidth Management & Application-Based QoS Management
- Port IP-Binding
- Expand your network capacity with the help of 8 networking ports and transfer your data quickly and easily
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Gigabit Ethernet port for ultra-fast network speeds
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Management capability provides control over setup and configuration of your network
- Built-in power supply to ensure all components are being supplied with accurate voltage
Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: WEEE
Brand Name: ComNet
Form Factor: Wall Mountable
Manufacturer: ACRE
Product Name: Layer 2 Managed Ethernet PoE Switch
Manufacturer Part Number: CNGE12FX4TX8MS
Manufacturer Website Address: http://www.acre-co.com
Package Contents:
- Layer 2 Managed Ethernet PoE Switch
- Power Supply
Limited Warranty: Lifetime
Weight (Approximate): 2.67 lb
