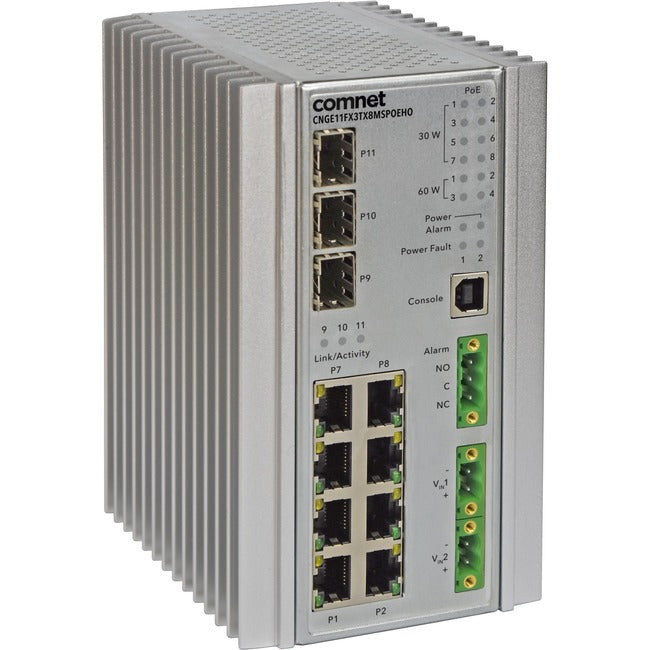

ComNet Industrially Hardened 11 Port Gigabit Managed Ethernet Switch
The ComNet CNGE11FX3TX8MS[POE][HO] has three 100/1000Base-FX SFP ports and eight 10/100/1000Base-TX ports. Two of the SFP ports support 2.5 Gbps SFPs for high speed communication in bandwidth intensive applications. All SFP ports utilize ComNet SFP modules for fiber and connector type and distance. The IEEE802.3-compliant unit offers multiple Ethernet redundancy protocols (MSTP/RSTP/ STP/ERPS (G.8032)) which protect your applications from network interruptions or temporary malfunctions by redirecting transmission within the network. The switch provides advanced IP-based management that can limit the maximum bandwidth for each connected IP device, allowing the user to adjust usage. Two models are available which supply Power over Ethernet (PoE). The CNGE11FX3TX8MSPOE model provides eight electrical ports supporting up to thirty watts of power. On the CNGE11FX3TX8MSPOEHO model, four of the eight PoE ports can support up to sixty watts of PoE power. All PoE ports are IEEE802.3at compliant.
- Features 11 networking ports to easily establish a local network or expand your existing one
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Can work as layer 3 routing for scalable network design
- Managed switch provides a reliable foundation for your network
- No need for power lines and outlets, the switch is capable of obtaining power from the PoE source
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: CNGE11FX3TX8MS
Brand Name: ComNet
Form Factor: DIN Rail Mountable
Manufacturer: ACRE
Product Model: CNGE11FX3TX8MSPOEHO
Product Name: Industrially Hardened 11 Port Gigabit Managed Ethernet Switch
Manufacturer Part Number: CNGE11FX3TX8MSPOEHO
Manufacturer Website Address: http://www.acre-co.com
Limited Warranty: Lifetime
Weight (Approximate): 2.65 lb
