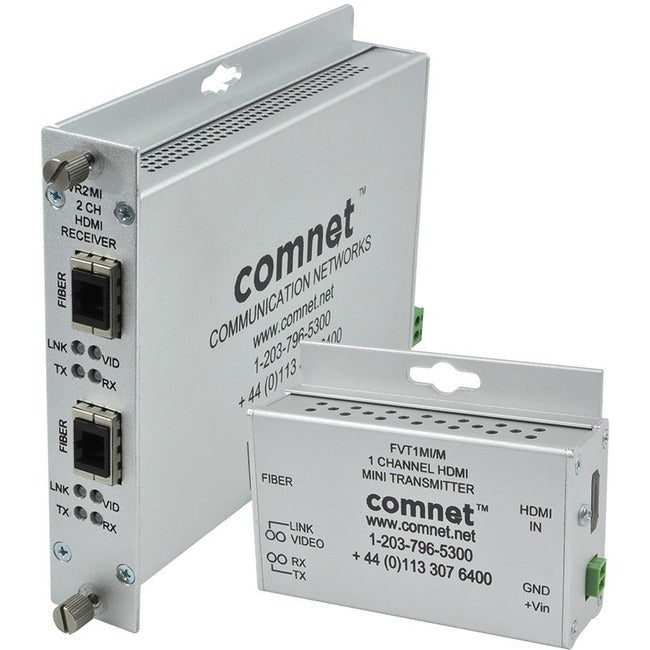

ComNet FVT2MI Transceiver/Media Converter
The ComNet TM FVT/FVR(X)MI[/M] features an HDMI TM fiber link for uncompressed high-resolution bi-directional communication with full HDCP copyright protection, EDID and CEC connection functionality. The high-resolution signal is transmitted over one multimode fiber using multiple wavelengths up to 1000m. Resolutions of up to 1080p60 are supported. HDCP encryption is not affected or compromised by the FVT/FVR(X)MI units.
The FVT/FVR(X)MI[/M] transmits pixel-for-pixel images and full 24-bit scan rate with no contouring or bit reduction. This unit is fully compatible with HDMI TM compliant sources and monitors, supporting all possible horizontal and vertical sync configurations. The CEC support provided by these units allows the user to communicate with up to ten CEC-enabled devices connected via HDMI TM.
The FVT/FVR(X)MI[/M] transmits up to 8 channels of uncompressed audio at sample sizes of 16-bit, 20-bit and 24-bit, with sampling rates of 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz. This series also supports any IEC 61937-compliant compressed audio stream, such as Dolby Digital and DTS, and up to 8 channels of one-bit DSD audio (as used on SACD/Super Audio CDs), and at rates up to four times that of Super Audio CD, and lossless compressed audio streams such as Dolby True HD and DTS-HD Master Audio.
A locking screw prevents the connectors from accidental disconnection.
Packaged in either a small stand-alone housing or the exclusive ComNet ComFit housing, the FVT/FVR(X)MI standard size product may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
- The Rack-mountable provides convenient installation
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Brand Name: ComNet
Form Factor: Wall Mountable
Manufacturer: ACRE
Product Model: FVT2MI
Product Name: FVT2MI Transceiver/Media Converter
Manufacturer Part Number: FVT2MI
Manufacturer Website Address: http://www.acre-co.com
Package Contents:
- FVT2MI Transceiver/Media Converter
- 9 Volt DC Plug-in Power Supply
Limited Warranty: Lifetime
Weight (Approximate): 1.98 lb
