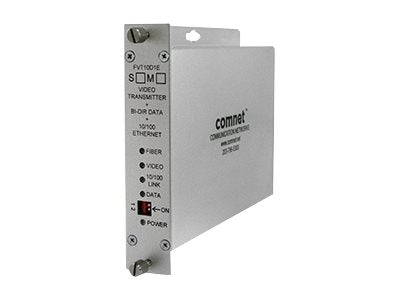

ComNet FVT10D1ES - Video/serial extender - 100Mb LAN - up to 29.8 miles - 1310 nm / 1550 nm
- 10-bit digital video transmission
- One bi-directional data channel
- One 10/100 BASE-T/TX fast Ethernet port
- IEEE 802.3 compliant
- Automatic MDI/MDI-X crossover
- Automatic resettable fuses on all power lines
- Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
- Circuit boards are conformally coated to extend humidity tolerance to condensation conditions
The ComNet FVT/FVR10D1E series video transmitter/receiver and data transceiver supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C digital video with one bi-directional data channel plus one 10/100 Mbps fast Ethernet port. The modules are universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces and most data protocols. It also supports "up-the-coax" data transmission from most major manufacturers. Packaged in the exclusive ComNet ComFit housing, the FVT/ FVR10D1E units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.
-
Robust environmental adaptability
Designed to withstand extreme conditions, this device operates flawlessly in temperatures ranging from -40°C to 75°C and humidity levels of 0 to 95% (non-condensing), ensuring reliable performance in any environment.
-
Versatile connectivity options
Equipped with multiple interface options including RS-232/422/485, Ethernet 10/100, and video connections through RJ-45, ST single-mode, and BNC connectors, this device offers comprehensive connectivity solutions for various applications.
-
Durable and reliable
With an impressive MTBF (Mean Time Between Failures) of 100,000 hours and compliance with NEMA TS-1 and TS-2 standards, this device promises longevity and consistent performance, minimizing downtime and maintenance costs.
