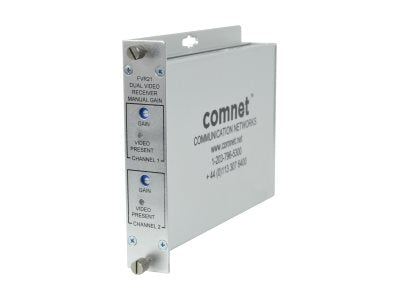

ComNet FVR21/LV - Video extender - 2 ports - up to 2.5 miles - 850 nm
- Full color compatibility
- Designed to meet full compliance with the environmental requirements
- AM video transmission
- Manual gain control
- Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
The ComNet FVR21/LV dual video receiver detects two independent AM video signals in one module on two independent multimode fiber optic cables. The module is not a multiplexer. The unit incorporates a “Loss of Video” relay for each channel. Upon loss of video signal or optical fiber break, the normally closed relay opens. The module is ideal for CCTV installations and the rack mount version can be used to double the fixed video capacity of the C1 rack for up to 28 independent video channels per card cage. The modules utilize Manual Gain Control.
