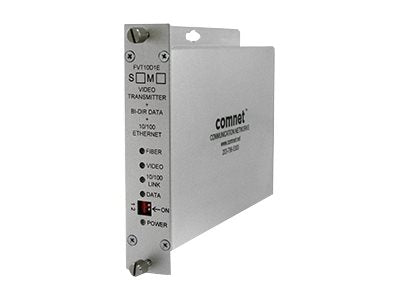

ComNet FVR10D1EM - Video/serial/network extender - up to 1.9 miles - 1310 nm / 1550 nm
- 10-bit digital video transmission
- One bidirectional data channel
- One 10/100 BASE-T/TX fast Ethernet port
- IEEE 802.3 compliant
- Automatic MDI/MDI-X crossover
The ComNet FVR10D1E series video and data transceiver supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C digital video with one bidirectional data channel plus one 10/100 Mbps fast Ethernet port. The modules are universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces and most data protocols.
-
Robust performance
Designed to operate in extreme conditions, the FVR10D1EM thrives in environments with temperatures ranging from -40°C to 75°C and humidity levels of 0 - 95% (non-condensing), ensuring reliable performance where lesser devices fail.
-
Versatile connectivity
This device boasts a variety of interfaces including RS-232/422/485, network, and video connections, complemented by ST multi-mode, RJ-45, and BNC connectors, respectively, offering comprehensive connectivity options for diverse operational requirements.
-
Extended operational life
With an MTBF of 100,000 hours, the FVR10D1EM sets a benchmark for reliability, minimizing downtime and maintenance costs over its lifecycle.
-
Seamless integration
Compliant with NEMA TS-1 and TS-2 standards, and featuring IEEE 802.3 compliance for networking, this device ensures compatibility and seamless integration into existing infrastructure, enhancing operational efficiency without the need for extensive modifications.
-
Enhanced signal quality
The device's ability to extend video, serial, and network signals up to 3 km with auto-uplink (auto MDI/MDI-X) support and dual optical wavelengths (1310 nm / 1550 nm) ensures high-quality, uninterrupted data transmission over long distances.
