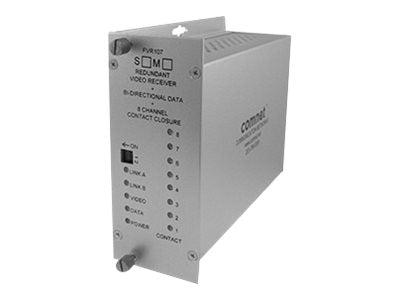

ComNet FVR107S1 - Video/serial/contact closure extender - up to 29.8 miles - 1310 nm / 1550 nm - 2U
- 10-bit digital video transmission
- Bi-directional data channel supports RS232, RS422 or RS485 (2 or 4-wire) interfaces.
- Distances up to 30 miles (48 km)
- Eight SPST latching relays (with individual LED indicators)
- Two separate alarm relay outputs indicate when a fiber link is lost and which optical port.
- Dual optical port Redundant Point-to-Point (RPP) configuration
- Exceeds all requirements for RS-250C short-haul video transmission: True broadcast video performance
- Compatible with all NTSC, PAL, or SECAM CCTV camera systems
- Automatic resettable fuses on all power lines
- Bi-color LED status indicators confirm operating status
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use - ComFit
The ComNet FVR107 series of optical video links provides 10-bit digital video, 10 Mhz bandwidth, short haul video quality, one bi-directional data channel and a dual optical port redundant Point-to-Point topology plus eight contact closures and two alarm relays. The redundant Point-to-Point topology using the dual optical ports provide fail safe operation in the event of loss of one fiber. Each optical port uses wavelength division multiplexing (WDM) to both transmit and receive on one optical fiber. Microprocessor-based logic sends the contact information in packets that are ordered and encoded, ensuring extremely robust transmission. Packets that are garbled, packets out of sequence, and transmission bit errors will not cause random changes of state on the contact relays. Also, the mechanical latching relays maintain their state even when the unit loses power. The data channel supports RS232, RS422 and 2 wire and 4 wire RS485. Plug-and-Play design ensures ease of installation and no electrical or optical adjustments are ever required.
