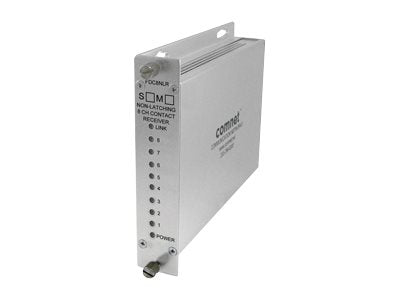

ComNet FDC8NLRS1 - Contact closure extender - up to 42.9 miles
- Receive up to eight contact closures over one optical fiber
- Eight channel Point-to-Point architecture
- Power and eight individual channel status LED indicators
- Eight solid-state relays
- Built-in relay surge protection
- Automatic resettable solid-state current limiters
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use
The ComNet FDC8NLR 8-channel contact closure receiver unit provides up to eight independent normally-open (NO) dry contact closures over one multimode or single-mode optical fiber. Microprocessor-based logic in the FDC8 transmitter detects a customer-furnished switch or contact closure, and encodes the closure into robust data packets that are mapped and transmitted to the FDC8NLR receiver. Packets received with excessive bit errors will not result in random changes in the receiver relay contact resting or actuated states, making this system ideal for mission-critical remote switching applications. Solid-state non-latching relays are utilized for high level of long-term system reliability and trouble-free operation. The relay contacts automatically default to a normally-open state in the event of a loss of prime operating power or a loss of the received optical signal. These receiver modules incorporate status indicating LEDs for rapidly providing a local indication of each contact closure channel, optical link continuity, and operating power. Plug-and-play design ensures ease of installation and operation, and no optical or electrical adjustments are ever required.
-
Robust environmental tolerance
Designed to operate flawlessly in conditions ranging from -40°C to 75°C and with a humidity range of 0 - 95% (non-condensing), ensuring reliability in diverse environments.
-
High durability
Boasts an impressive MTBF (Mean Time Between Failures) of 100,000 hours, highlighting its longevity and reducing maintenance needs.
-
Advanced connectivity
Features a single ST single-mode female network interface and eight terminal block contact closures, providing versatile connectivity options for various applications.
-
Enhanced protection
Incorporates over-current and surge protection, safeguarding the device against electrical anomalies and ensuring uninterrupted operation.
-
Extended operational range
Supports a maximum transfer distance of 69 km, facilitating reliable long-distance communication without compromising signal integrity.
