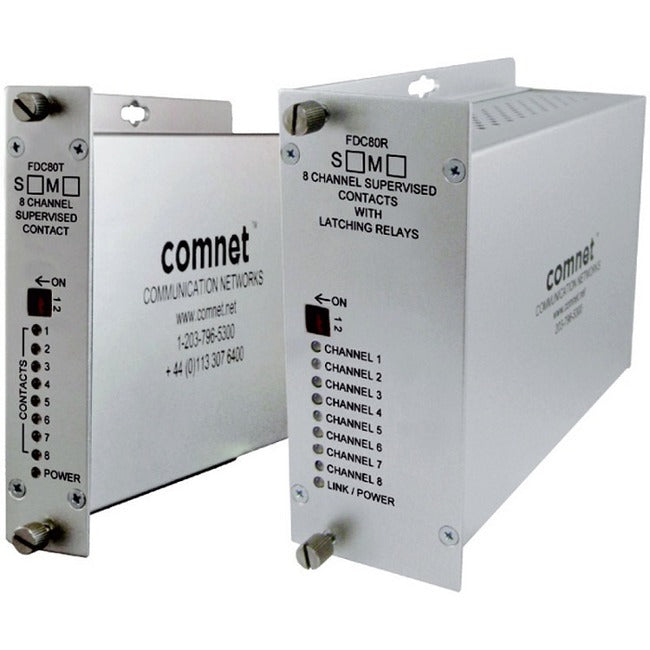

ComNet FDC80 Series 8-Channel Supervised Contact Closure
The ComNet™ FDC80 Series contact closure transmitter and receiver units provide transmission of up to eight independent supervised or unsupervised dry switch or relay contact closures over a single optical fiber, or any two-wire RS-485 copper circuit. Microprocessor-based logic transmits the contact closure information in packets that are ordered and encoded, ensuring extremely robust and reliable transmission. Packets that are garbled, or packets out of sequence with transmission bit errors will not cause random changes of state in the FDC80R receiver unit relays. The supervising function in the FDC80T transmitter allows for the detection of short and open circuit conditions, and normally open or normally closed contact inputs are supported. System faults are displayed via LED status indicators, and user-programmable summary fault alarm contacts are triggered in the FDC80R receiver unit. The FDC80R receiver is offered in both latching and non-latching relay configurations. External series and shunt resistors are included for each of the 8 contact input channels, for contact supervision. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted, or may be DIN-Rail mounted by the addition of model DINBKT1 adaptor plate. Fully compliant with the requirements of NEMA TS-1/TS-2, these industrially-hardened units are designed for use in virtually any out-of-plant environment.
Product Type: Channel Transmitter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: FDC80
Brand Name: ComNet
Form Factor: Wall Mountable
Manufacturer: ACRE
Product Name: FDC80 Series 8-Channel Supervised Contact Closure
Manufacturer Part Number: FDC80NLTM1
Manufacturer Website Address: http://www.acre-co.com
Package Contents:
- FDC80 Series 8-Channel Supervised Contact Closure
- Power Supply
- External series
- Shunt resistors
Limited Warranty: Lifetime
