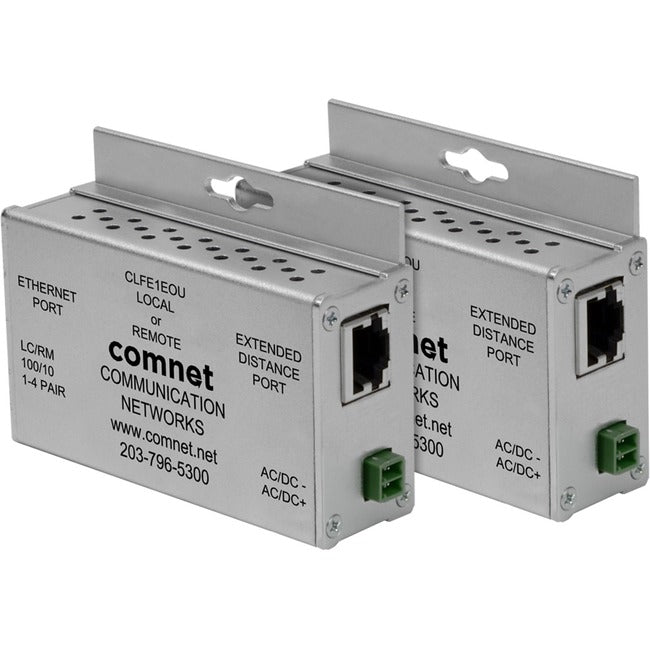

ComNet Ethernet-over-Copper Extender With Pass-Through PoE
The ComNet CopperLine® Ethernet over copper line kit supports one channel of 10/100Mbps Ethernet with Pass-through PoE over twisted pair cable (CAT-5, UTP), or over coaxial cable. The single channel units included in the kit may be powered by a PoE switch or the included power supply. These units extend a powered device (PD) over long distance copper. DIP switches are provided for user-selection of local or remote, 10 or 100Mbps, and 1 pair or 4 pair (UTP) settings.
- Extended Pass-through PoE meets the IEEE 802.3af standard for Power over Ethernet
- Extends Ethernet up to 5,000 feet (1,524 m) at 10 Mbps or 2,000 feet (610m) at 100 Mbps over Coaxial cable
- Extends Ethernet up to 3,000 feet (914 m) at 10 Mbps or 2,000 feet (610 m) at 100 Mbps over UTP cable
- Transmits individual Ethernet data channels with Passthrough PoE over standard UTP or Coaxial cable
- Designed and manufactured in the USA
- Complies with all major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPs
- User-selectable data rate for maximum bandwidth and transmission distance utilization.
- Symmetric Bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance
- Supports Multicast, Unicast and Jumbo Frame
- Full 10/100 Mbps Bandwidth
Product Type: Network Extender
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: CLKFE
Brand Name: ComNet
Length: 3.3"
Manufacturer: ACRE
Product Model: CLKFE1EOU
Product Name: Ethernet-over-Copper Extender With Pass-Through PoE
Product Line: CopperLine
Manufacturer Part Number: CLKFE1EOU
Manufacturer Website Address: http://www.acre-co.com
Packaged Quantity: 2
Limited Warranty: Lifetime
