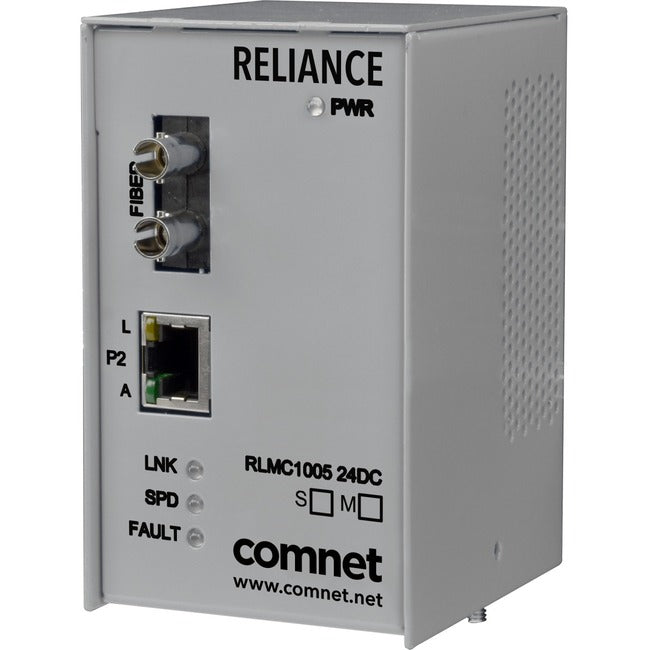

ComNet Electrical Substation-Rated 10/100 Mbps Media Converter
Newly expanded, the ComNet RLMC100X is a substation-rated and industrially hardened Ethernet media converter. Designed to the requirements of IEC 61850-3, IEEE 1613 Class 2, EN50155, and NEMA TS-1/TS-2, it is intended for deployment in environments where high levels of electromagnetic noise and interference (EMI) and severe voltage transients and surges are routinely encountered, such as electrical utility substations and switchyards, heavy manufacturing facilities, trackside and roadside electronic equipment, and other difficult out-of-plant applications. The 100BASE-FX port supports conventional optical transmission media by fixed 2-fiber ST optical connectors. User-selectable link fault pass-through provides remote indication of a network fault, and a summary fault alarm provides a local or remote indication via a dry contact closure in the event of loss of optical link or operating power. The 10/100BASE-TX port supports both auto-negotiation and automatic MDI/MDI-X crossover for full and half-duplex operation; manual MDI/MDI-X switching is not required.
The internal/self-contained 12 to 24 VDC or 48 VDC power supply features redundant power inputs for the highest possible reliability. A high voltage AC/DC option is also available. The simple to install, plug-and-play RLMC100X(M,S)2 is DIN-rail or panel-mountable, and is ideal for mission-critical applications where very high levels of reliability and network availability are of the utmost importance.
Features
- Link fault pass-through provides a remote indication of a network fault
- 12 to 24 VDC, 48 VDC or HV AC/DC (88 to 300 VDC/85-264 VAC) operating power options
- Internal/self-contained high-reliability power supply eliminates the need for an external power supply, and a screw terminal block connects directly to the power source for permanent, reliable, and maintenance-free operation
- Status indicating LEDs provide rapid indication of critical operating parameters.
- Summary fault alarm provides a local or remote indication via a dry contact closure in the event of loss of optical link or operating power
- Rugged 19-gauge galvanized and powder-coated steel enclosure.
- Made in the USA
- Full duplex transmission of 10/100 Mbps Ethernet: (1) 10/100BASE-TX port and (1) 100BASE-FX optical port
- Designed to the requirements of IEC 61850-3 and IEEE 1613 Class 2 for electrical utility substations, EN50155 and EN50121-4 for railway applications, and NEMA TS-1/TS-2 for traffic signal control equipment and IEC/EN60950-1
- Extended ambient operating temperature range of -40 to +85 C, for use in virtually any environment. Optional conformal coating available for humidity with condensation or airborne particulate matter environments
- 12 to 24 VDC and 48 VDC input power supply versions feature redundant power inputs, for extremely high levels of reliability and availability
- No fans or forced-air cooling; cooling via natural convection eliminates unreliable and troublesome fans/moving parts, with no periodic maintenance requirements.
- Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput
- Lifetime Warranty
- Designed for wall or DIN rail mount installations
- Attach multiple devices together or expand the number of devices connected to your existing network by using 2 transceiver/media converter
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- With 100Base-FX technology get up to 100Mbps data transfer rate over optical fiber cable
- Fits neatly into a panel and allows you to keep your cables tidy and organized
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: RLMC100X(M,S)2
Brand Name: ComNet
Form Factor: Rail-mountable
Manufacturer: ACRE
Product Name: Electrical Substation-Rated 10/100 Mbps Media Converter
Manufacturer Part Number: RLMC1003S2/48DC
Manufacturer Website Address: http://www.acre-co.com
Package Contents:
- Electrical Substation-Rated 10/100 Mbps Media Converter
- Panel-mounting Adapter
Limited Warranty: Lifetime
Weight (Approximate): 1.50 lb
