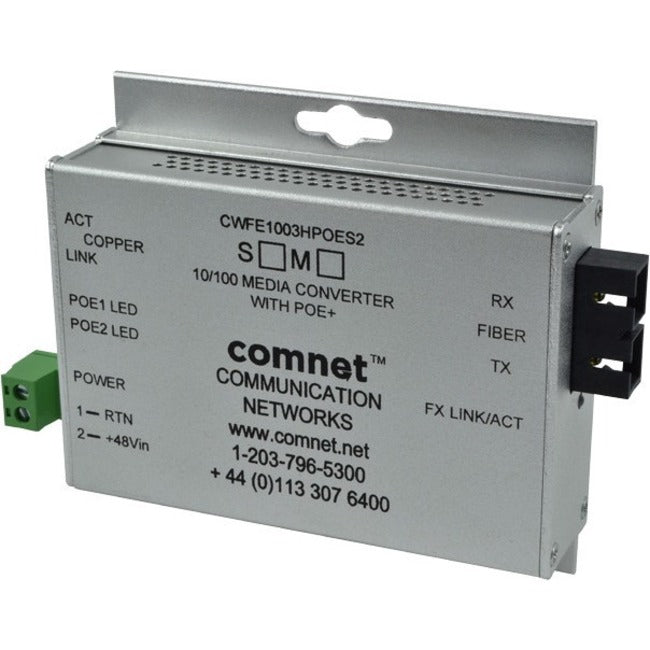

ComNet Commercial Grade 100Mbps Media Converter with 48V POE, Mini
The ComNet™ CWFE100(X)POE/M Series 2-port media converters provide fullduplex fiber optic transmission of a single channel of 10/100 Mbps Ethernet data (10/100 BASE-TX) through multimode or single mode optical fiber. Type ST, SC or SFP optical connectors are available. They provide full compliance with IEEE 802.3at as Power Sourcing Equipment (PSE), with a maximum power of 30 watts in Mode A or Mode B, making them ideal for those applications where the remote equipment draws significant power. A higher output 60 watt model is available. Mode A and mode B are selected by the media converter automatically. The Ethernet electrical interface auto-negotiates to either 10 or 100 Mbps without the need for any user selection, and the optical interface operates at 100 Mbps (100-FX). A power supply providing 48 VDC at 1.25A is provided with each converter. Plug-and-play design ensures ease of operation, and no optical adjustments are ever required.
- Expand your network capabilities with this 3 transceiver/media converter
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over optical fiber cable
- Desktop installation makes it ideal for deployments outside the wiring closet
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: CWFE100(X)POE/M
Brand Name: ComNet
Form Factor: Rail-mountable
Manufacturer: ACRE
Product Model: CWFE1005POESHO/M
Product Name: Commercial Grade 100Mbps Media Converter with 48V POE, Mini
Manufacturer Part Number: CWFE1005POESHO/M
Manufacturer Website Address: http://www.acre-co.com
Package Contents:
- Commercial Grade 100Mbps Media Converter with 48V POE, Mini
- Power Supply
Limited Warranty: 5 Year
