ComNet CNFE3TX2CXMSU 1 SIM Cellular, Ethernet Modem/Wireless Router

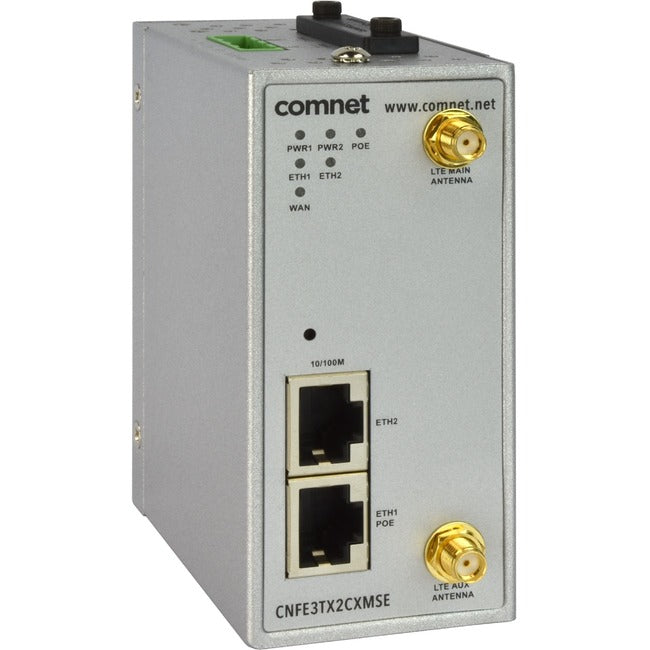

The ComNet CNFE3TX2CXMS(U,E) is an edge Cellular VPN Gateway with 2 10/100TX Ports (1 LAN, 1 WAN) and 1 standard SIM card slot. It supports 802.1X and MAC filter for security control. The Gateway can be configured to operate in 3 modes: Dynamic/Static IP route, PPPoE authentication, and Modem dial up. The units can be powered by an IEEE 802.3af PoE compliant device on port 1 or through the 4-Pin terminal block with dual DC Inputs. The Gateways are DIN Rail mountable and feature a rigid IP-30 housing.
FEATURES
- Supports 802.1X Authentication
- HTTPS Support for Secure Management
- 4G LTE Modem Built In
- OpenVPN, IPsec VPN, PPTP VPN
- NAT Support (Virtual Server, Port Trigger, DMZ and UPnP)
- 1KV Isolation for PoE PD Port
- DIN-Rail and Wall Mountable
- Event Warning by Syslog, Email and SNMP Trap
- Cellular Antennas included
- Certified for AT&T Networks
APPLICATIONS - Remote locations where network access is required
- Wireless Perimeter Surveillance
- Temporary Network Surveillance Deployments
- Site to Site VPN
- Redundant Gateway
- Electrical substation SCADA and distribution automation networks; protective relaying systems; power transmission & distribution systems; remote/unattended wind farm, hydroelectric, and solar/photovoltaic power generation facilities; and other electrical utility-specific applications
- NERC-CIP-014 compliance for perimeter security, surveillance monitoring, and controlled access to electrical substations and power generating facilities, and other critical infrastructure/high value, mission-critical sites and assets
- Industrial/Factory Automation & Process Control SCADA Networks
- Distribution Automation: Remote status indication, monitoring, and control of reclosers, capacitor banks, voltage regulators, and other remotely-located electrical utilityspecific equipment, via the internal cellular radio link
- Integrated IP-Video, VOIP, and Data Transmission Networks
- Wastewater treatment plants, and suppliers of potable drinking water
- ITS/transportation closed-loop signalization and VMS/VDS/ surveillance/incident detection systems
- City Center security and surveillance monitoring
- Military, defense, and government communications networks
- Savor simultaneous downloading and seamless streaming
- Provides electric power over RJ45 ports along with data to devices on your network, such as IP cameras or network equipment
- Link your router traffic to your wired network with the Fast Ethernet port
- Tuck the router out of the way with its wall mounting feature
Product Type: Modem/Wireless Router
Environmentally Friendly: Yes
Environmental Certification: WEEE
Brand Name: ComNet
Form Factor: DIN Rail Mountable
Manufacturer: ACRE
Product Model: CNFE3TX2CXMSU
Product Name: 4G LTE Cellular VPN Gateway
Manufacturer Part Number: CNFE3TX2CXMSE
Manufacturer Website Address: http://www.acre-co.com
Package Contents:
- 4G LTE Cellular VPN Gateway
- 2 SMA Female Antennas (Cellular)
- DIN-Rail Mount, and Wall Mount
- DC Plug-in Power Supply, 90-264 VAC, 50/60 Hz (Included in North America only, for benign 0 to 50C applications. Hardened power supply available, consult factory)
Limited Warranty: Lifetime
