ComNet Bi-Directional Contact Closure Transceiver
The ComNet™ FDC10 Series bi-directional contact closure transceiver provides bi-directional transmission of contact closure over one multimode or single mode optical fiber. The transceiver has a contact input and a 0.5 amp contact output. The bi-directional contact closure module has two relay outputs and one relay input. One relay output follows the "relay input" at the remote end. When the remote "relay input" is shorted, the local relay output is closed and vice-versa. The second relay output is closed when "carrier" is detected from the remote end, this indicates that the optical fiber is connected and that the remote end has power and is operating.
FEATURES
- Transmits a single contact closure in one or two directions
- Distances up to 69 km (43 miles)
- 30 VDC, 0.5 amp relay output, normally open
- Point-to-Point transmission architecture
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Plug-and-play design ensures ease of installation requiring no electrical or optical adjustments.
- Relay contact for Carrier Detect (normally closed with carrier present)
- Automatic resettable solid-state current limiters
- Voltage transient protection on all power and signal input/ output lines provides protection from power surges and other voltage transient events.
- FDC10(M,S)1(A,B) models are housed in a smaller-sized package for stand-alone mounting only, for use in those applications where space may be limited
- FDC10R(M,S)1(A,B) ComFit models may be utilized as a stand-alone package, or may be mounted within the ComNet C1 Card Cage, and is fully hot-swappable
- Indicating LEDs are provided for confirming equipment operating status. The relay position (open for RED and closed for GREEN) is indicated by separate bi-color indicators for each relay.
- Lifetime Warranty
APPLICATIONS
- Alarm Event Triggering
- Building Automation and Environmental Control Systems
- Fire and Alarm Systems
- Gate Control
- PIR Signal Transmission
- Traffic Signal Control Equipment
- Connect different types of media within a network with this single port
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- The Standalone provides convenient installation
Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: FDC10
Brand Name: ComNet
Form Factor: Hot-swappable
Manufacturer: ACRE

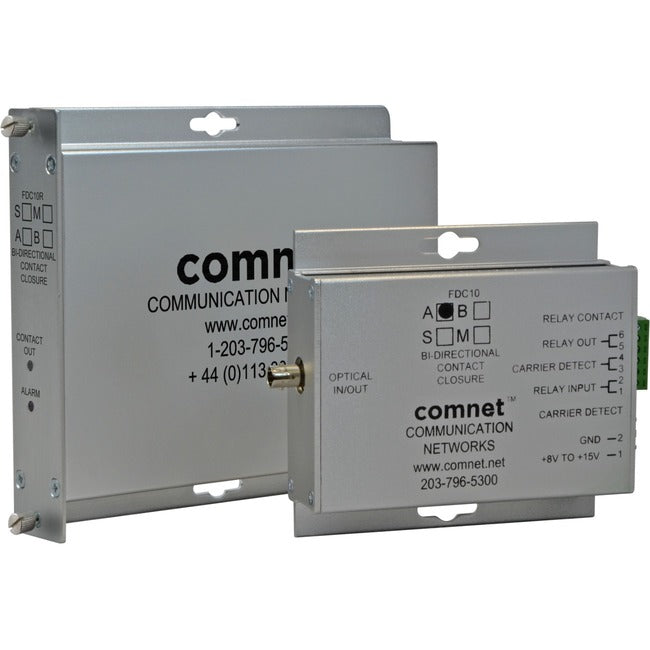

Product Model: FDC10RM1B
Product Name: Bi-Directional Contact Closure Transceiver
Manufacturer Part Number: FDC10RM1B
Manufacturer Website Address: http://www.acre-co.com
Package Contents:
- Bi-Directional Contact Closure Transceiver
- Power Supply
Limited Warranty: Lifetime
