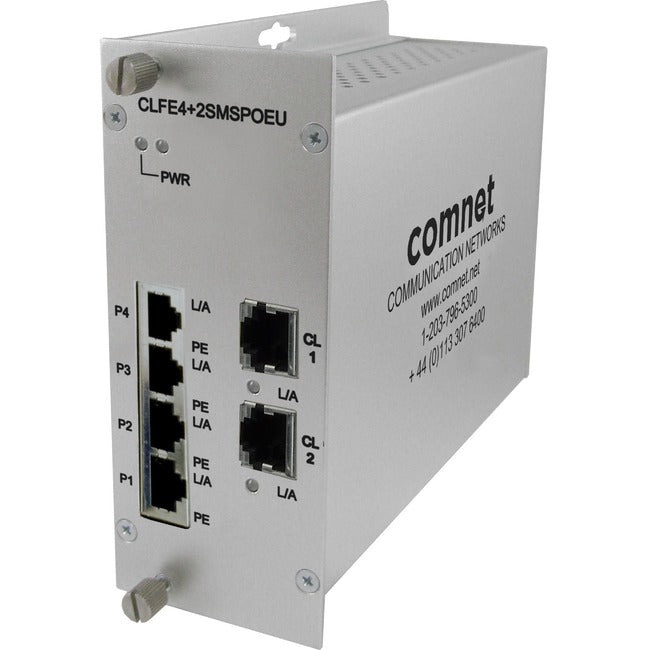

ComNet 10/100TX Drop/Insert/Repeat 4TX/2EX Self-Managed Switch with PoE+
The ComNet CLFE4+2SMS[POE](C,U) is a six-port Ethernet switch with add/ drop/repeat functionality and provides 4 copper ports operating at 10/100Mbps and is designed to combine four electrical ports along with the incoming Cat5, UTP or Coax CopperLine® extension port into a further CopperLine extension port that forwards this data to the next CopperLine network device. There is no programming required to use this product. The ComNet CLFE4+2SMS(C,U) comes pre-programmed, preventing network video flooding with DIP switch selection of the first CopperLine port as an uplink or as an unmanaged switch. Ports 1-4 of the CLFE4+2SMSPOE(C,U) can supply up to thirty (30) watts of Power over Ethernet (PoE) and incorporate PoE+ features based on the IEEE 802.3at standard.
Features
- Full 10/100 Mbps Bandwidth
- 10/100 Mbps Ethernet 4 10/100Mbps RJ-45 Ports 2 10/100Mbps UTP/Coax Extended Distance Ports
- IEEE 802.3 compliant
- Extended distance ports are switch-selectable for 10 Mbps or 100 Mbps data rate, 1 pair or 4 pair in UTP mode
- IEEE802.3at PoE+ 30W (PoE models only)
- Supports Multicast, Unicast
- Extended distance over UTP or Coaxial Cable
- Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
- ComFit standard form factor is interchangeable between stand-alone or rack mount use.
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput
- Standard ComFit models are hot-swappable.
Applications
- 10/100 Mbps Ethernet
- High Speed Computer Links
- Drop/Insert/Repeat Ethernet data over extended distances
- Factory Automation with UTP
- Quickly and easily set up a wired network with 6 networking ports
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Management capability provides control over setup and configuration of your network
- Built-in power supply to ensure all components are being supplied with accurate voltage
Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: CLFE4+2SMS[POE](C,U)
Brand Name: ComNet
Form Factor: Standalone
Manufacturer: ACRE
Product Name: 10/100TX Drop/Insert/Repeat 4TX/2EX Self-Managed Switch with PoE+
Manufacturer Part Number: CLFE4+2SMSPOEC
Manufacturer Website Address: http://www.acre-co.com
Package Contents:
- 10/100TX Drop/Insert/Repeat 4TX/2EX Self-Managed Switch with PoE+
- DC Plug-in Power Supply
Limited Warranty: Lifetime
