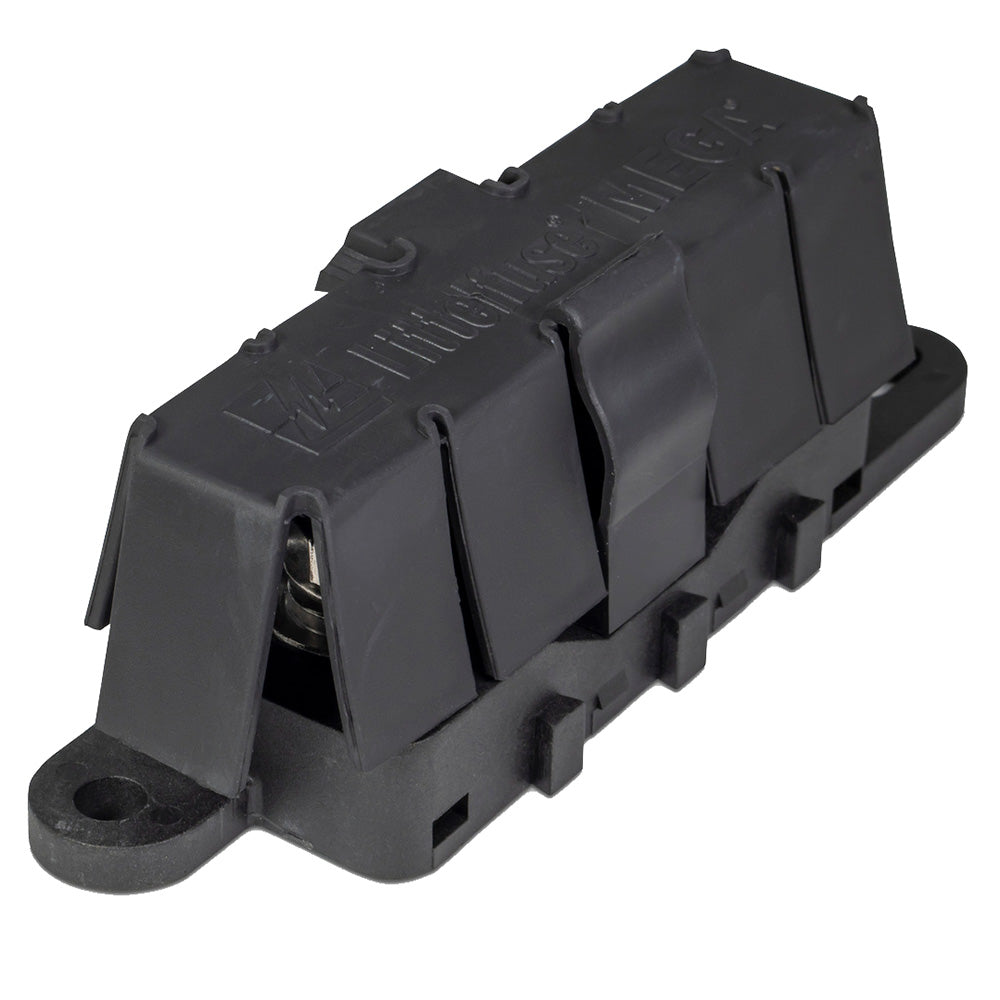

MEGA Flex Series - 32V Bolt Down Fuse Holder for Fuses Up To 500 Amps
The MEGA Flex Series 32V Bolt-Down Fuse Holder makes it simple to install high-amp fusing thanks to its flexible cover. The UL 94 V-0 rated cover features 6 different positions for cable entry, plus its flexibility accommodates large wire sizes and ring terminal stack up. Designed for MEGA fuses up to 500 amps, this bolt-down fuse holder also has a dovetail feature on the sides that allows you to connect multiple MEGA Flex Series fuse holders to create a fused high-power distribution block. This fuse holder (02981028-BP) includes stainless steel M8 studs, hex nuts, and split washers.
Features:
- Blister packaging promotes the easy retail display
- Compatible with MEGA high-current bolt-down fuses up to 500 amps
- Black or red flexible cover allows cable entry at 6 different locations, simplifying installation and accommodating large wire sizes and ring terminal stack up
- The dovetailing feature lets you connect multiple MEGA Flex Series fuse holders together to create a fused high-power distribution block (busbars for multi-fuse applications are sold separately)
- Slots molded into the base enable secure tie-wrap mounting
- Bolt-down fuse holder base features an M6 mounting hole and an M6 slot measuring 6mm long

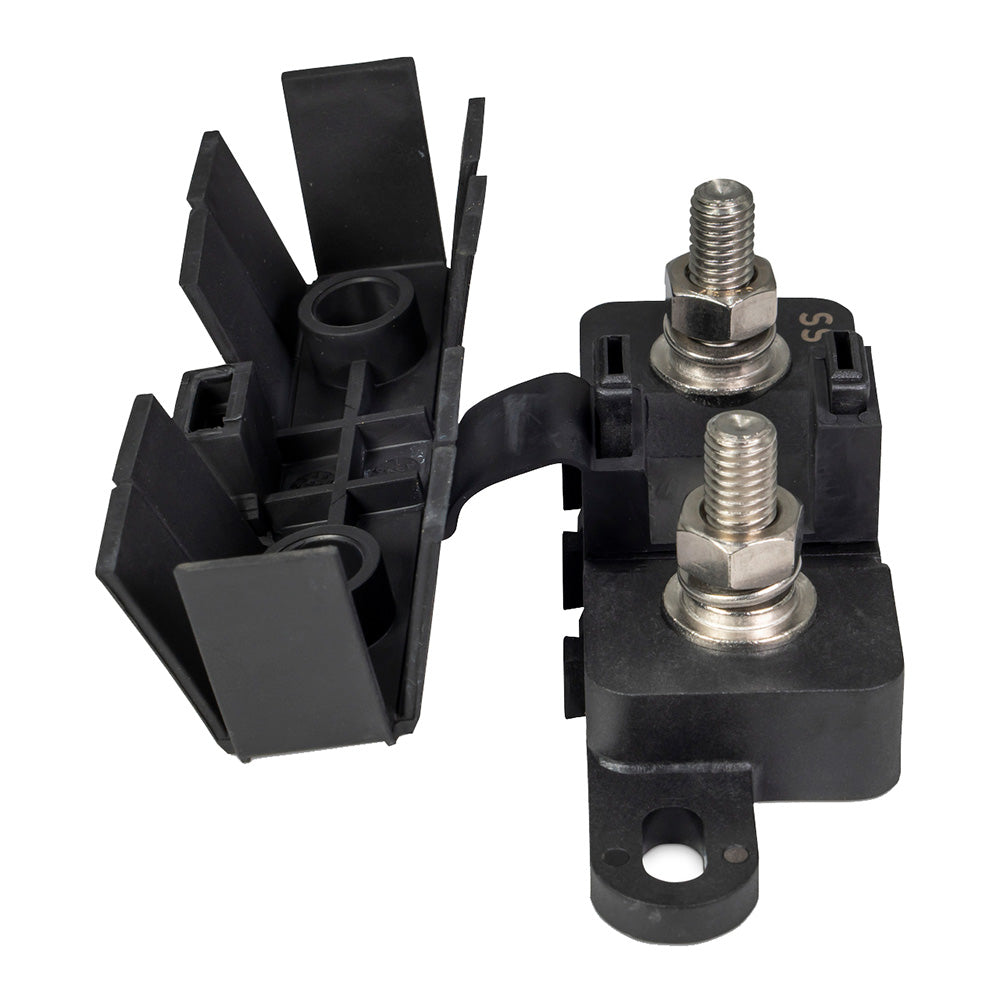

- Includes stainless steel M8 studs, hex nuts, and split washers
- The flexible cover has a UL 94 V-0 flammability rating
Applications:
- Battery and Alternator Connections
- High-Current Circuit Protection
- Electric Construction Equipment
*Fuses not included
