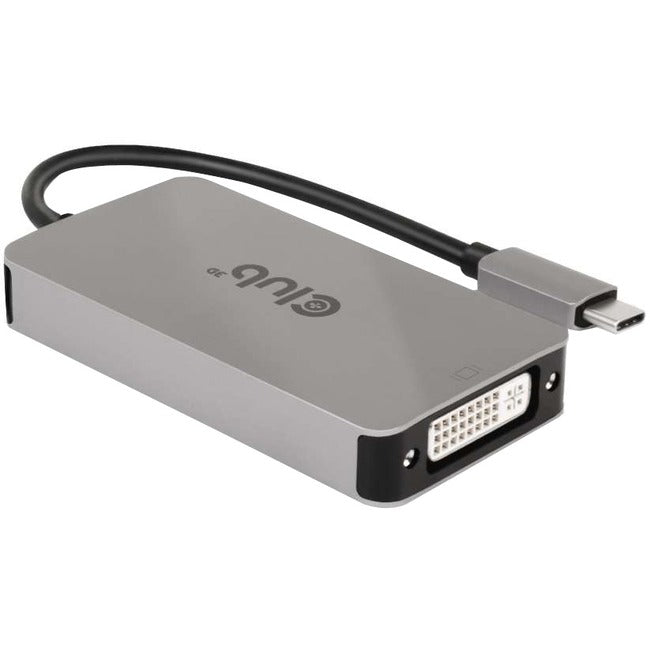

Club 3D DVI-D/USB-C Video Adapter
USB3.2 Gen1 Type-C to Dual Link DVI-D HDCP OFF version Active Adapter M/F for Apple Cinema Displays

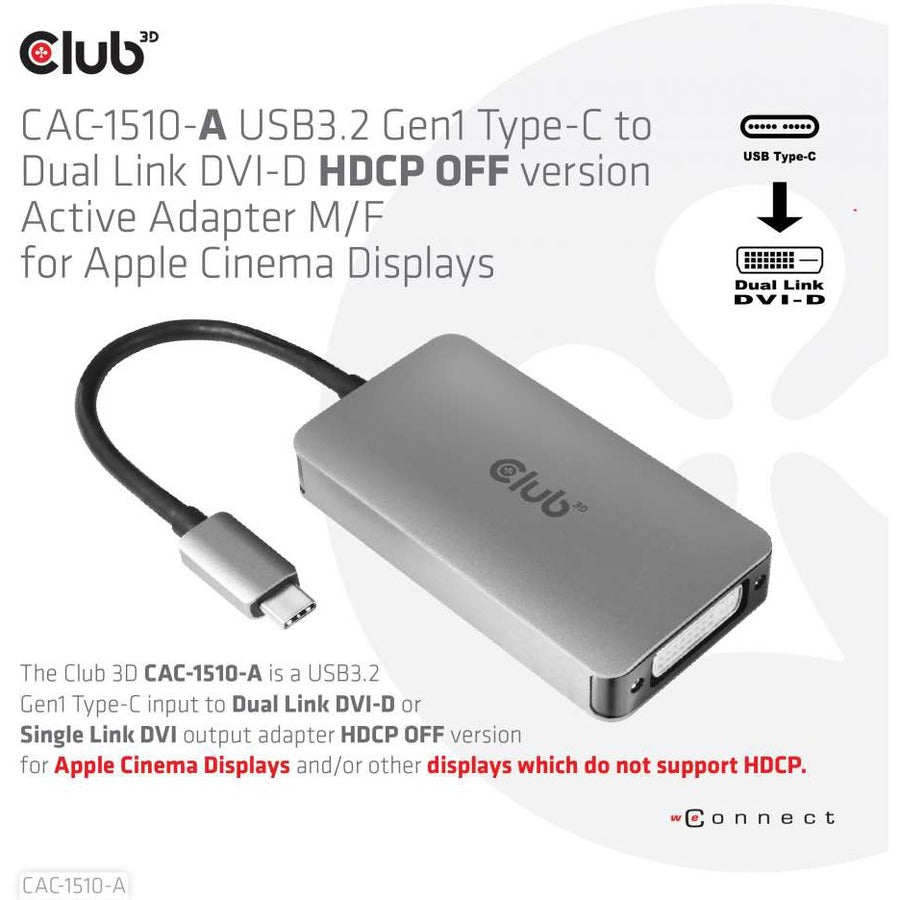

The Club 3D CAC-1510-A is a USB3.2 Gen1 Type-C input to Dual Link DVI-D or Single Link DVI output adapter HDCP OFF version for Apple Cinema Displays or other displays which do not support HDCP.
The USB3.2 Gen1 Type-C to Dual Link DVI or Single Link DVI Adapter is the easiest solution for connecting your USB3.2 Gen1 Type-C source device featuring DisplayPort™ Alternate Mode to a DVI enabled Monitor or Projector.
This adapter is compact and highly portable. Powered by the USB C port, the adapter requires no external power and is ideal for use with the latest notebooks and Ultrabooks.
Supports: Dual Link DVI-D highest resolution of 3840 x 2160 at 30Hz.
Supports: Deep Color 12 Bit
Supports: 268.5 MHz
Compatibility

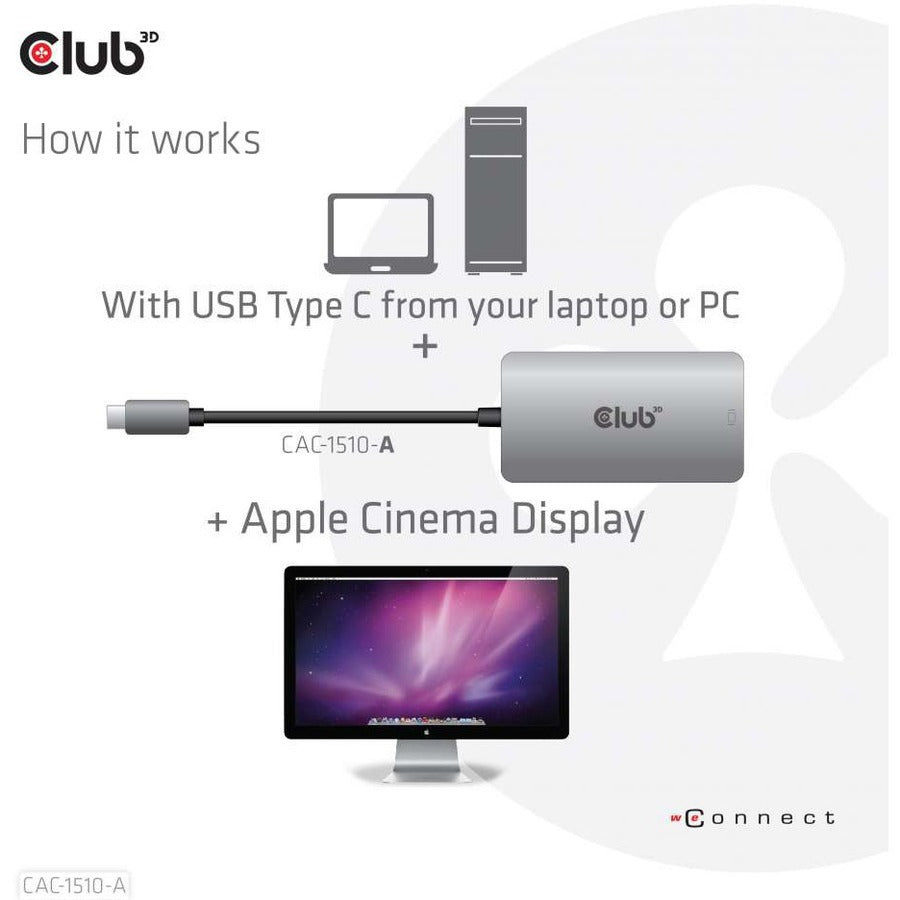

It is compatible with new Apple MacBook Pro, MacBook, and other USB3.2 Gen1 Type-C supported devices with support for DisplayPort™ Alternate Mode over USB C.
Please refer to your device's user manual to confirm the specification and functionality of the USB3.2 Gen1 Type-C port.
- Special support for Apple Cinema Displays
- Reversible USB Type-C connector
- Compliant to Dual Link DVI-D Specifications

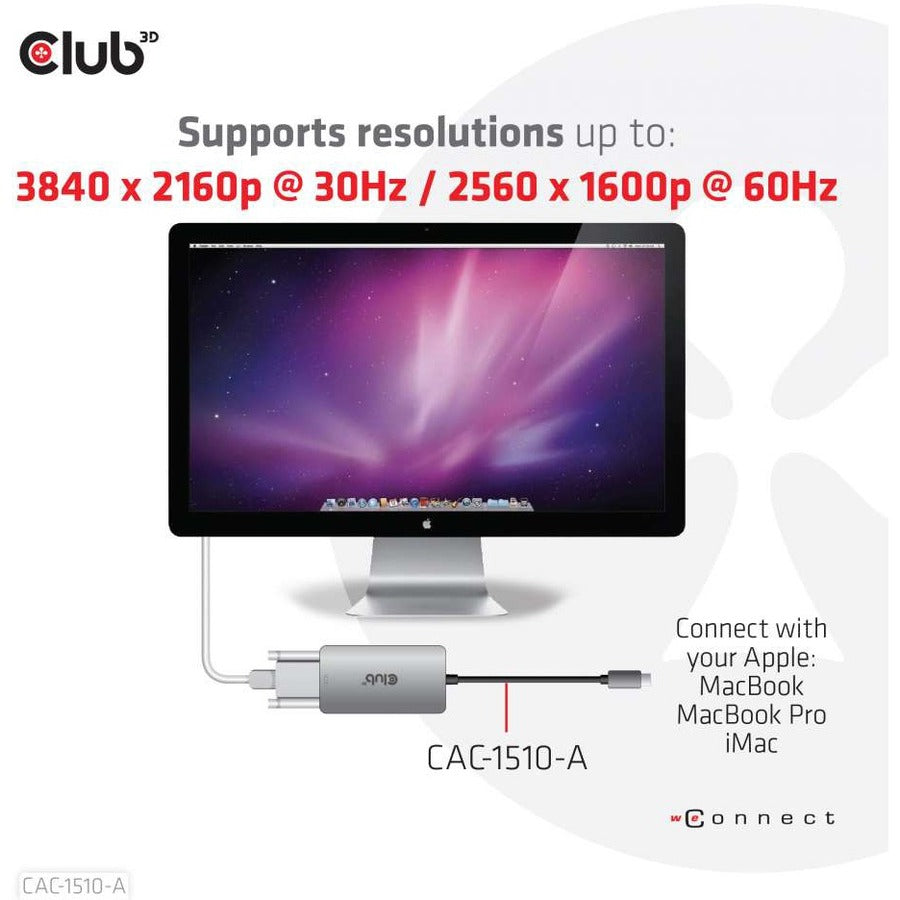

- Supports resolutions up to 3840 x 2160p @ 30Hz
- Supports resolutions up to 2560 x 1600p @ 60Hz
- Supports deep Color 12 Bit
- Supports 268.5Mhz Bandwidth
Product Type: Video Adapter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Brand Name: Club 3D
Length: 9.6"
Manufacturer: Club 3D
Product Name: DVI-D/USB-C Video Adapter
Manufacturer Part Number: CAC-1510-A
Manufacturer Website Address: http://www.club-3d.nl
Weight (Approximate): 2.33 oz
