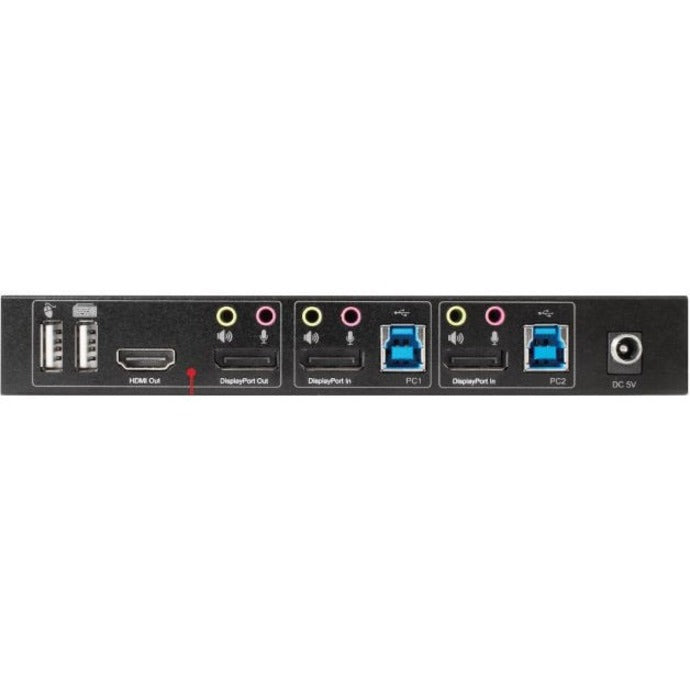

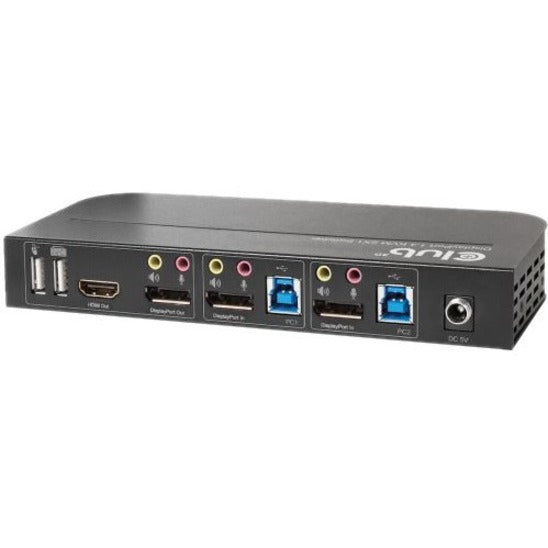

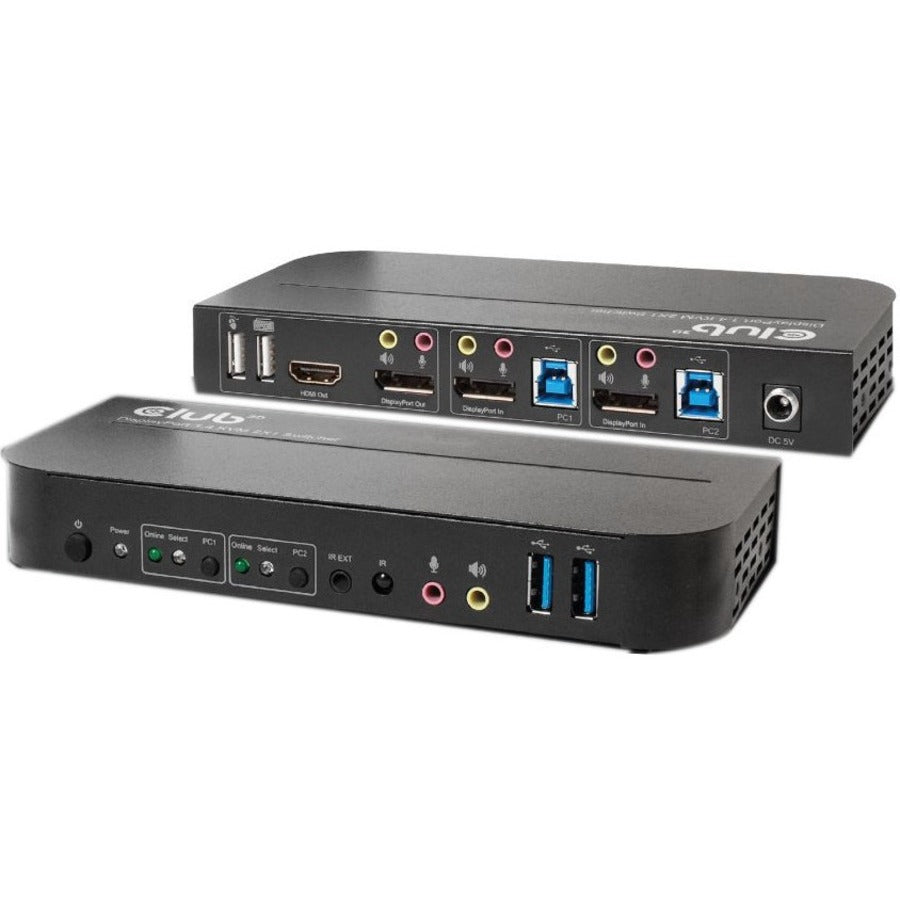

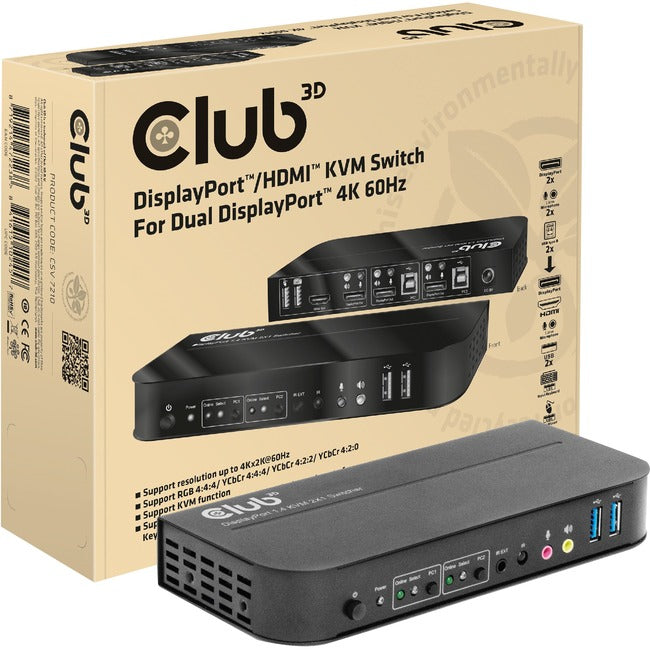

This 4K DisplayPort KVM switch is perfect for professionals who need seamless control over multiple computers with dual high-resolution displays. Our CLUB 3D CSV-7210 delivers:
-
Dual DisplayPort KVM functionality with native 4K 60Hz support
-
HDMI 2.0 KVM switch compatibility for versatile connectivity
-
DisplayPort 1.4 technology ensuring maximum bandwidth
-
Multi-monitor KVM solution for enhanced productivity workflows
Key Features
-
Dual DisplayPort KVM supporting two 4K displays simultaneously
-
DisplayPort 1.4 and HDMI 2.0 input compatibility
- Native 4K 60Hz resolution support without compression
-
Desktop KVM switches design with hotkey switching
- Seamless switching between 2 computers with shared peripherals
-
Multi-monitor KVM with independent display control
- USB 3.0 hub for high-speed peripheral connectivity
- Audio switching with microphone and speaker support
Technical Specifications
| Manufacturer |
CLUB 3D |
| Model Number |
CSV-7210 |
| Type |
4K DisplayPort KVM Switch |
| Video Inputs |
DisplayPort 1.4 and HDMI 2.0
|
| Display Support |
Dual monitors up to 4K 60Hz each |
| Maximum Resolution |
4096 x 2160 @ 60Hz per display |
| USB Ports |
4 x USB 3.0 ports for peripherals |
| Audio Support |
3.5mm microphone and speaker jacks |
| Switching Method |
Hotkey combinations and push button |
| Power Supply |
External 12V adapter included |
| Compatible Systems |
Windows, Mac, Linux with DisplayPort or HDMI output |
Frequently Asked Questions
Q: Can this DisplayPort KVM switch support two 4K monitors at 60Hz simultaneously?
A: Yes, the CLUB 3D CSV-7210 supports dual DisplayPort KVM functionality with native 4K 60Hz on both displays simultaneously, utilizing DisplayPort 1.4 bandwidth for uncompressed video.
Q: Is this KVM switch compatible with mixed video inputs?
A: Absolutely. This 4K DisplayPort KVM switch accepts both DisplayPort 1.4 and HDMI 2.0 inputs, allowing you to connect computers with different video output types while maintaining 4K 60Hz performance.
Q: How does switching work between the two connected computers?
A: The multi-monitor KVM offers convenient switching via hotkey combinations or the front panel button, allowing instant transition of both displays, USB peripherals, and audio between connected systems.
Q: What peripherals can I connect to this dual monitor KVM switch?
A: The switch includes 4 USB 3.0 ports supporting keyboards, mice, webcams, and other peripherals, plus dedicated 3.5mm jacks for microphone and speaker connectivity, making it a complete desktop KVM switches solution.
4K DisplayPort KVM switch with dual monitor support and HDMI 2.0. CLUB 3D CSV-7210.
