Cisco UCS C240 M6 LFF Rack Server - Server - rack-mountable 2U - 2-way - no CPU up to - RAM 0 GB - SAS - hot-swap 3.5 bay(s) - no HDD - G200e - Gigabit Ethernet - monitor: none"
-
Robust scalability
Designed for growth, the Cisco UCS C240 M6 LFF Rack Server supports 2-way server scalability, allowing for significant expansion. With 32 empty DIMM slots for DDR4 SDRAM, it's ready to meet the demands of increasing workloads.
-
Flexible storage options
Equipped with 12 front accessible, hot-swap bays and additional 2 internal bays, all supporting 3.5" drives, this server offers extensive storage flexibility. The hot-swap feature ensures minimal downtime, enhancing maintenance efficiency.
-
Comprehensive connectivity
This server boasts a wide range of connectivity options including Gigabit and 10Gigabit Ethernet LAN ports, USB 3.0, VGA, and dedicated management interfaces, ensuring seamless integration into any network infrastructure.
-
Advanced management features
Featuring Cisco Integrated Management Controller and Intel Baseboard Management Controller (BMC), it offers sophisticated remote management capabilities, simplifying server administration tasks.
-
Efficient power redundancy
With a 1+1 power redundancy scheme and support for hot-plug power supplies, the server ensures continuous operation, minimizing the risk of downtime in critical environments.
The UCS C240 M6 LFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the addition of the 3rd Gen Intel Xeon Scalable Processors (Ice Lake), 16 DIMM slots per CPU for 3200-MHz DDR4 DIMMs with per DIMM capacity points up to 256 GB. Up to 8 TB total memory (for 2 CPUs) is available if the memory slots are populated with 32 x 256 GB DDR4 DIMMs1 or 16 x 256 GB DDR4 DIMMs and 16 x 256 GB Intel Optane Persistent Memory Modules (PMEMs). The server accommodates up to 12 front facing SAS-only LFF drives, up to 4 mid-plane SAS-only LFF drives, and up to 4 rear-facing SFF drives (SAS or SATA or NVMe).

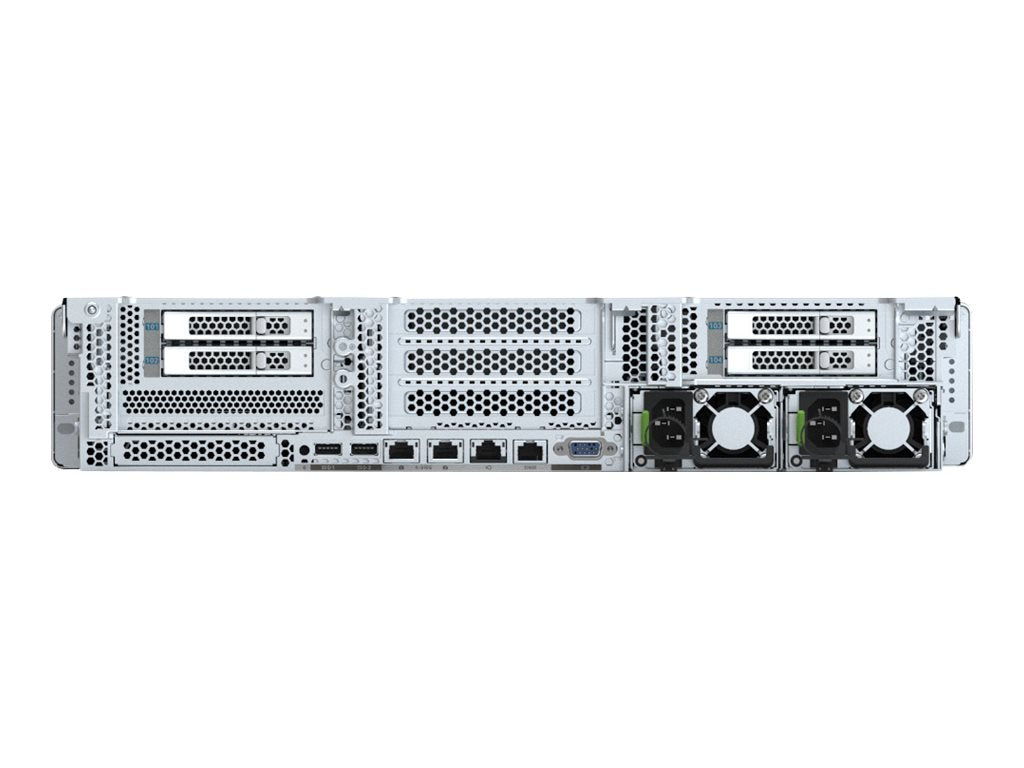

The server is equipped with two rear storage risers (2 drive slots each) and one rear PCIe riser (3 PCIe slots). The server also provides a riser slot for a 12G SAS RAID controller with SuperCap for write cache backup, or for a SAS HBA. The chassis is equipped with six fans and two power supplies. The C240 M6 server includes a dedicated modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot, in addition to 2 x 10 Intel x550 10Gbase-T embedded (on the motherboard) LOM ports.
The Cisco UCS C240 M6 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
- 2-way server scalability with upgradable CPU options
- 32 DIMM slots supporting DDR4 SDRAM for extensive memory capacity
- 12 hot-swap 3.5" bays for flexible, high-capacity storage
- Dual Gigabit and 10Gigabit Ethernet ports for high-speed networking
- Integrated management controllers for remote server management
