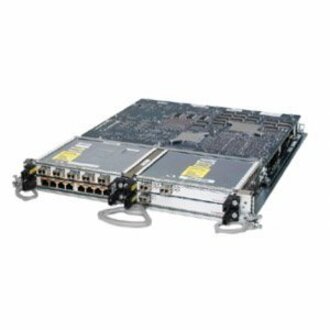

Cisco SPA Interface Processor-601 - 4 x Port Adapter
The Cisco SPA Interface Processor-601 provides a common forwarding and queuing engine responsible for packet classification, forwarding decisions, packet queuing, and accounting without compromising the performance-Each SIP has two forwarding engines, one for ingress and one for egress, allowing the user to implement multiple features and QoS policies at the incoming traffic, independently from the features and the QoS policies applied at the egress interfaces. The multicast replication is done by the egress forwarding engine, hence a very scalable multicast implementation with a native and built-in security and QoS features for multicast flows.
- Cisco XR 12400 Series
- Cisco 12400 Series
- Cisco XR 12800 Series
- Cisco 12800 Series
Supported SPAs:
- SPA-8XCHT1/E1
- SPA-2XT3/E3
- SPA-4XT3/E3
- SPA-2XCT3/DS0
- SPA-4XCT3/DS0
- SPA-1XCHSTM1/OC3
- SPA-4XOC3-POS-V2
- SPA-8XOC3-POS
- SPA-2XOC12-POS
- SPA-4XOC12-POS
- SPA-8XOC12-POS
- SPA-2XOC48POS/RPR
- SPA-OC192POS-VSR
- SPA-OC192POS-LR
- SPA-OC192POS-XFP
- SPA-8XFE-TX
- SPA-2x1GE
- SPA-2X1GE-V2
- SPA-5X1GE
- SPA-5X1GE-V2
- SPA-10X1GE
- SPA-10X1GE-V2
- SPA-1XTENGE-XFP
- SPA-1X10GE-L-V2
- SPA-IPSEC-2G-2
