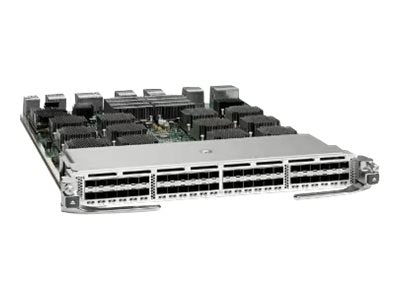

Cisco Nexus 7700 F2-Series Enhanced 48-Port Fiber 1 and 10 Gigabit Ethernet Module - Expansion module - Gigabit Ethernet / 10Gb Ethernet / FCoE SFP+ x 48 - refurbished - for Nexus 7700, 7700 18-Slot, 7710
- Scriptable command-line interface (CLI)
- Cisco Data Center Network Manager (DCNM) web services
- Tool Command Language (TCL) interpreter
- Cisco Embedded Event Manager (EEM)
- Configurable template-based queuing modes
- Enables fairness when one or more destinations is congested and provides support for lossless unified fabric
- Deficit-Weighted Round-Robin (DWRR)
- Priority-based flow control (PFC)
- Enhanced transmission selection (ETS)
- Data Center Bridging Exchange (DCBX)
- Virtual SANs (VSANs)
- Inter-VSAN Routing (IVR)
- PortChannels (up to 16 links)
- SAN trunking
- Storage VDC
The Cisco Nexus 7000 series switches are the foundation of the Cisco Unified Fabric solution. Designed to meet the requirements of mission-critical data centers, these switches deliver exceptional availability, outstanding scalability, and the proven and comprehensive Cisco NX-OS software data center switching feature set.
The Cisco Nexus 7700 platform is the latest extension to the Cisco Nexus 7000 series modular switches. With more than 83 terabits per second (Tbps) of overall switching capacity, the Cisco Nexus 7700 platform delivers the high-capacity 10, 40, and 100 Gigabit Ethernet ports in the industry, with up to 768 native 10-Gbps ports, 384 40-Gbps ports, and 192 100-Gbps ports. This high system capacity is designed to meet the scalability requirements of the largest cloud environments.
The Cisco Nexus 7700 switches have operation and feature consistency with the existing Cisco Nexus 7000 series switches, using a common system architecture, the same application-specific integrated circuit (ASIC) technology, and the same proven Cisco NX-OS software releases.
-
Robust capacity
Designed to meet the demands of high-density networking, the Cisco Nexus 7700 F2-Series Module supports up to 32,000 IPv4 routes, 16,000 IPv6 routes, 4,096 virtual interfaces (VLANs), and 16,000 adjacency and ACL entries, ensuring comprehensive coverage and security for a wide range of network architectures.
-
High performance
With a forwarding performance of up to 720 million packets per second (Mpps), this module delivers the speed and reliability needed for critical network operations, making it a suitable solution for environments requiring high throughput and minimal latency.
-
Advanced connectivity
Featuring 48 SFP+ ports, the module offers flexible connectivity options for 1 and 10 Gigabit Ethernet, alongside support for Fiber Channel over Ethernet (FCoE), providing a versatile platform for consolidating data and storage networks.
-
Enhanced environmental resilience
Operating within a wide range of temperatures from 0°C to 40°C and humidity levels from 5 to 90% (non-condensing), the module is built to sustain performance in diverse environmental conditions, ensuring reliability and longevity.
-
Comprehensive standards compliance
The module adheres to a broad spectrum of standards including IEEE 802.1Qaz and IEEE 802.1Qbb for networking, alongside numerous international safety and environmental certifications, ensuring compatibility and safe operation within global IT infrastructures.
