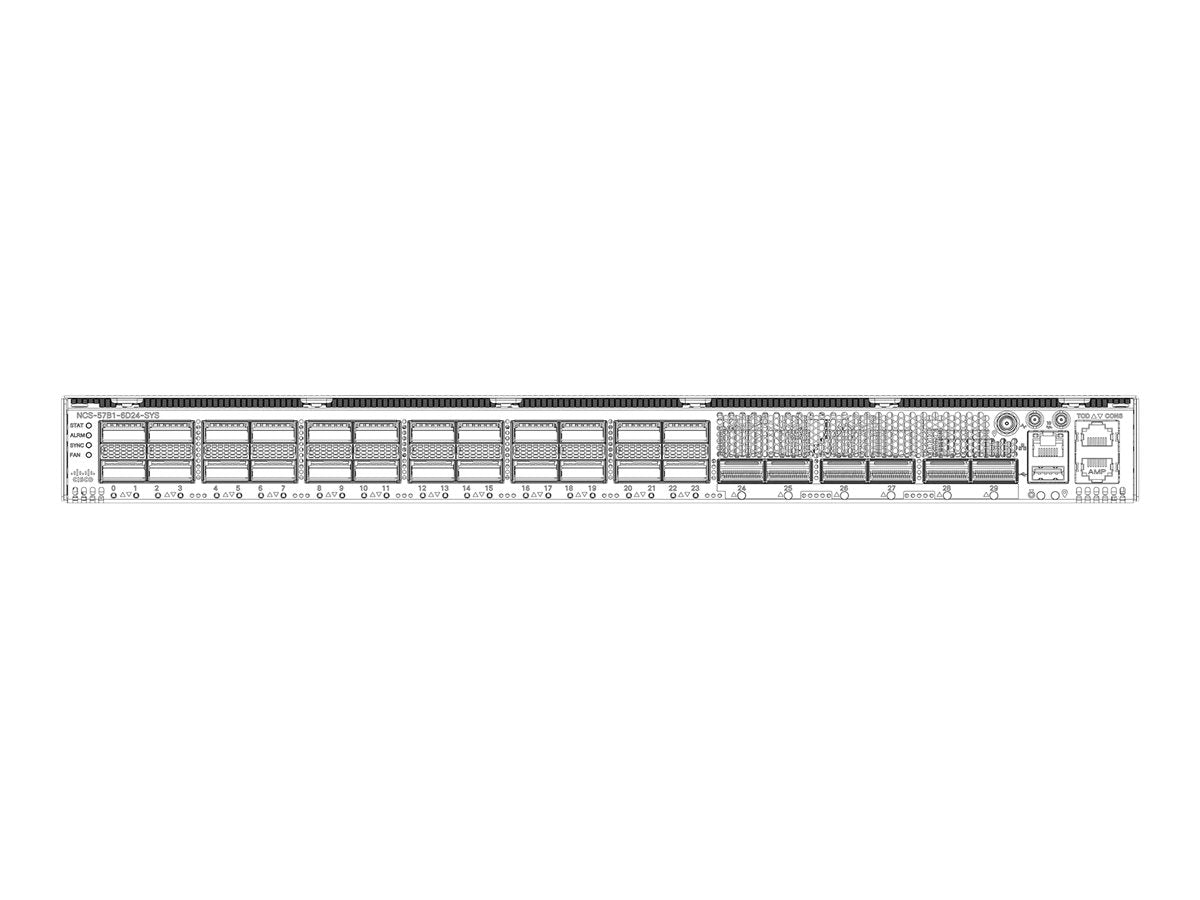

Cisco Network Convergence System 57B1 Fixed Base - Router 40GbE, 100GbE, 25GbE, 400GbE - front to back airflow - rack-mountable
-
Robust security
Equipped with Secure Shell (SSH), TACACS+, and Media Access Control Security (MACsec), the Cisco Network Convergence System 57B1 Fixed Base ensures a secure networking environment, safeguarding against unauthorized access and threats.
-
High-capacity performance
With a throughput capacity of 4.8 Tbps and the ability to scale up to 2.7M FIB entries, this router is designed to handle extensive data traffic, ensuring efficient and reliable network performance.
-
Advanced networking features
Supports a wide range of protocols and technologies including IPv4, IPv6, BGP, OSPFv2, OSPFv3, and MPLS, alongside features like Quality of Service (QoS), VLAN trunking, and Ethernet over MPLS (EoMPLS), making it versatile for various networking needs.
-
Enhanced connectivity options
Offers a diverse range of interface options including 400Gb Ethernet, 100Gb Ethernet, and management ports, providing flexible and high-speed connectivity solutions for different network configurations.
-
Efficient design
The 1 rack unit size combined with front to back airflow, hot-swappable 5+1 fans, and a dual hot-plug power supply system ensures a compact, efficient, and reliable operation, suitable for high-density networking environments.
With global data center and public/private cloud network traffic growing at more than 25 percent annually, network providers and hyperscalers alike are rapidly adopting 400GE as the basis for their mass-scale core and aggregation networks. The Cisco Network Convergence System 5700 Series builds on the success of previous Cisco NCS 5500 fixed systems by combining the latest in forwarding ASIC design with the advanced innovation of Cisco IOS XR7.
The Cisco NCS-57B1 Series is powered by an industry-leading, carrier-class 64-bit version of IOS XR7 (XR7) NOS designed on operational efficiency, optimized utilization, and service agility (evolved programmable network). Cisco IOS XR Software offers rich features such as iPXE boot, auto provisioning, and native support for third-party application hosting, machine-to-machine interface, telemetry, and flexible software package delivery.
- Secure networking with SSH, TACACS+, and MACsec
- 4.8 Tbps throughput for high-capacity performance
- Supports advanced networking features including QoS and VLAN trunking
- Multiple interface options for flexible connectivity
- Compact 1U design with efficient cooling system
