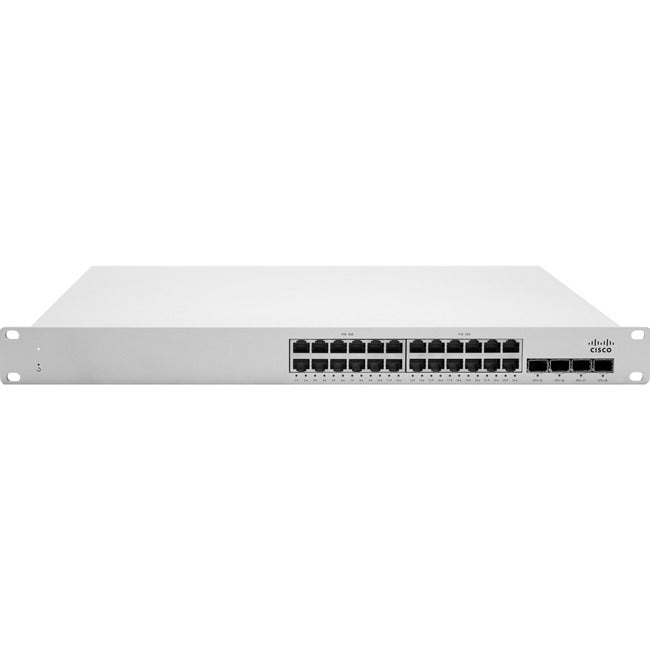

The Cisco Meraki MS225-24 L2 Stackable Cloud Managed 24 Port Gigabit Ethernet Switch is perfect for branch offices, distributed enterprises, and organizations that need simplified network management with enterprise-grade performance and cloud-based administration. Our solution delivers:
-
Layer-2 switching that provides reliable network connectivity with advanced features
-
Stackable design enabling seamless network expansion and high availability
-
24 port gigabit connectivity supporting high-speed data transmission for modern business applications
-
Branch networking optimization with zero-touch provisioning and centralized cloud management
Key Features
-
24 gigabit ethernet ports providing high-speed connectivity for all network devices
-
Cloud-based management with Meraki Dashboard for simplified administration
-
Stackable architecture supporting up to 8 switches in a single logical unit
-
Zero-touch provisioning enabling remote deployment and configuration
-
Advanced security features including 802.1X authentication and access control
-
Quality of Service with traffic prioritization and bandwidth management
-
VLAN support for network segmentation and security
-
Lifetime warranty with next-business-day hardware replacement
Technical Specifications
| Manufacturer |
Cisco - Meraki |
| Model Number |
MS225-24-HW |
| Type |
24-Port L2 Stackable Cloud Managed Gigabit Switch |
| Access Ports |
24 x 10/100/1000BASE-T ports |
| Uplink Ports |
4 x 1G SFP ports |
| Stacking Ports |
2 x 10G SFP+ FlexStack ports |
| Layer 2 Features |
VLAN, STP/RSTP/MSTP, LACP |
| Switching Capacity |
56 Gbps |
| Forwarding Rate |
41.67 Mpps |
| MAC Address Table |
16,000 entries |
| Buffer Memory |
2 MB |
| VLAN Support |
4,000 VLANs (802.1Q) |
| QoS Queues |
8 priority queues |
| Stack Capacity |
Up to 8 switches (160 Gbps stack bandwidth) |
| Management |
Meraki Cloud Dashboard, SNMP, REST API |
| Security Features |
802.1X, MAC-based access control, DHCP snooping |
| Monitoring |
Real-time visibility, traffic analytics, alerts |
| Auto-Negotiation |
10/100/1000 Mbps auto-sensing |
| Flow Control |
IEEE 802.3x full-duplex |
| Jumbo Frames |
Up to 9,216 bytes |
| Power Consumption |
25W maximum |
| Power Supply |
External 12V DC adapter |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-20°C to 70°C (-4°F to 158°F) |
| Humidity |
10% to 90% non-condensing |
| Dimensions |
17.3" x 10.75" x 1.73" (440 x 273 x 44 mm) |
| Weight |
7.1 lbs (3.2 kg) |
| Mounting |
1U rack-mount, desktop placement |
| MTBF |
659,000 hours |
| Compliance |
FCC, CE, UL, Energy Star |
| Standards |
IEEE 802.3, 802.3u, 802.3ab, 802.1Q, 802.1p, 802.1X |
| Warranty |
Limited lifetime hardware warranty |
| Compatible Systems |
Branch offices, distributed enterprises, campus networks, small to medium businesses |
Frequently Asked Questions
Q: How does Layer-2 switching benefit branch office deployments?
A: The Cisco Meraki MS225-24 Layer-2 switch provides essential network connectivity with advanced features like VLAN segmentation, spanning tree protocol, and quality of service. This Layer-2 functionality ensures reliable data forwarding, broadcast domain control, and network performance optimization while maintaining simplicity for branch office environments without requiring complex routing configurations.
Q: What advantages does the stackable design provide for growing networks?
A: The stackable architecture allows up to 8 MS225-24 switches to function as a single logical unit with 160 Gbps stack bandwidth. This stacking capability enables seamless network expansion, centralized management, and high availability through redundant stack links. Failed switches are automatically bypassed, ensuring continuous network operation while simplifying administration across the entire stack.
Q: How does 24-port gigabit connectivity enhance business productivity?
A: All 24 ports deliver gigabit ethernet speeds with 56 Gbps total switching capacity, providing ample bandwidth for modern business applications including video conferencing, cloud services, and file sharing. The 24 port configuration supports typical branch office requirements while 4 SFP uplink ports enable flexible fiber connections to core network infrastructure for high-speed WAN connectivity.
Q: What makes this switch ideal for branch networking environments?
A: Designed specifically for branch networking, the MS225-24 features zero-touch provisioning, cloud-based management, and automatic firmware updates. These capabilities enable IT teams to deploy and manage switches remotely without on-site technical staff. The Meraki Dashboard provides centralized visibility and control across all branch locations, simplifying network operations and reducing deployment costs.
Q: How does cloud management simplify network administration?
A: The Meraki cloud management platform provides intuitive web-based administration accessible from anywhere with internet connectivity. IT administrators can configure policies, monitor performance, troubleshoot issues, and deploy updates across multiple branch locations from a single dashboard. This eliminates the need for complex command-line interfaces while providing enterprise-grade network management capabilities.
Q: What security features protect branch office networks?
A: The switch includes 802.1X network access control, MAC-based authentication, and DHCP snooping to prevent unauthorized network access. Dynamic VLAN assignment enables automatic network segmentation based on user credentials or device types. The cloud management platform provides real-time security monitoring and alerting, helping identify and respond to potential threats quickly.
Q: How does the lifetime warranty benefit long-term operations?
A: Cisco Meraki provides a limited lifetime hardware warranty with next-business-day replacement service, ensuring minimal downtime in case of hardware failure. This warranty includes telephone technical support and access to software updates, providing peace of mind for long-term network investments while reducing total cost of ownership for branch office deployments.
Cisco Meraki MS225-24 L2 stackable cloud managed 24-port gigabit ethernet switch designed for simplified branch networking with enterprise performance.
