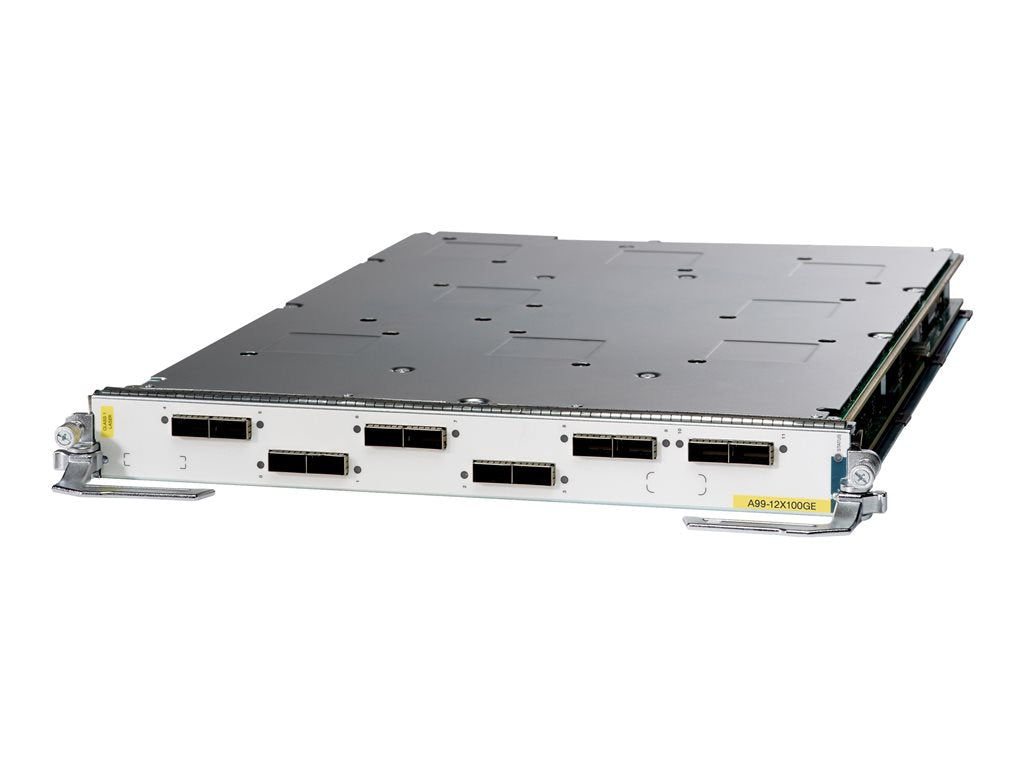

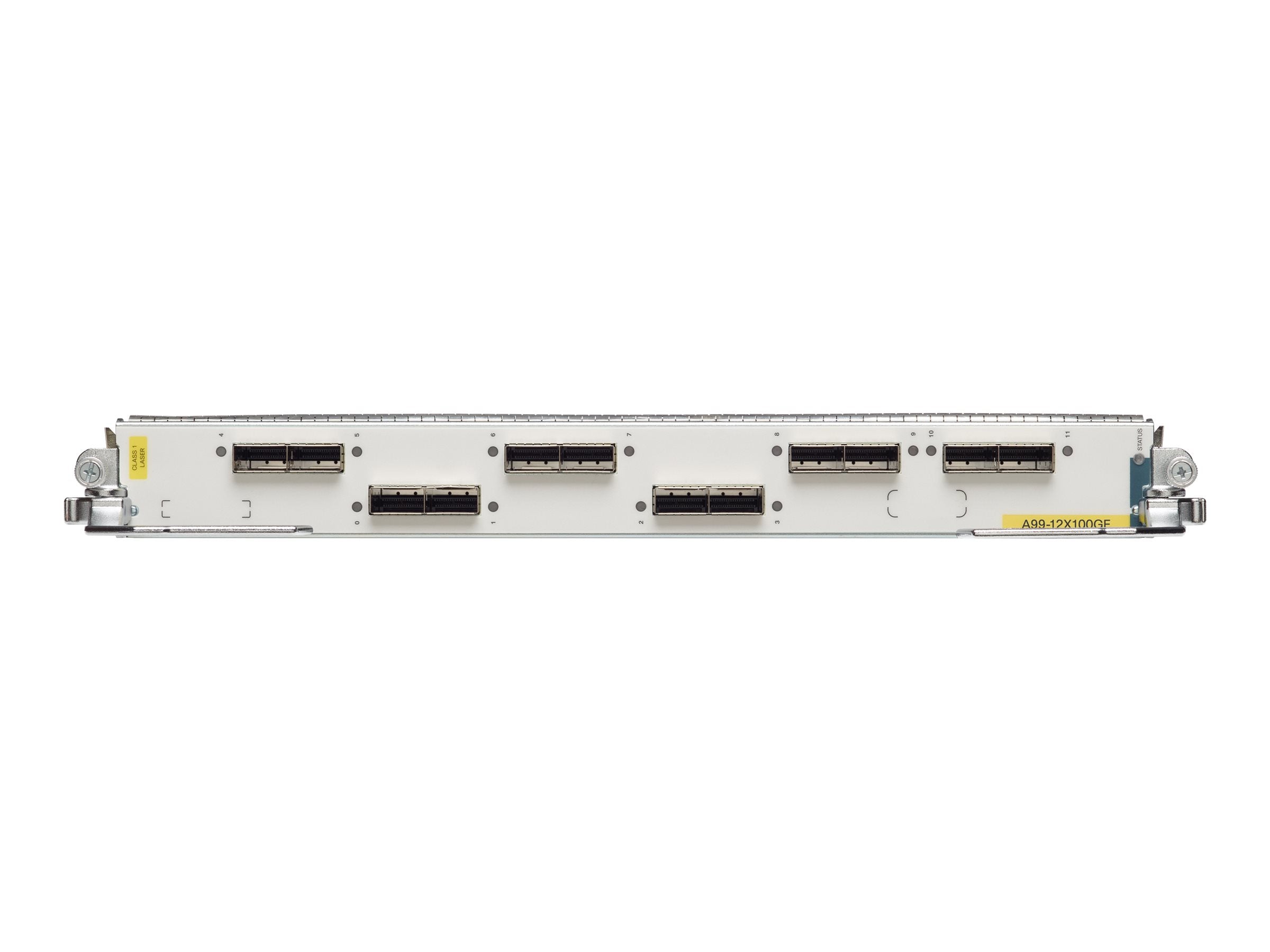

Cisco Line Card - Expansion module - 100 Gigabit QSFP28 x 12 - Consumption Model - for ASR 9904, 9910, 9912, 9922
Cisco ASR 9000 12-port 100 Gigabit Ethernet line cards deliver industry-leading high density and line-rate 100 Gigabit Ethernet ports to any slot of a Cisco ASR 9000 Series Aggregation Services Router. These high-capacity line cards provide carrier-class reliability and are designed to remove bandwidth bottlenecks in the network that are caused by a large increase in video on demand (VoD), IPTV, point-to-point video, Internet video, and cloud services traffic. A single 100 Gigabit Ethernet (GE) port can now replace large 10 Gigabit Ethernet link aggregation bundles to simplify network operations. These 12-port 100 Gigabit line cards use 100G Quad Small Form Factor Pluggable (QSFP) optics. They also provide the flexibility to break 100-GE ports into four 10-GE channels for dense, 48 10-GE channels per line card.
- QSFP 100G pluggable interfaces
- Evolutionary monitoring
- Carrier-class operations, administration, and maintenance (OAM)
