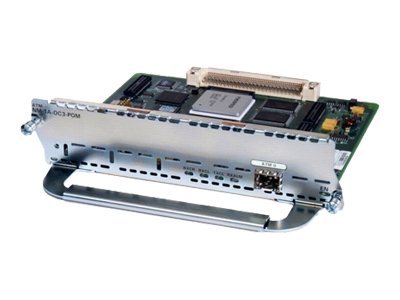

Cisco - Expansion module - ATM - OC-3c/STM-1 - refurbished - for Cisco 3825, 3825 V3PN, 3845, 3845 V3PN, 3925, 3925E, 3945, 3945E
- RFC 1577 support for routing over ATM
- RFC 1483 support for multiple encapsulations over ATM
- ATM Permanent Virtual Circuits (PVCs) and Switched Virtual Circuits (SVCs)
- LAN Emulation (LANE) 2.0
- Layer 2 per-VC queuing
- Up to 1024 simultaneous virtual circuits
- AAL5 ATM adaptation layer
- Permanent Virtual Paths (PVPs)
- ATM bandwidth (resource) manager
- Multiprotocol Over ATM (MPOA) client and server
- Multiprotocol Label Switching (MPLS)
- IETF Point-to-Point Protocol (PPP) over ATM
- Next Hop Resolution Protocol (NHRP)
- Interim Local Management Interface (ILMI)
The ATM OC-3 network module supports the ATM forum standard ATM Adaptation Layer 5 (AAL5) with the following ATM Quality of Service (QoS) traffic classes: Unspecified Bit Rate (UBR), UBR+, real-time Variable Bit Rate (VBR-rt), non-real-time VBR (VBR-nrt), Available Bit Rate (ABR), and Constant Bit Rate (CBR). Voice over IP (VoIP) and H.323 over ATM is supported over the WAN using the currently available onboard voice Digital Signal Processors (DSPs), analog voice and fax network modules, and voice interface cards.
The network module has modular optics supporting the Cisco Pluggable Optical Modules (POMs) and Cisco Small Form-Factor Pluggables (SFPs), simplifying the selection of network modules from six offerings to one. The SFPs support STM-1 framing standards over multimode, single-mode intermediate-reach, and single-mode long-reach fiber-optic interfaces. The module is a single-port module with LC-type connector. The single-mode SFPs combined with the ATM network module provide high-speed trunking for users with access to a fiber WAN, whereas multimode is ideal for connecting high-speed servers, switches, or hubs equipped with OC-3/STM-1 fiber connections.
-
Robust compatibility
Designed to seamlessly integrate with PC systems, this Cisco network adapter ensures a smooth and reliable connection for a wide range of networking needs.
-
Efficient connectivity
With its wired connectivity technology and support for ATM Data Link Protocol, this expansion module offers efficient and stable network connections, facilitating high-speed data transfers.
-
Durable design
Refurbished to meet rigorous standards, this network adapter operates effectively in a wide range of environmental conditions, from 5 - 95% humidity and temperatures between 0°C and 40°C, ensuring reliability and longevity.
-
Comprehensive compliance
Adhering to multiple compliance standards including AS/NZS 60950-1 and CISPR 22 Class A, this module meets strict regulatory requirements, ensuring a high level of safety and reliability for users.
-
Easy monitoring
Equipped with status indicators for alarm, receive, and transmit, this plug-in module allows for easy monitoring of network status, enhancing troubleshooting and maintenance processes.
