Cisco Digital CFP2 Pluggable Optical Module
Introduction
Cisco offers a comprehensive range of pluggable optical modules in the Cisco ONS pluggables portfolio. The wide variety of modules gives you flexible and cost-effective options for all types of interfaces. Cisco offers a range of GBIC, SFP, XFP, SFP+, CXP, CFP, Cisco CPAK, and QSFP+ pluggable modules. These small, modular optical interface transceivers offer a convenient and cost-effective solution for an array of applications in the data center, campus, metropolitan-area access and ring network, storage area network, and long-haul network. In recent times, with longer strides of innovation, Cisco has introduced analog DWDM CFP2 interfaces to the market. The latest addition to the Cisco portfolio pushes this boundary further with the introduction of the DIGITAL CFP2 PLUGGABLE OPTICAL MODULE.
Product Overview

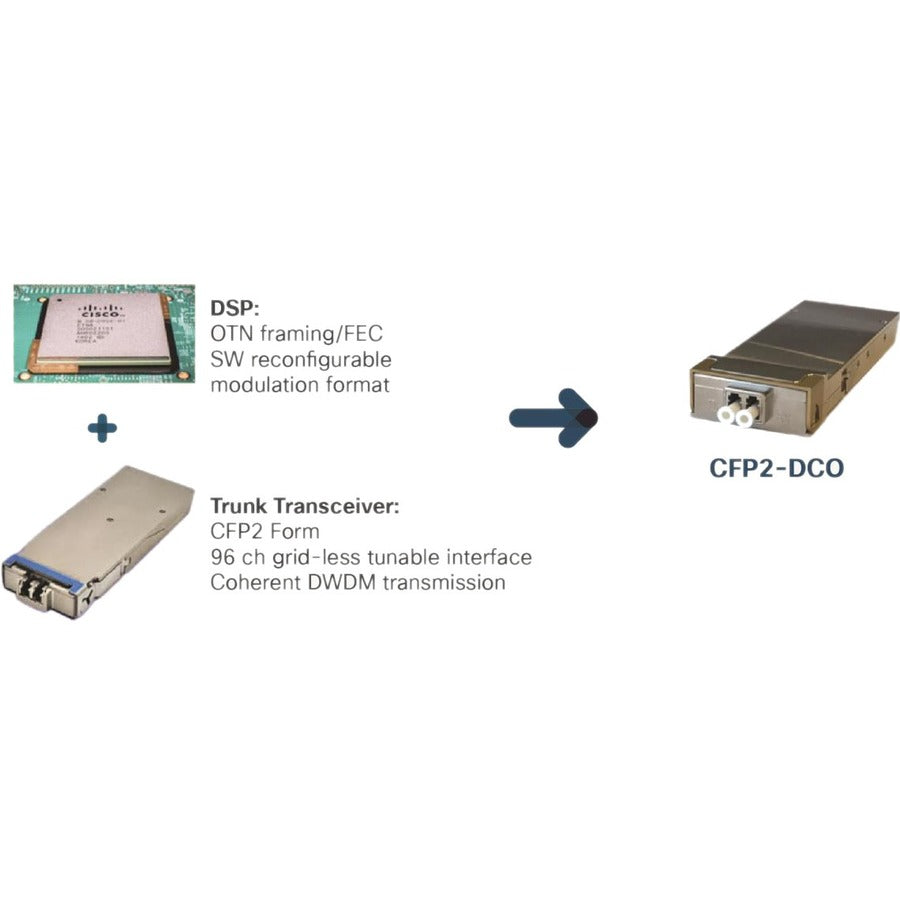

Cisco now offers a range of all new Digital CFP2 transceivers. Cisco already offers a range of analog CFP2 transceivers. With the analog version, the DSP (Digital Signal Processor) chip resided on the line card and was therefore custom to it, while the pluggable module only had transceiver capabilities. With the digital version of the same, both the DSP and the transceiver module reside in the pluggable itself. Therefore, this digital CFP2 pluggable that is more complete and compact, could be used across all platforms with the CFP2 interface.
Features and Benefits
This is a standard DWDM pluggable that adds on a myriad of values, each of which are listed below.
- The line rate and modulation scheme associated with the same are both software settable on the pluggable. One could choose between 100G QPSK, 200G 8-QAM, 200G 16-QAM on the same pluggable module by software actuation. This allows one to adopt different reach as required.
- QPSK schemes could offer up to 2000km of reach on standard G.652 Single mode fiber.
- 16-QAM schemes could offer up to 400km of reach on standard G.652 Single mode fiber.
- The compact pluggable formfactor itself allows you to leverage a pay-as-you-grow-model. Also noteworthy is the fact that, contrary to a analog CFP2 where one has to depend on the line card to accommodate the DSP, the digital CFP2 carries the same onboard and allows complete independence in the pay-as-you-grow model.
- Cisco also offers a pay-as-you-grow solution on the pluggable itself by licensing its capabilities. The base pluggable comes with an automatic 100G offering alone. Then you can procure a separate license for 200G at a later point in time as required. This brings down the cost of the pluggable day one and allows customer to purchase additional features only when required.
- When operated in 200G mode the pluggable consumes around 19W of power. This is state of the art in terms of power consumption specifications. Consequently, this offers considerable savings in OPEX.
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- For transmitting data at gigabit speed over hundreds of miles with little integrity loss, single-mode fiber optic is an ideal solution
- 200Gigabit Ethernet - Eases both bandwidth and management constraints
Product Type: CFP2
Brand Name: Cisco
Manufacturer: Cisco Systems, Inc
Product Name: Digital CFP2 Pluggable Optical Module
Manufacturer Part Number: CFP2-WDM-DET-1HL=
Manufacturer Website Address: http://www.cisco.com
Limited Warranty: 1 Year
